LEFN 212 2TB.H FKL

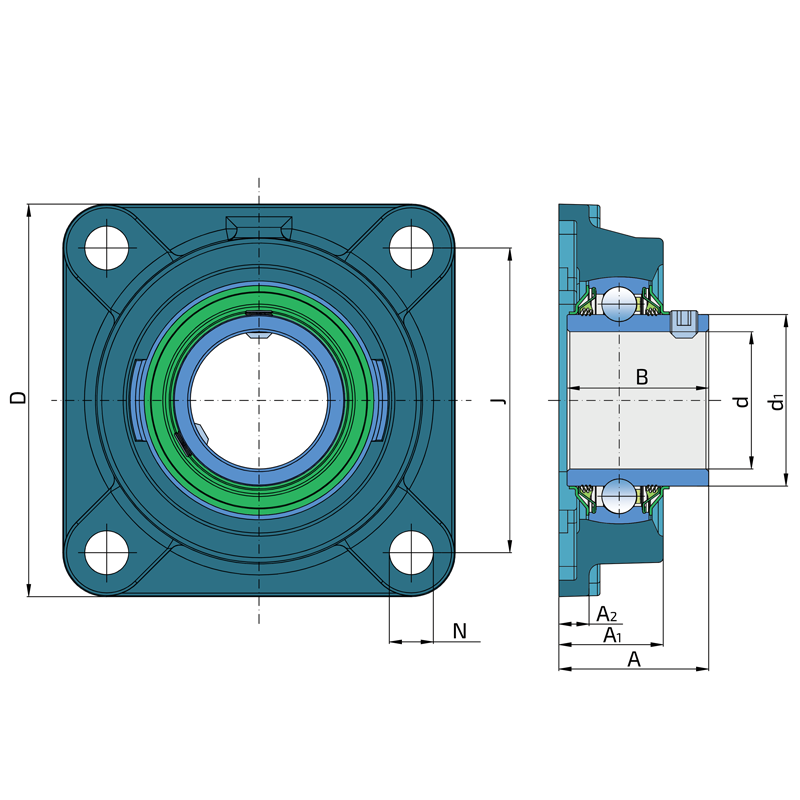

Technical datasheet:

d	Bore diameter	60
d1	Outer diameter inner ring	75.64
L	Total length	175
J	Distance between the holes	143
N	Hole diameter	19H13
A	Overall width	68.7
A1	Total housing width	48
A2	Housing flange thickness	15
B	Width inner ring	65.1
kg	Mass	4.27
Cdyn	Dynamic load rating	52
Co	Static load rating	36
Pu	Fatigue load limit	1.512

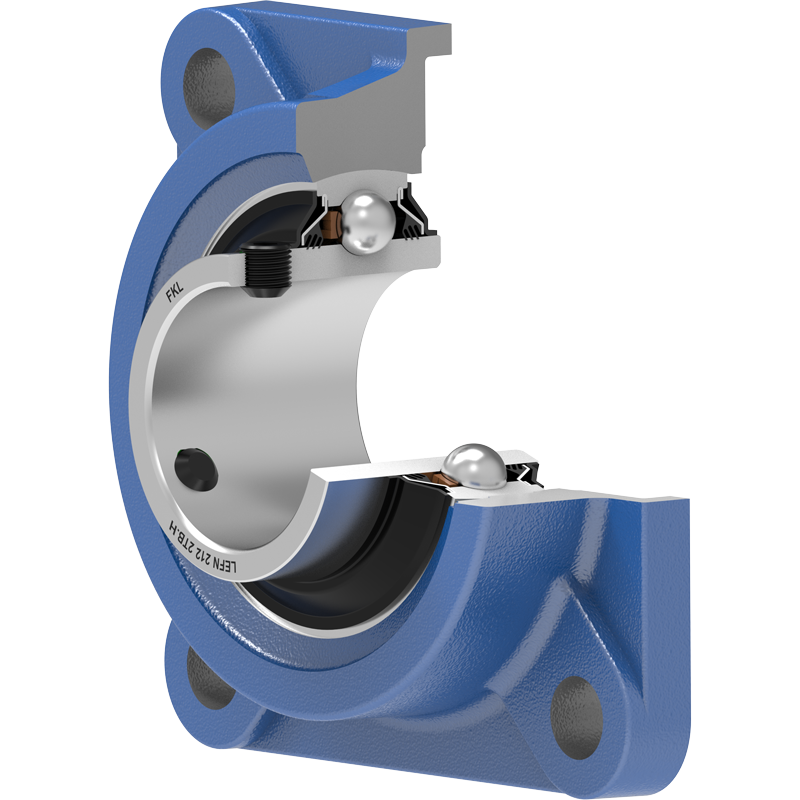

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
