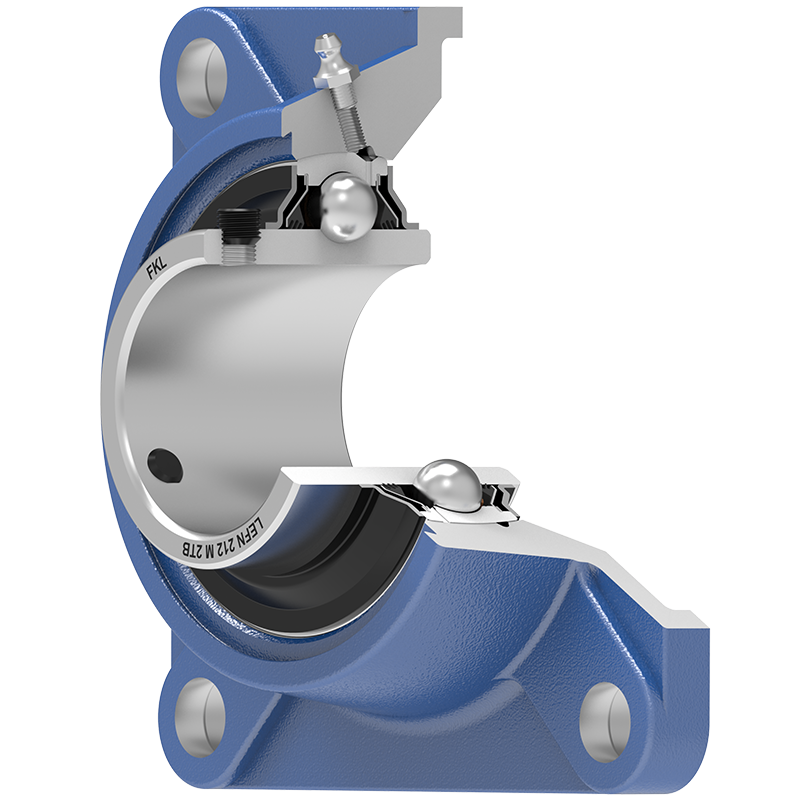

LEFN 212 M 2TB FKL

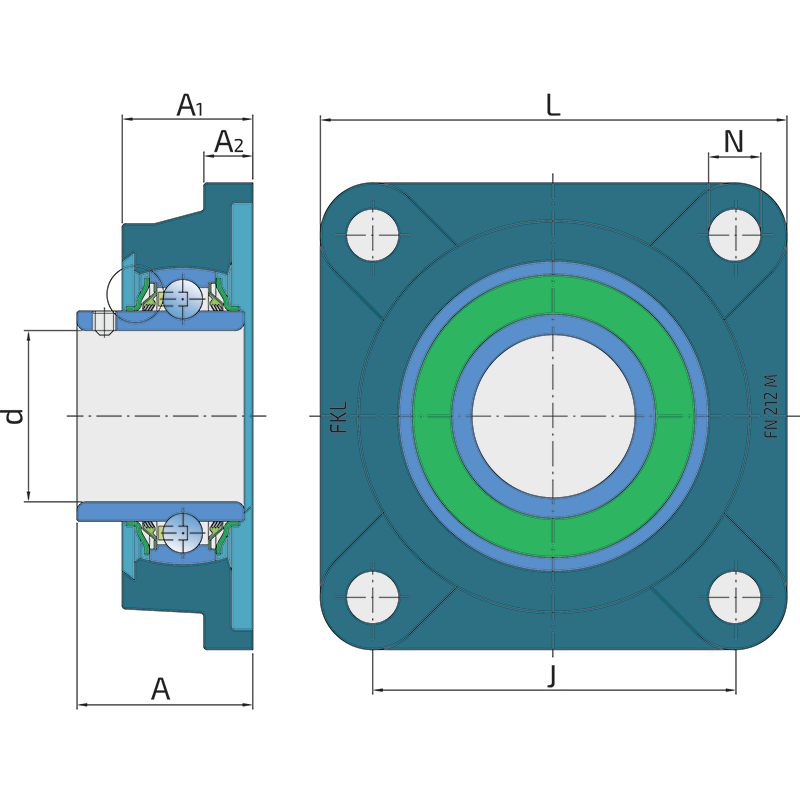

Technical datasheet:

d	Bore diameter	60
J	Distance between the holes	143
L	Total length	175
A	Overall width	73.7
A1	Total housing width	52
A2	Housing flange thickness	17
N	Hole diameter	18
kg	Mass	4.27
Cdyn	Dynamic load rating	52
Co	Static load rating	36
Pu	Fatigue load limit	1.512

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
