LEFN 212 M 2TB.H FKL

Net price:

73.047 €/pcs

Main warehouse:

On stock

3 pcs

Product number:

LEFN 212 M 2TB.H

Brand:

FKL

Product name:

csapágyegység

Sizes:

60X175X73.7

Replacements:

UCFE 212 G2 L3 SNR 00240231 HORSCH 00240198 HORSCH 00240165 HORSCH PN00096 XUC 212 B133+FE 212 GGG XUCFE 212 G2 L3 SNR F-581539-0200+F-581539-0011

Inquiry Subscribe

Replacements

Photo	Product number	Sizes	Stock
	XUC 212 B133+FE 212 GGG*SNR		0 pcs
	PN 00096*RBF		0 pcs

Product details from catalogue

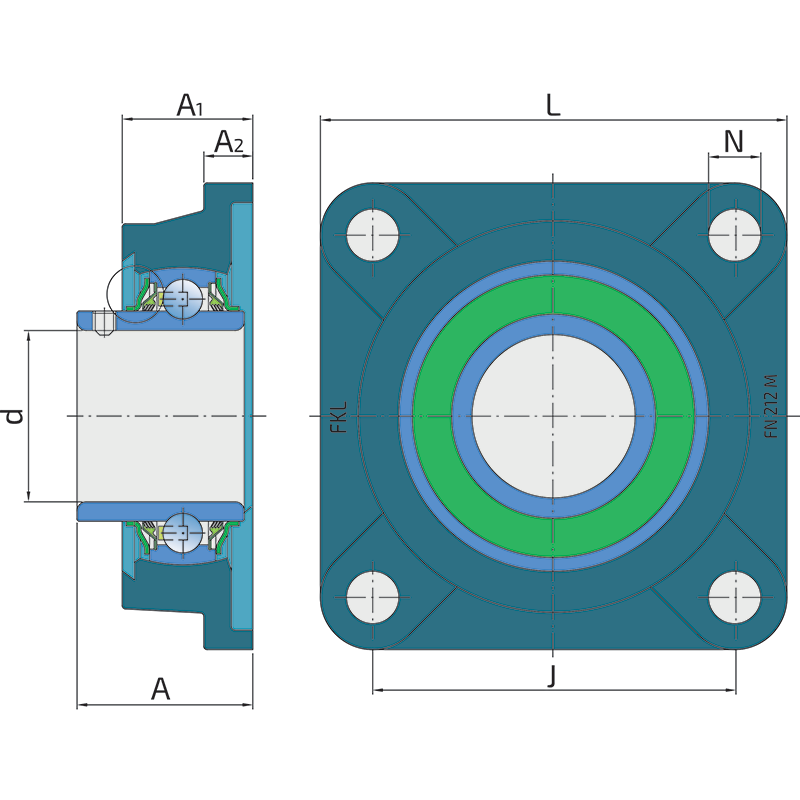

Drawings:

LEFN 212 M 2TB.H FKL

Technical datasheet:

d	Bore diameter	60
J	Distance between the holes	143
L	Total length	175
A	Overall width	73.7
A1	Total housing width	52
A2	Housing flange thickness	17
N	Hole diameter	18
kg	Mass	4.27
Cdyn	Dynamic load rating	52
Co	Static load rating	36
Pu	Fatigue load limit	1.512

Interchange:

OEM	Manufacturer	Comments
00240165	HORSCH
00240198	HORSCH
00240231	HORSCH
F-581539-0200+F-581539-0011	INA
FY 60 TF.M	SKF
UCF 212	INA
UCFE 212 G2L3	SNR
XUC212B133+FE212GGG	SNR

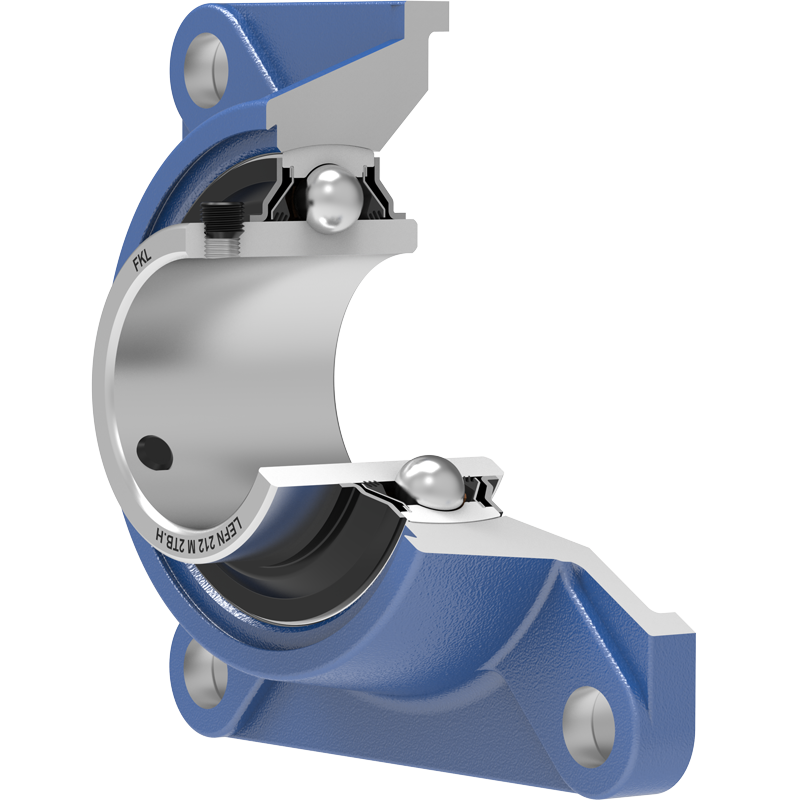

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
