LENN 206 2T FKL

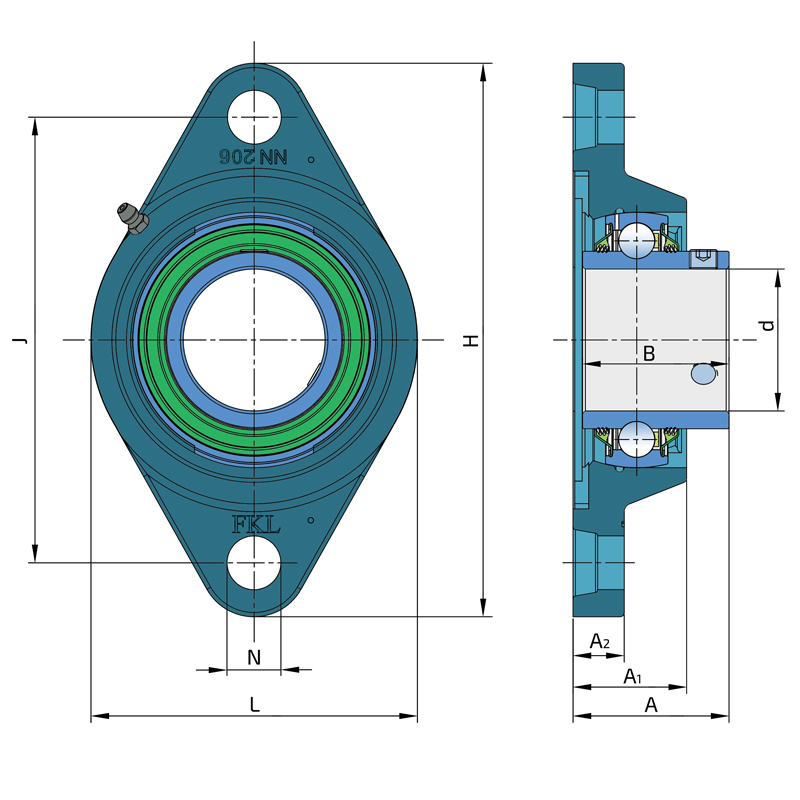

Technical datasheet:

d	Bore diameter	30
H	Housing height	148
L	Total length	80
J	Distance between the holes	117
N	Hole diameter	16
A	Overall width	40.2
A1	Total housing width	30.5
A2	Housing flange thickness	13.5
B	Width inner ring	38
kg	Mass	0.85
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.3
Pu	Fatigue load limit	0.475

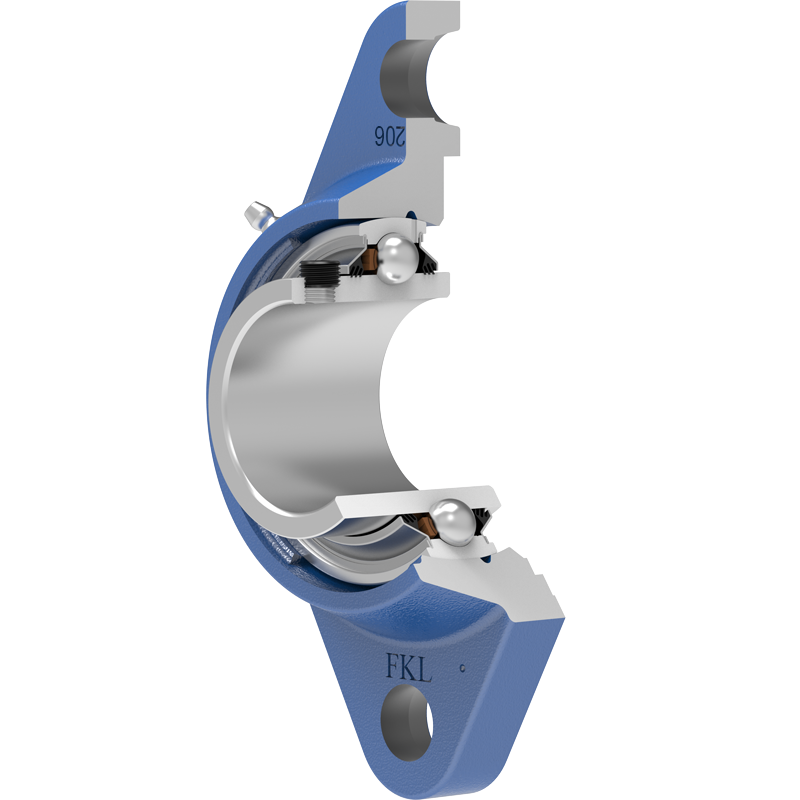

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
