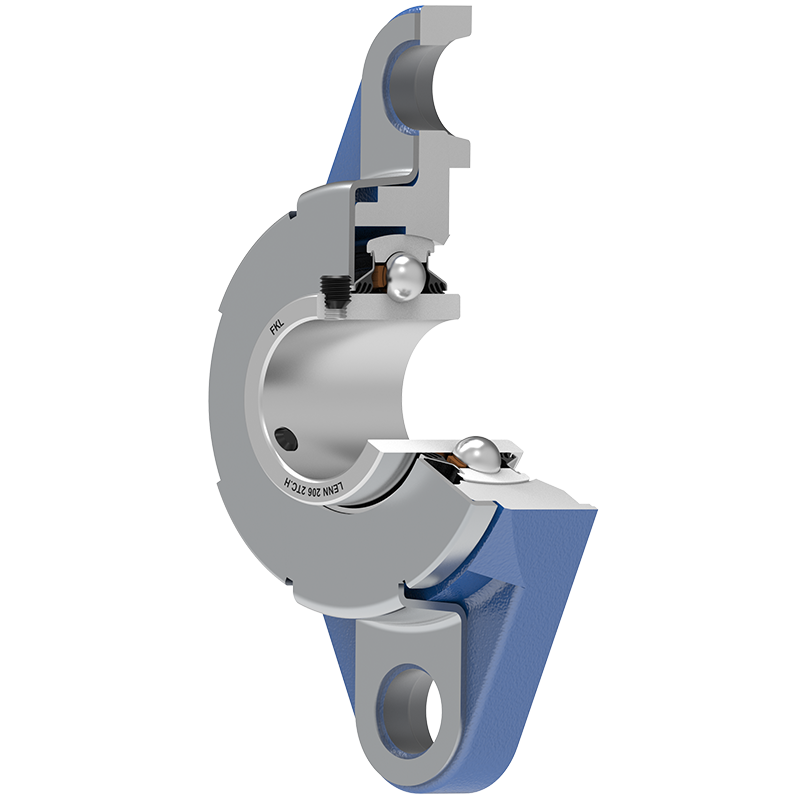

LENN 206 2TC.H FKL

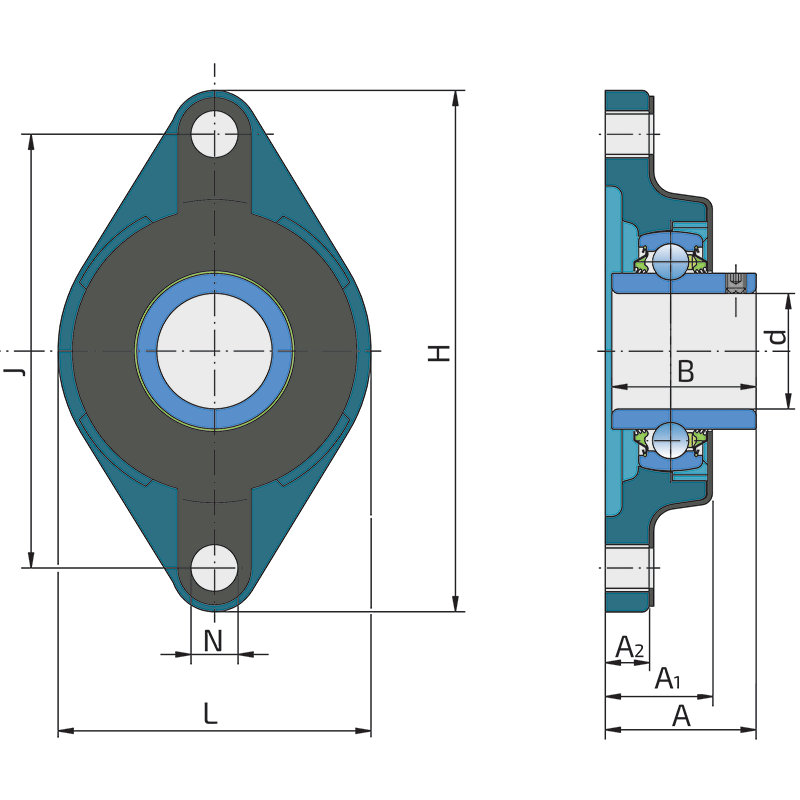

Technical datasheet:

d	Bore diameter	30
H	Housing height	148
L	Total length	80
J	Distance between the holes	117
N	Hole diameter	16
A	Overall width	40.2
A1	Total housing width	30.5
A2	Housing flange thickness	13.5
B	Width inner ring	38.1
kg	Mass	1.12
Co	Static load rating	11.3
Cdyn	Dynamic load rating	19.5
Pu	Fatigue load limit	0.475

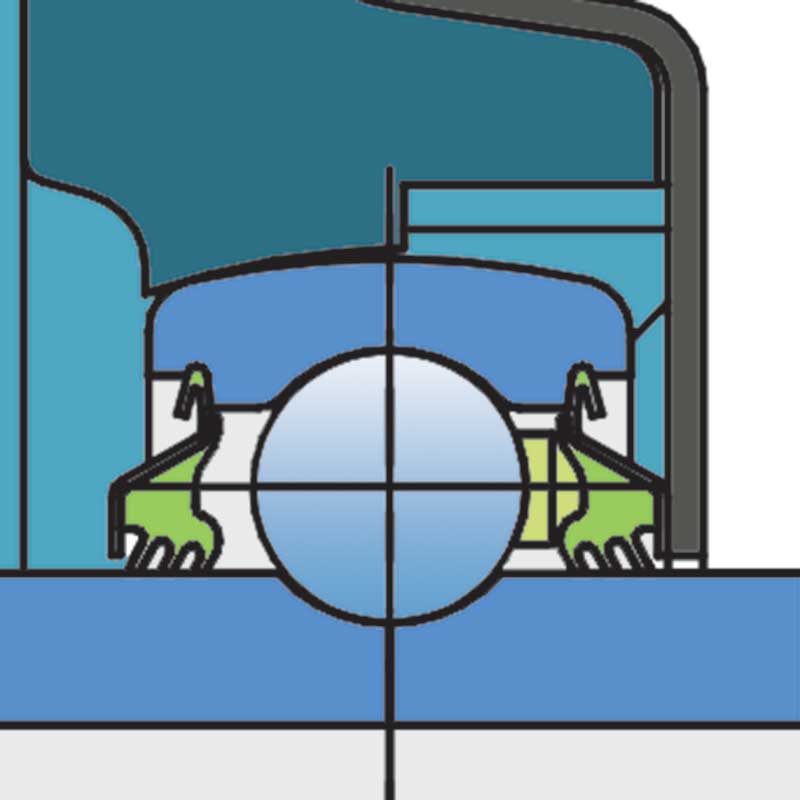

T SEAL / T SEAL+METAL COVER

3-lip seal on the base side and 3-lip seal with Metal cover on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration. The Metal cover protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
