LENN 208 2T.H FKL

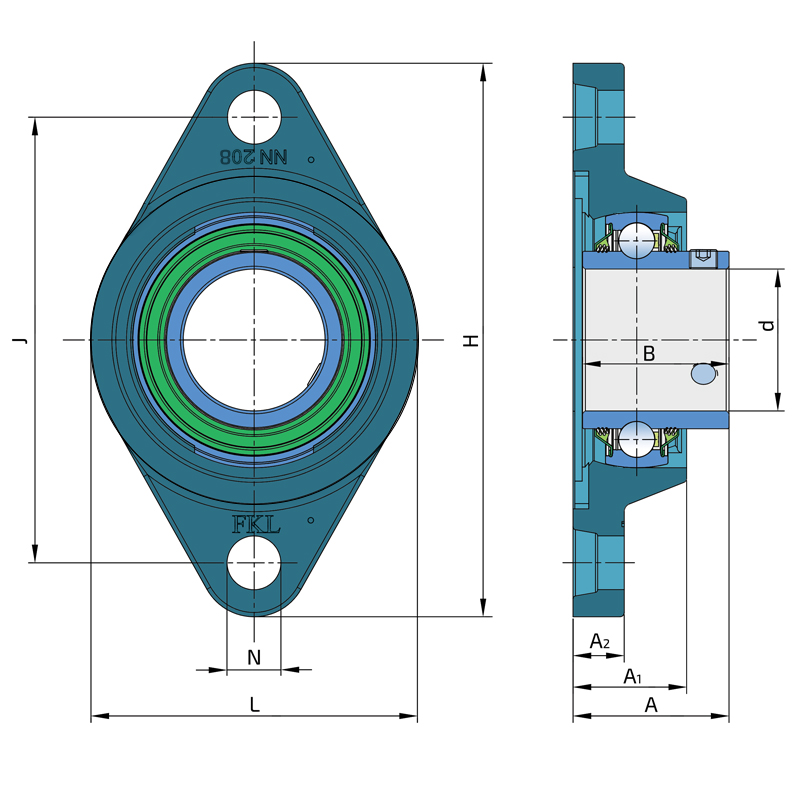

Technical datasheet:

d	Bore diameter	40
H	Housing height	175
L	Total length	100
J	Distance between the holes	144
N	Hole diameter	14
A	Overall width	51.2
A1	Total housing width	36
A2	Housing flange thickness	16
B	Width inner ring	49.2
kg	Mass	1.69
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.798

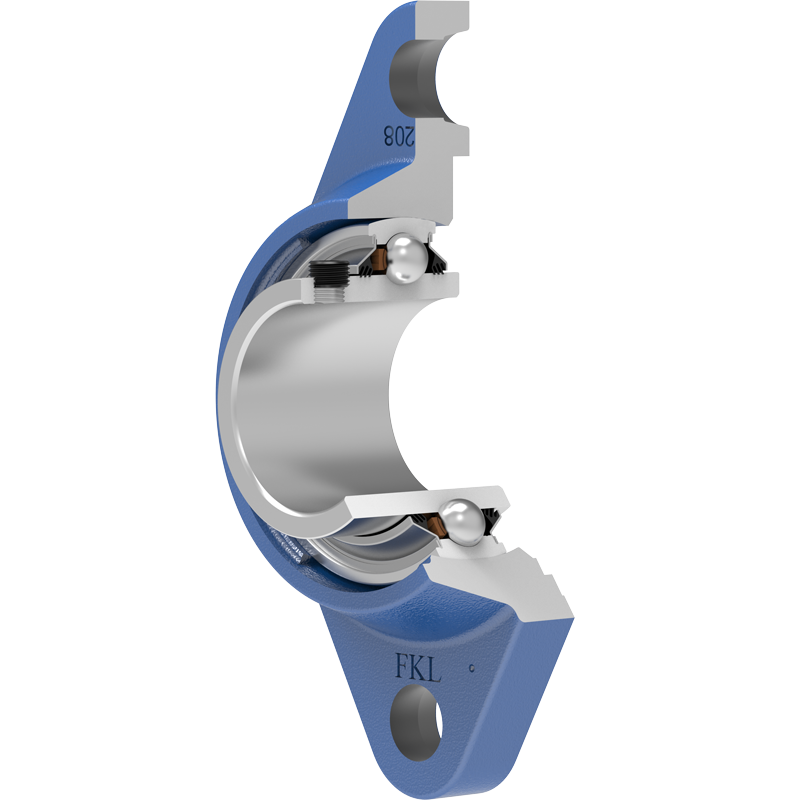

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
