LENN 210 2T FKL

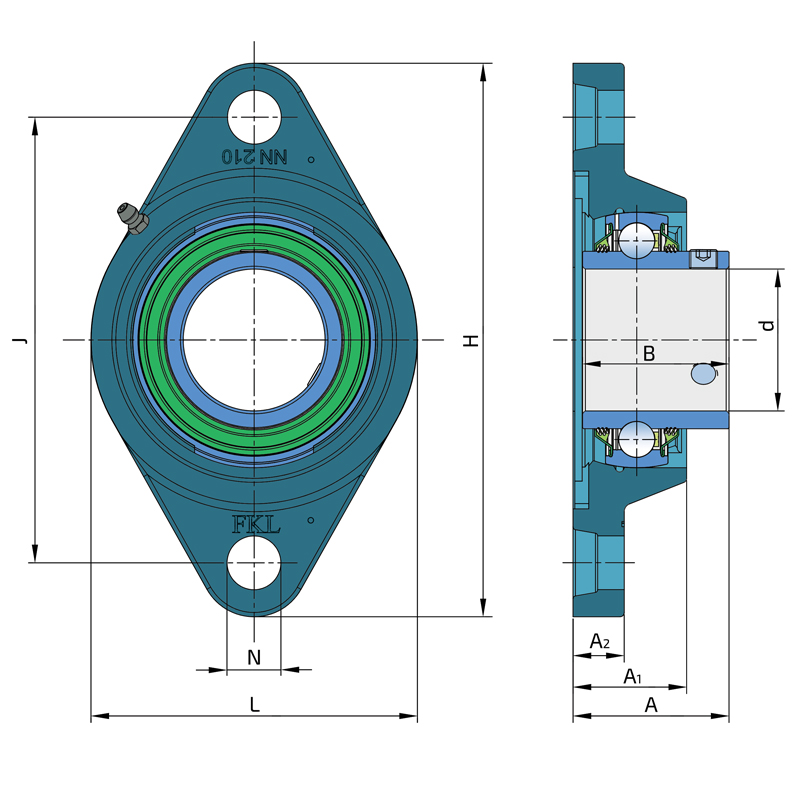

Technical datasheet:

d	Bore diameter	50
H	Housing height	195
L	Total length	115
J	Distance between the holes	157
N	Hole diameter	19
A	Overall width	55
A1	Total housing width	40
A2	Housing flange thickness	18
B	Width inner ring	51.6
kg	Mass	2.13
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.974

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
