LESQFS 212 TDT.H FKL

Net price:

102.301 €/pcs

Main warehouse:

On stock

2 pcs

Product number:

LESQFS 212 TDT.H

Brand:

FKL

Product name:

csapágyegység

Sizes:

60X205X73,7

Catalog:

Catalog #1: https://www.fkl-serbia.com/product.php?id=167

Replacements:

00240187 HORSCH 95110360 HORSCH 96080209 HORSCH PN 00062 + PN 00063 PN 00063 + PN 00062

Inquiry Subscribe

Product details from catalogue

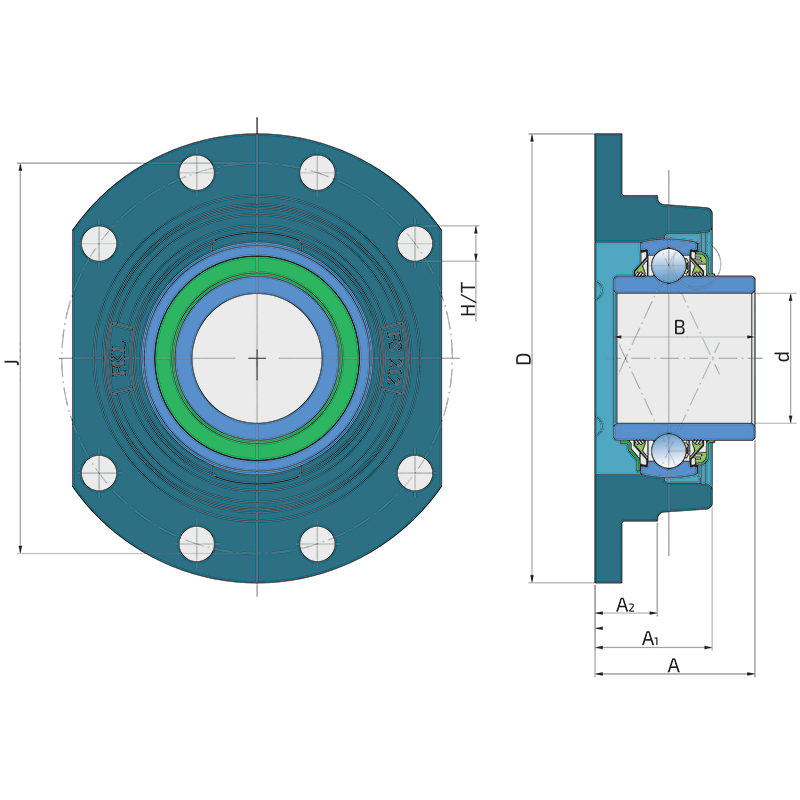

Drawings:

LESQFS 212 TDT.H FKL

Technical datasheet:

d	Bore diameter	60
D	Outside diameter	205
J	Pitch circle diameter	180
A	Overall width	73.7
A1	Total housing width	54
A2	Housing flange thickness	28.7
B	Width inner ring	65.1
H/T	Hole/Thread	14.5
kg	Mass	5.3
Co	Static load rating	67.2
Cdyn	Dynamic load rating	79.3
Pu	Fatigue load limit	2.82

Interchange:

OEM	Manufacturer	Comments
00240187 (old designation)	HORSCH
95110360	HORSCH
96080209 (old designation)	HORSCH
PN00063	RBF

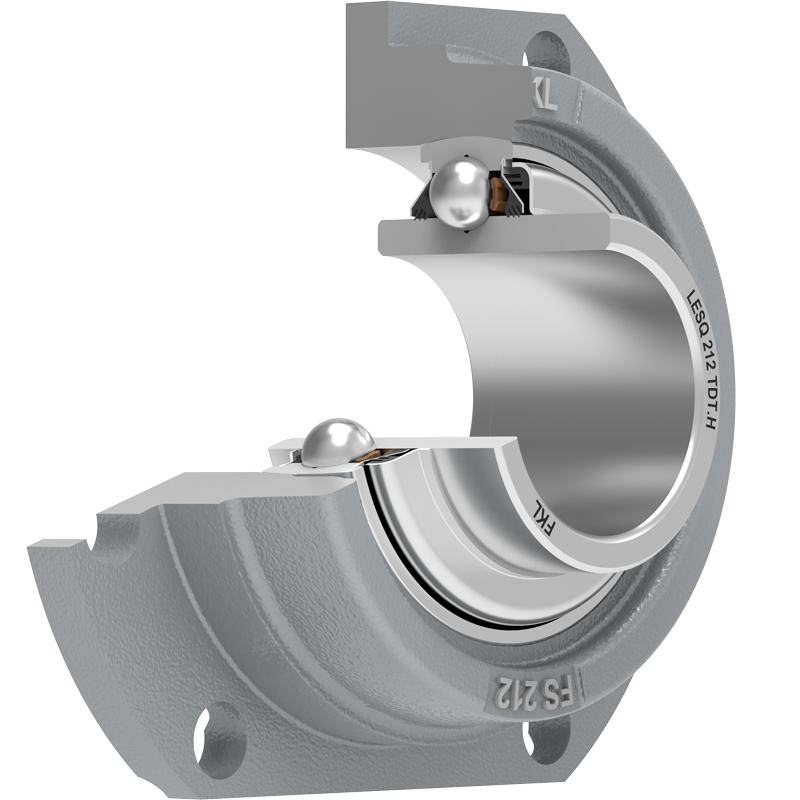

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
