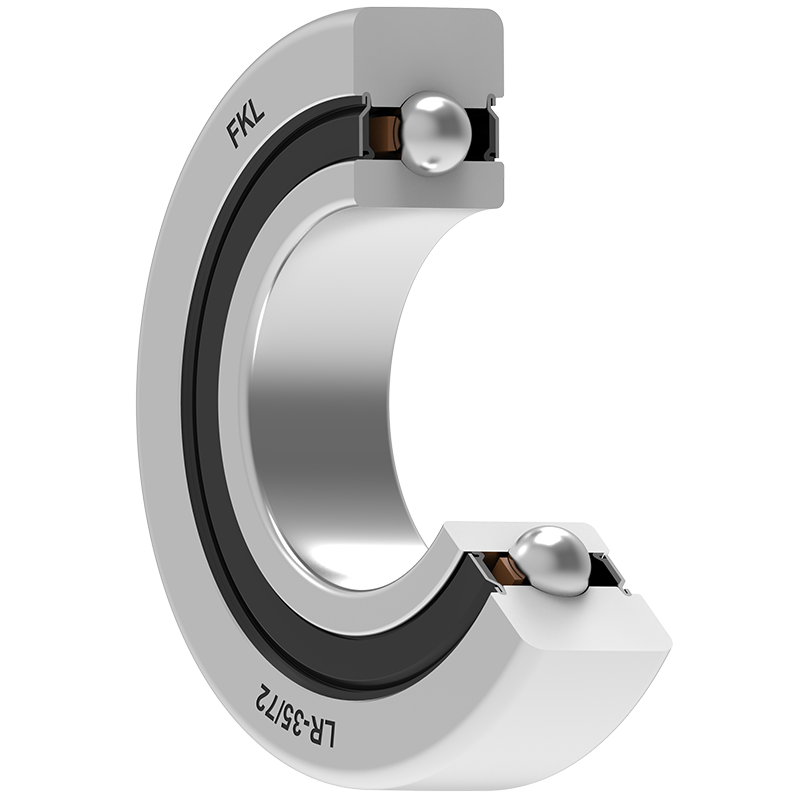

LR-35/72 FKL

Technical datasheet:

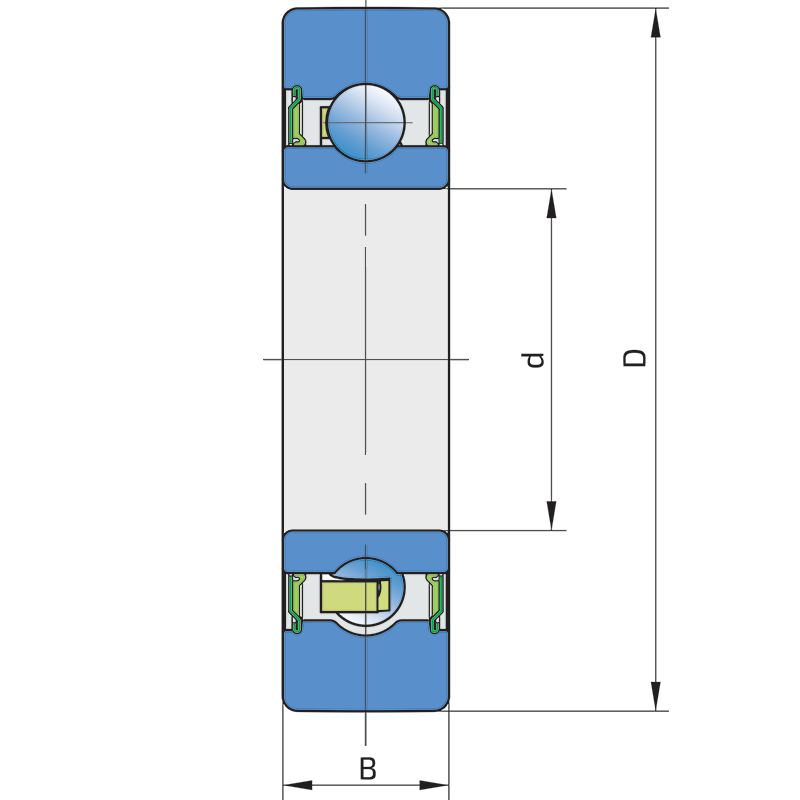

D	Outside diameter	72
d	Bore diameter	35
B	Width inner ring	17
kg	Mass	0.32
Cdyn	Dynamic load rating	16
Co	Static load rating	10.2
Pu	Fatigue load limit	0.428

Interchange:

OEM	Manufacturer	Comments
0070608	POTTINGER
114-992-2RSR2	PBF
BR6090	NEW HOLLAND
BR6090	CASE
CF 6007-2RLYD-NSD65-C3	PEER
F552987	INA
LR35/72-2URS	INA
PN 00111	RBF

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
