Product number:

LSGR 205 FS

Brand:

Product name:

csapágyegység

Replacements:

3199371 LEMKEN F-239975 F-239975.02.IBBU GGF 25 A07 + UC 205 X1 PN00029 RCJT 25X400X43 GGG UC 205 FS

Inquiry Subscribe

LSGR 205 FS FKL

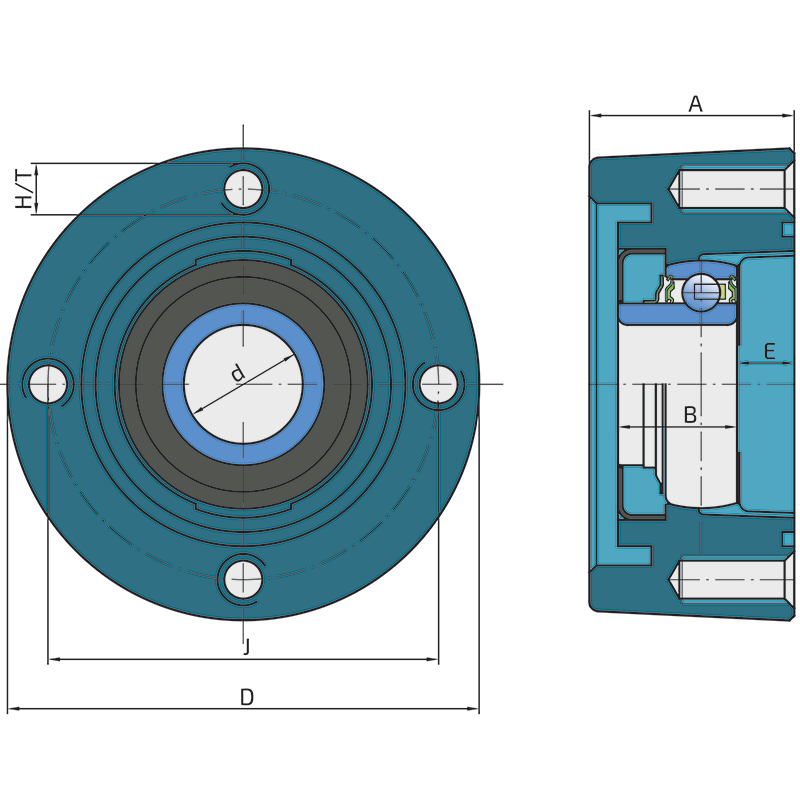

Technical datasheet:

d	Bore diameter	25
D	Outside diameter	99
J	Pitch circle diameter	82
H/T	Hole/Thread	M10
A	Overall width	43
B	Width inner ring	25
E	Distance from housing flange to bearing face	12
kg	Mass	1.55
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.328

Interchange:

OEM	Manufacturer	Comments
3199371	LEMKEN
F239975	LEMKEN
F239975-0200	INA
GGF 25 A07 + UC 205 X1	SNR
PN00029	RBF
RCJT25x400x43GGG	INA

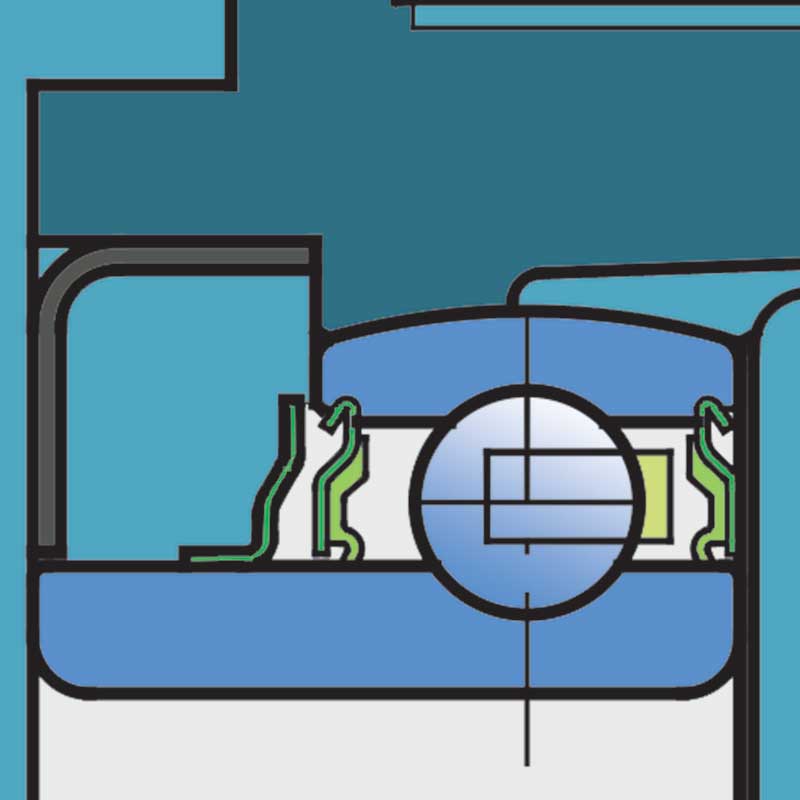

METAL COVER RING+METAL FLINGER RING+S SEAL / S SEAL

S seal on the base side and S seal with Metal flinger ring and Metal cover ring on the front side which is exposed to contaminants. The Metal cover ring protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
