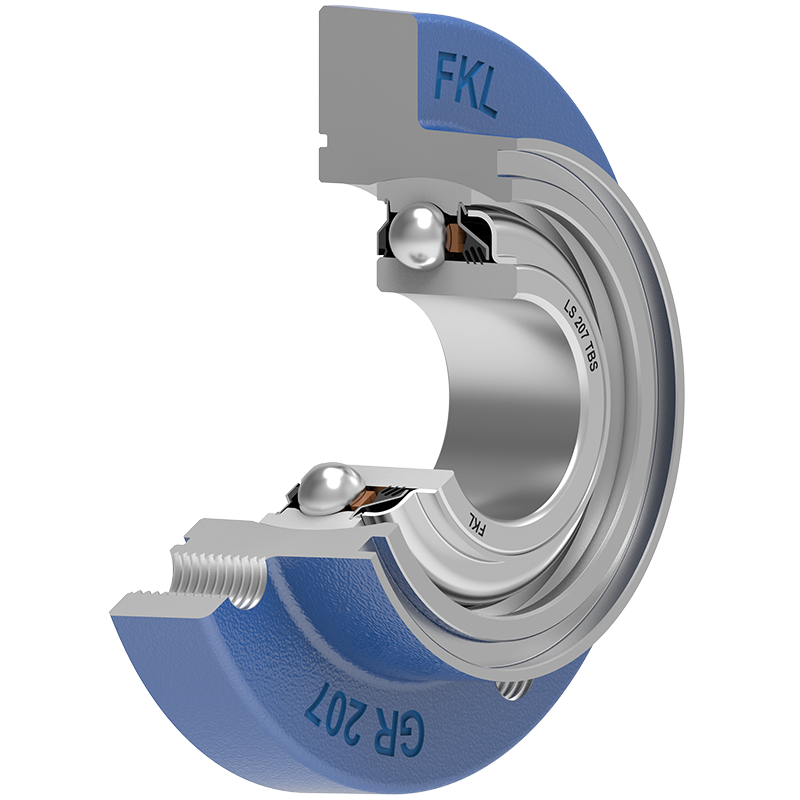

LSGR 207 TBS FKL

Net price:

48.447 €/pcs

Main warehouse:

On stock

10 pcs

Product number:

LSGR 207 TBS

Brand:

FKL

Product name:

csapágyegység

Catalog #2: LSGR_207_TBS.pdf

Replacements:

3199372 LEMKEN RCJ 35x118x39.9 PN00032RCJ F 232812-0200 + GGG ME07 AH01 F-232812 UC 207 X1 + GGG ME07 AH01 3421370.2 GGG ME07 AH01 + UC 207 X1 GGG ME07 AH01 + F 232812-0200 ME07 AH01 + F 232812-0200 ME07 AH01 + UC 207 X1

Inquiry Subscribe

Product details from catalogue

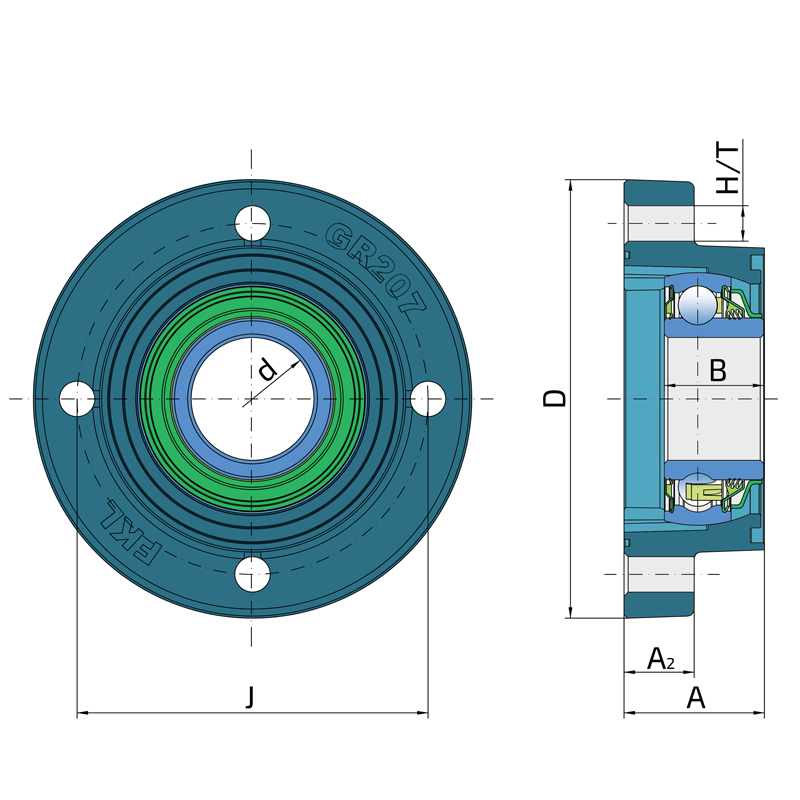

Drawings:

LSGR 207 TBS FKL

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	125
J	Pitch circle diameter	100
H/T	Hole/Thread	M12
A	Overall width	40
A2	Housing flange thickness	20
B	Width inner ring	28.3
kg	Mass	1.7
Co	Static load rating	15.3
Cdyn	Dynamic load rating	25.5
Pu	Fatigue load limit	0.643

Interchange:

OEM	Manufacturer	Comments
3199372	LEMKEN
3421370.2	OPALL-AGRI
F232812-0200	INA
F232812-0200IBBU	INA
PN00032	RBF

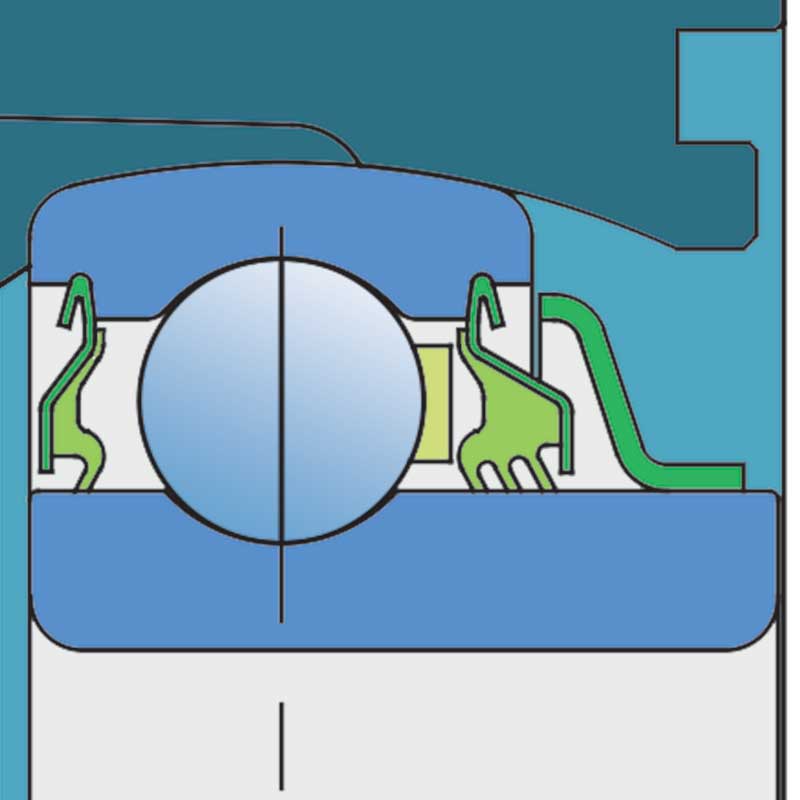

S SEAL / T SEAL+METAL FLINGER RING

S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.
