LSNN 208 TDT.H.T*K FKL

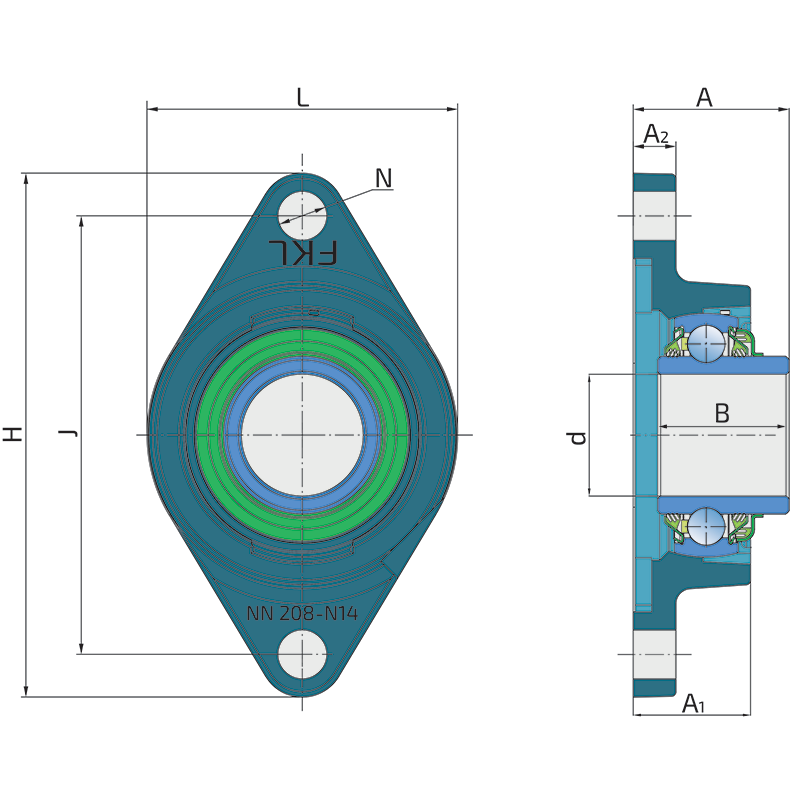

Technical datasheet:

d	Bore diameter	40
H	Housing height	172
J	Pitch circle diameter	144
L	Total length	102
A	Overall width	51.2
A2	Housing flange thickness	14
B	Width inner ring	43.2
N	Hole diameter	16
kg	Mass	1.78
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.798

Interchange:

OEM	Manufacturer	Comments
567148	KÖCKERLING
GGF40A04+UC208X6	SNR

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
