LSNR 205 2T FKL

Net price:

64.210 €/pcs

Main warehouse:

On stock

5 pcs

Product number:

LSNR 205 2T

Brand:

FKL

Product name:

csapágyegység

Replacements:

3199367 LEMKEN F-233449

Inquiry Subscribe

Product details from catalogue

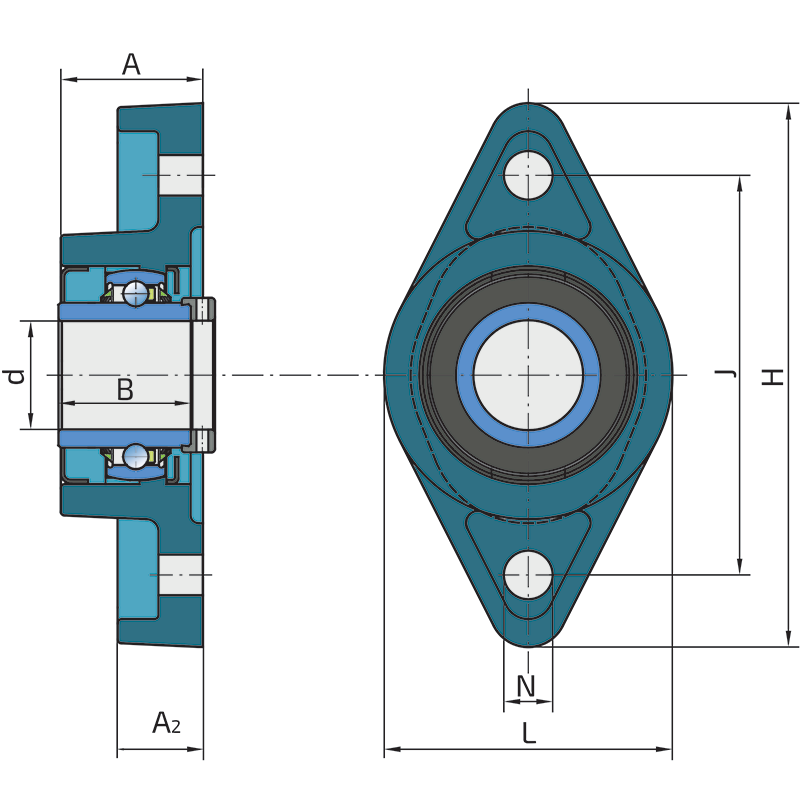

Drawings:

LSNR 205 2T FKL

Technical datasheet:

d	Bore diameter	25
H	Housing height	135
L	Total length	71
J	Distance between the holes	14
A	Overall width	35
A2	Housing flange thickness	21
B	Width inner ring	34.8
N	Hole diameter	11
kg	Mass	0.91
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.328

Interchange:

OEM	Manufacturer	Comments
3199367	LEMKEN
F233449	INA
PN00028	RBF

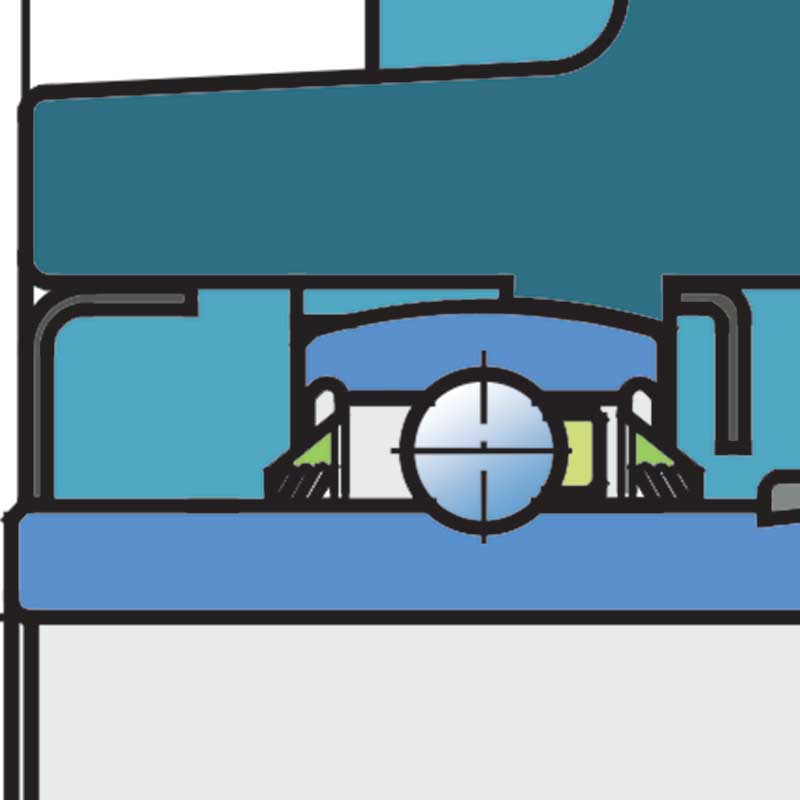

METAL COVER RING+T SEAL / T SEAL+METAL COVER RING

3-lip seal on the base side and 3-lip seal with Metal cover ring on the front side which is exposed to contaminants. The 3-lip seal on the both side protects the bearing from contaminants. The Metal cover ring protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
