Product number:

LSQFH 210 2PB.H

Brand:

Product name:

csapágyegység

Replacements:

00240153 HORSCH 00240159 HORSCH 00240177 HORSCH W210-50MM-MF-R-DF-A362 TCF 50-2C AH01.GGG LSQFG 210 2PB H F-567563 UDFU 210/4P 2RS TN1 FH210+LSQ2102PB.H GW 210 RPPB55-F-B

Inquiry Subscribe

LSQFH 210 2PB.H FKL

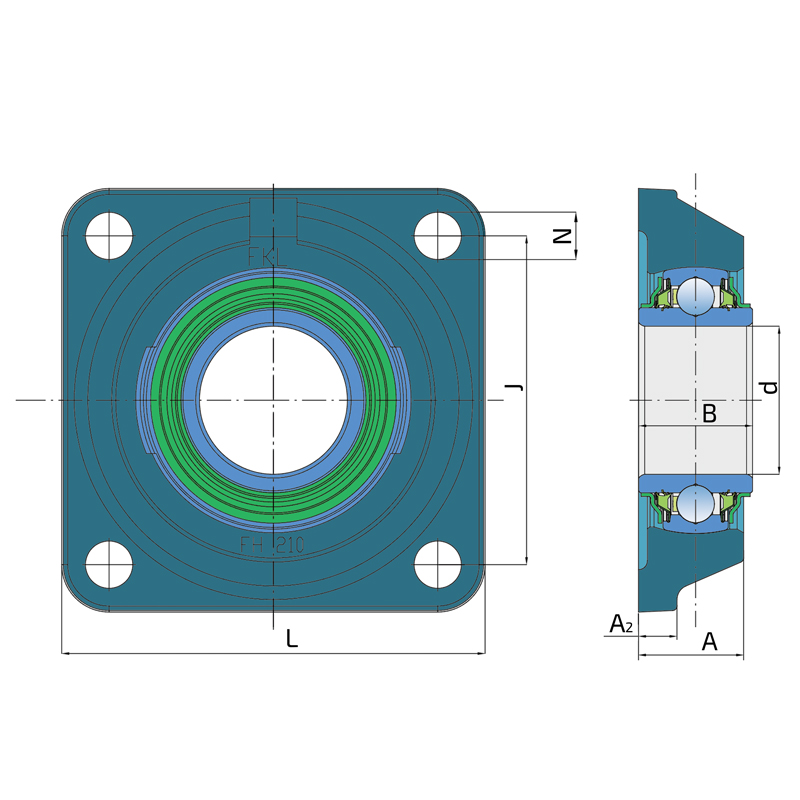

Technical datasheet:

J	Distance between the holes	111
L	Total length	143
d	Bore diameter	50
B	Width inner ring	38.4
N	Hole diameter	17
A	Overall width	38.5
A2	Housing flange thickness	13
kg	Mass	2.47
Cdyn	Dynamic load rating	56
Co	Static load rating	45
Pu	Fatigue load limit	1.89

Interchange:

OEM	Manufacturer	Comments
00240030	HORSCH
00240153	HORSCH
00240159	HORSCH
00240177	HORSCH
00240195	HORSCH
BB210-50MM-MF-R-DF-A362	PEER
F04060013	GASPARDO
TCF 50-2C-AH01-GGG	INA
TCF50	INA
W210-50MM-MF-R-DF-A362	PEER

PB SEAL / PB SEAL (2PB)

A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.
