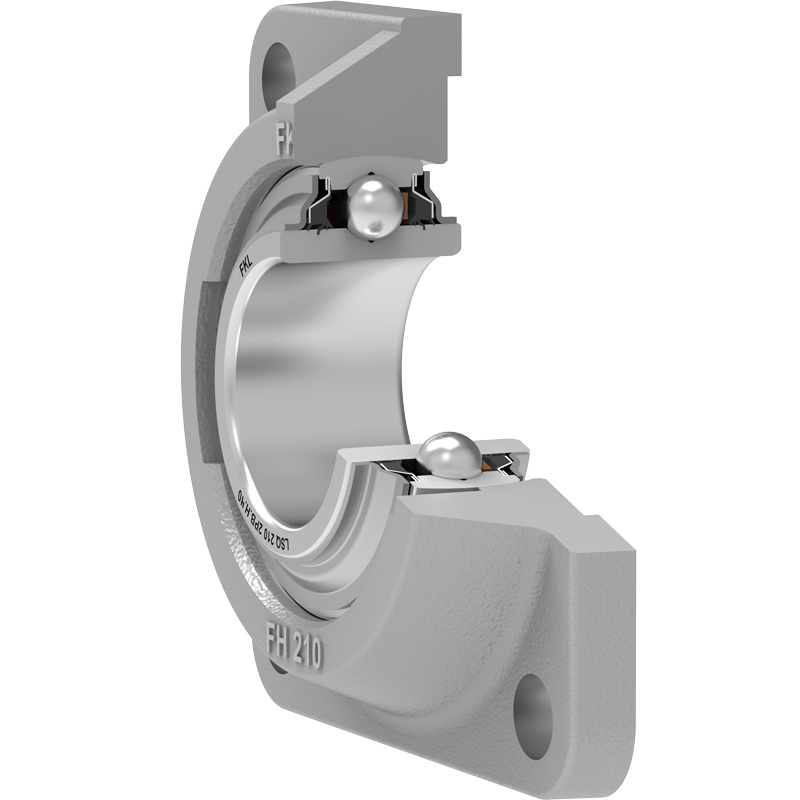

LSQFH 210 2PB.H.40 FKL

Technical datasheet:

J	Distance between the holes	111
L	Total length	143
d	Bore diameter	40
B	Width inner ring	38.4
N	Hole diameter	17
A	Overall width	38.5
A2	Housing flange thickness	13
kg	Mass	2.47
Cdyn	Dynamic load rating	56
Co	Static load rating	45
Pu	Fatigue load limit	1.89

Interchange:

OEM	Manufacturer	Comments
F-606220-0200.IBB	GASPARDO
F04060020R	GASPARDO
IBBU-40X143X38,4-IA03	INA
UCF308-40MM-AP-M	PEER

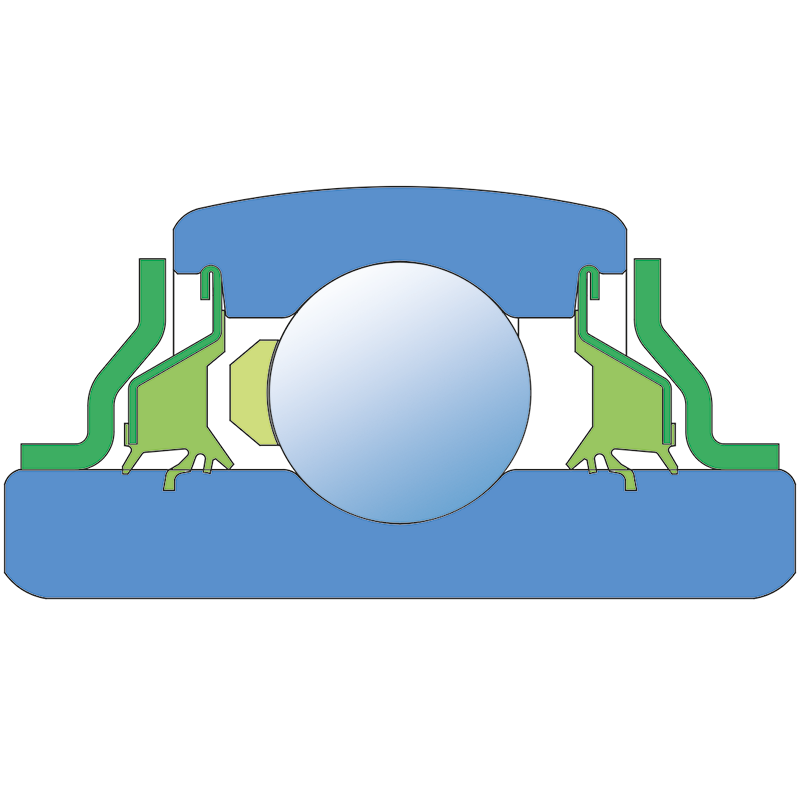

PB SEAL / PB SEAL (2PB)

A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.
