LSQFR 308 TDT.H.T FKL

Net price:

53.486 €/pcs

Main warehouse:
Out of stock
0 pcs

Product number:

LSQFR 308 TDT.H.T

Brand:

FKL

Product name:

csapágyegység

Catalog:

Catalog #1: https://www.fkl-serbia.com/product.php?id=156&gr=14

Catalog #2: LSQFR 308_TDT_H_T.pdf

Replacements:
00240028 TCJ40 M17341 M18650 UCFE308A02X3 LSQFR 308 TQT.H.T

Inquiry Subscribe

Product details from catalogue

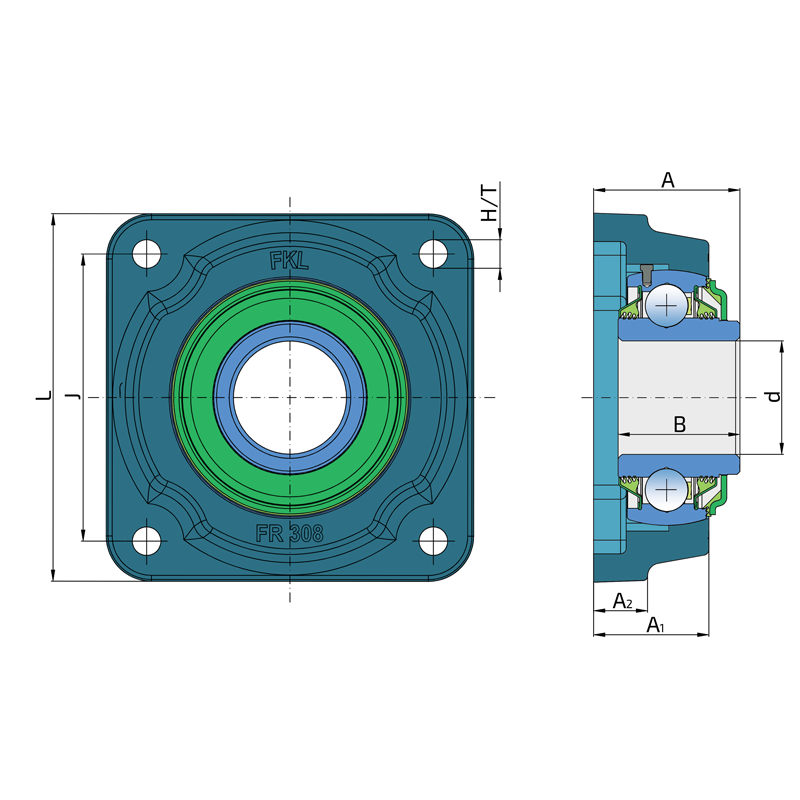

Drawings:

LSQFR 308 TDT.H.T FKL


Technical datasheet:
d Bore diameter 40
L Total length 130
J Distance between the holes 101.5
H/T Hole/Thread M12
A Overall width 51.4
A1 Total housing width 40.6
A2 Housing flange thickness 19
B Width inner ring 42.9
kg Mass 2.5
Cdyn Dynamic load rating 62.3
Co Static load rating 45.2
Pu Fatigue load limit 1.898
