LSQFR 309 2TB.H.T FKL

Net price:

66.483 €/pcs

Main warehouse:

On stock

2 pcs

Product number:

LSQFR 309 2TB.H.T

Brand:

FKL

Product name:

csapágyegység

Catalog #2: LSQFR_309_2TB_H_T.pdf

Replacements:

CJI 309 GGG+19000509 CJI 309 GGG-19000509 CJI 309 GGG/19000509 CJI 309 GGG 19000509 LEFG 309 TDT

Inquiry Subscribe

Product details from catalogue

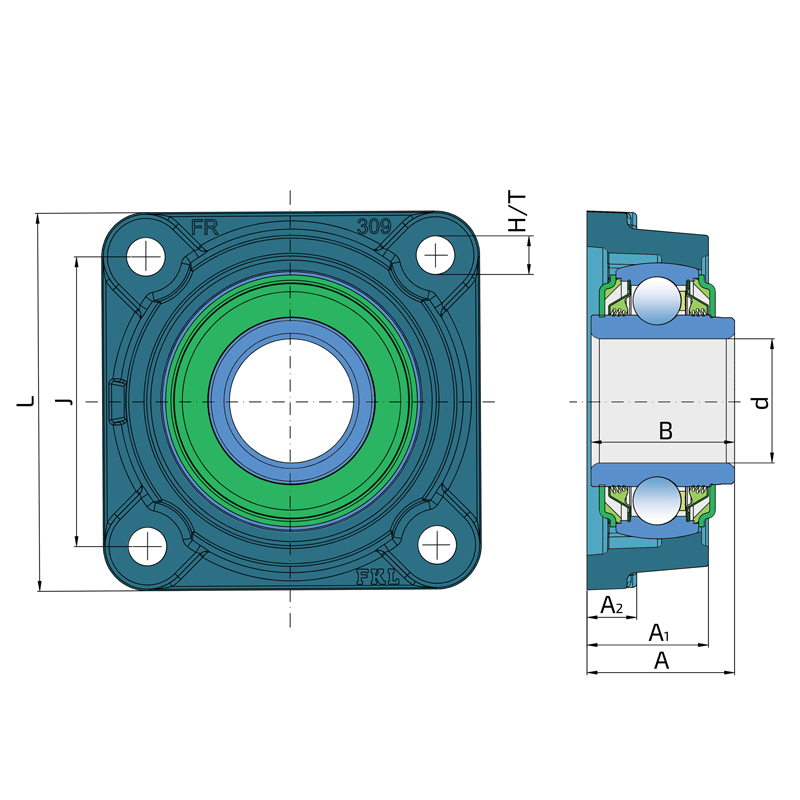

Drawings:

LSQFR 309 2TB.H.T FKL

Technical datasheet:

d	Bore diameter	45
L	Total length	137
J	Distance between the holes	105
H/T	Hole/Thread	14
A	Overall width	54
A1	Total housing width	44
A2	Housing flange thickness	22
B	Width inner ring	51.1
kg	Mass	3.4
Co	Static load rating	59.6
Cdyn	Dynamic load rating	80.8
Pu	Fatigue load limit	2.503

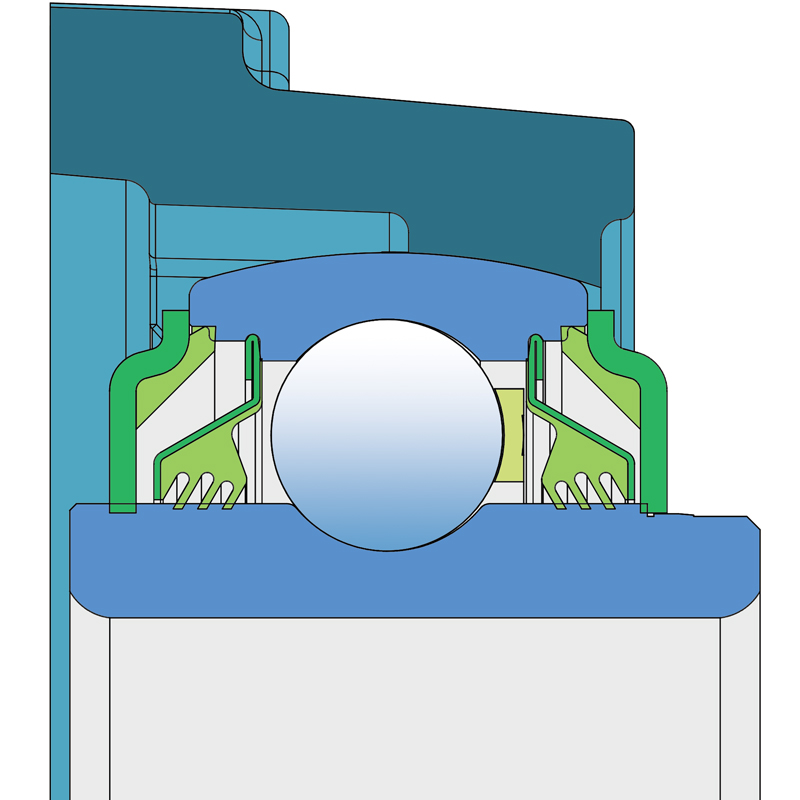

RUBBERIZED FLINGER + T SEAL / T SEAL + RUBBERIZED FLINGER

Sealing RUBBERIZED FLINGER + T SEAL / T SEAL + RUBBERIZED FLINGER Rubberized flinger with 3-lip seal on the base side and 3-lip seal with rubberized flinger on the front side which is exposed to contaminants. The 3-lip seal protects the bearing from contaminant penetration. The rubberized flinger protects the seal from mechanical damage and provides additional sealing.
