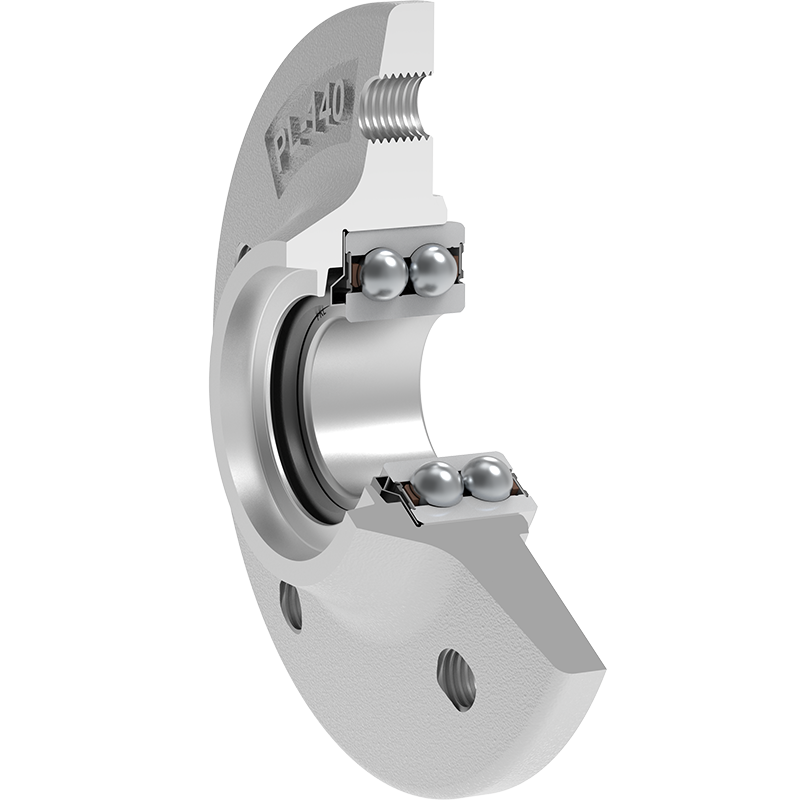

PL-140 FKL

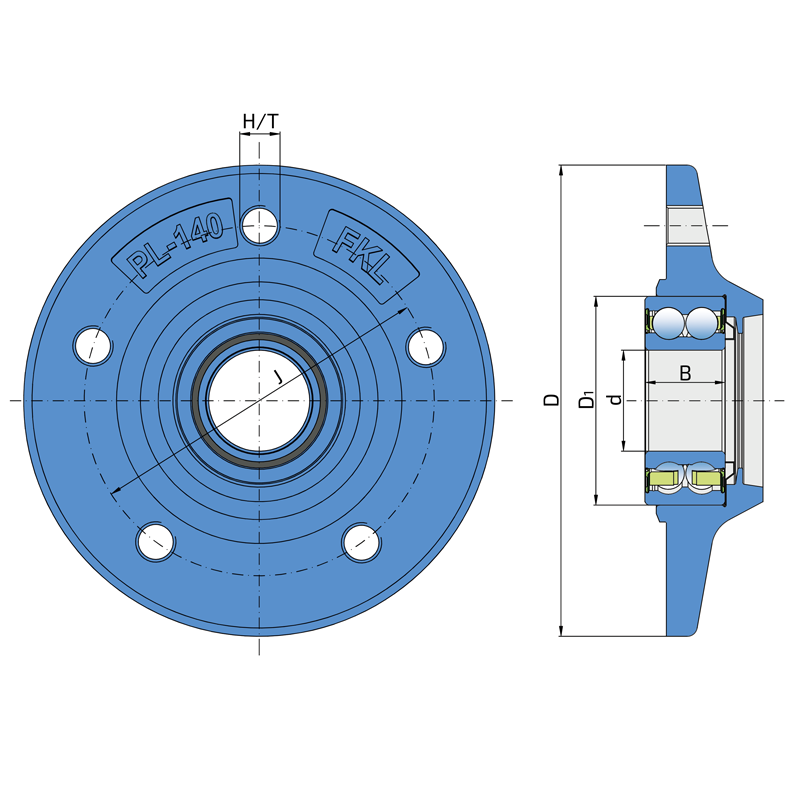

Technical datasheet:

J	Pitch circle diameter	104
D	Outside diameter	140
D1	Outside diameter	62
d	Bore diameter	30
H/T	Hole/Thread	M12
L	Total length	35
B	Width inner ring	23.8
kg	Mass	1.5
Cdyn	Dynamic load rating	31
Co	Static load rating	22.2
Pu	Fatigue load limit	0.932

Interchange:

OEM	Manufacturer	Comments
418531	VADERSTAD
420832	VADERSTAD
FRD004	FRD
PN60042	RBF

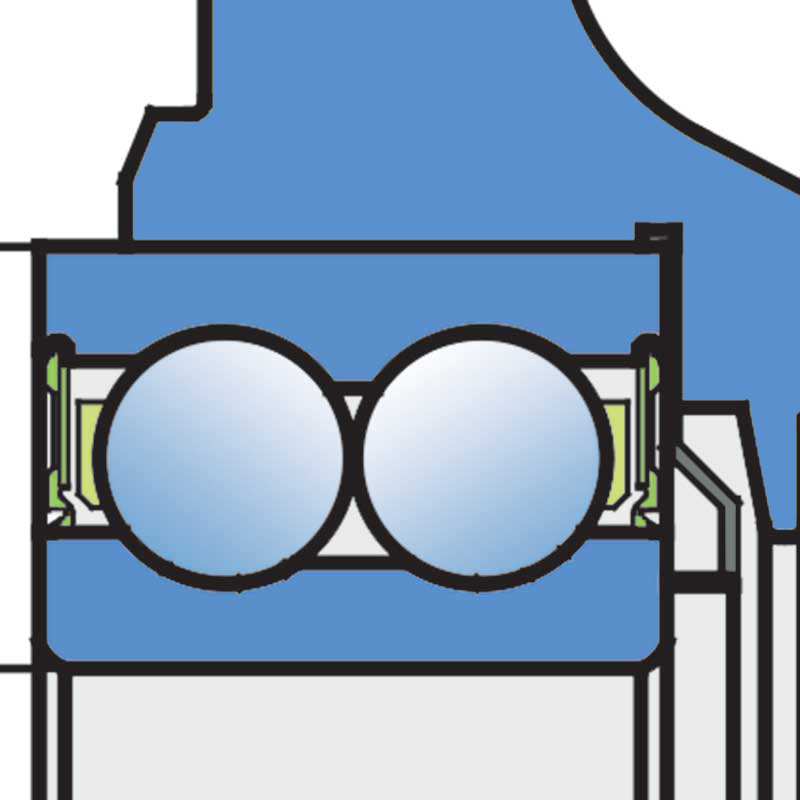

RS SEAL / RS SEAL+METAL SHIELD

RS seal on the base side and RS seal with Metal shield on the front side which is exposed to the environment.
