PL-185-155/5H-M30x1.5 FKL

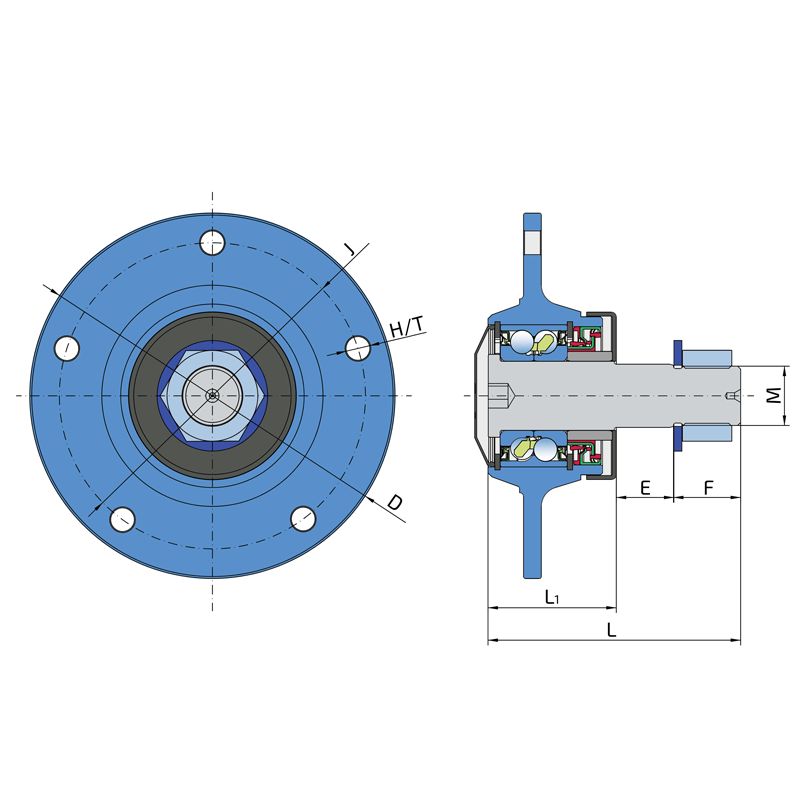

Technical datasheet:

D	Outside diameter	185
J	Pitch circle diameter	155
H/T	Hole/Thread	5x12
L	Total length	128
L1	Total flange length	65
F	Length of threaded part	34
M	Outher Thread	M30x1.5-RH
E	Length of D shape	30
kg	Mass	4.228
Cdyn	Dynamic load rating	47.4
Co	Static load rating	38.3
Pu	Fatigue load limit	1.609

PLASTIC CAP + CASSETTE SEAL / CASSETTE SEAL + DIRTBLOCK SEAL + METAL SHIELD

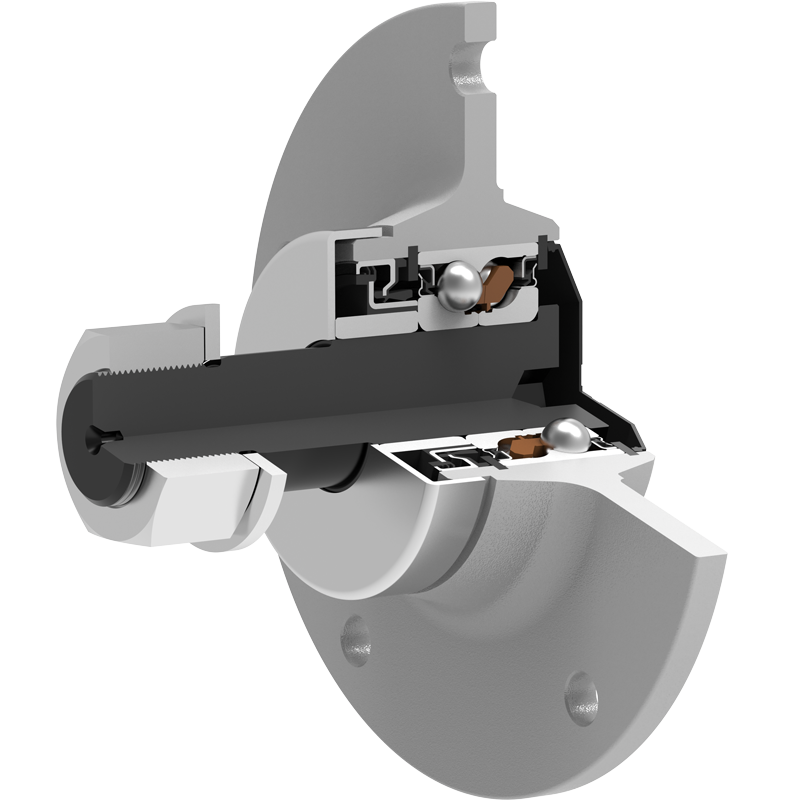

Sealing PLASTIC CAP + CASSETTE SEAL / CASSETTE SEAL + DIRTBLOCK SEAL + METAL SHIELD Two part double lip wheel bearing seal on the both side. This sealing provides excellent protection from contamination and low friction. Front side is totally sealed with a polypropylene shield which prevents all kind of contaminations. The other side is additionally protected with dirtblock seal and with a metal protective cap. Dirtblock seal is designed for hard working condition, half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. The metal protective cap protects the seal from mechanical damage and from entanglement of grass stems of plants and twines. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
