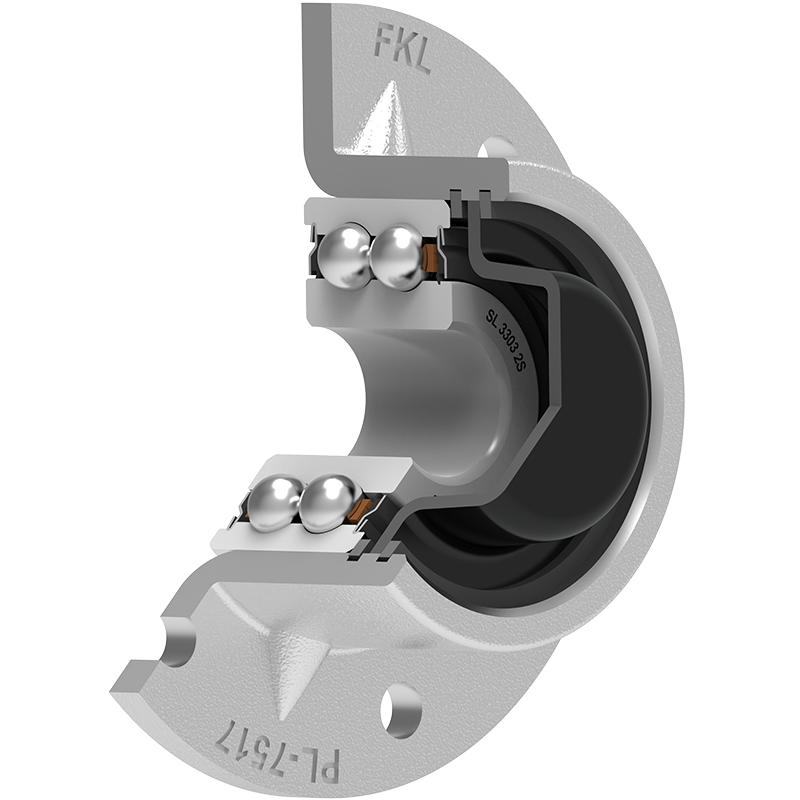

PL-7517 FKL

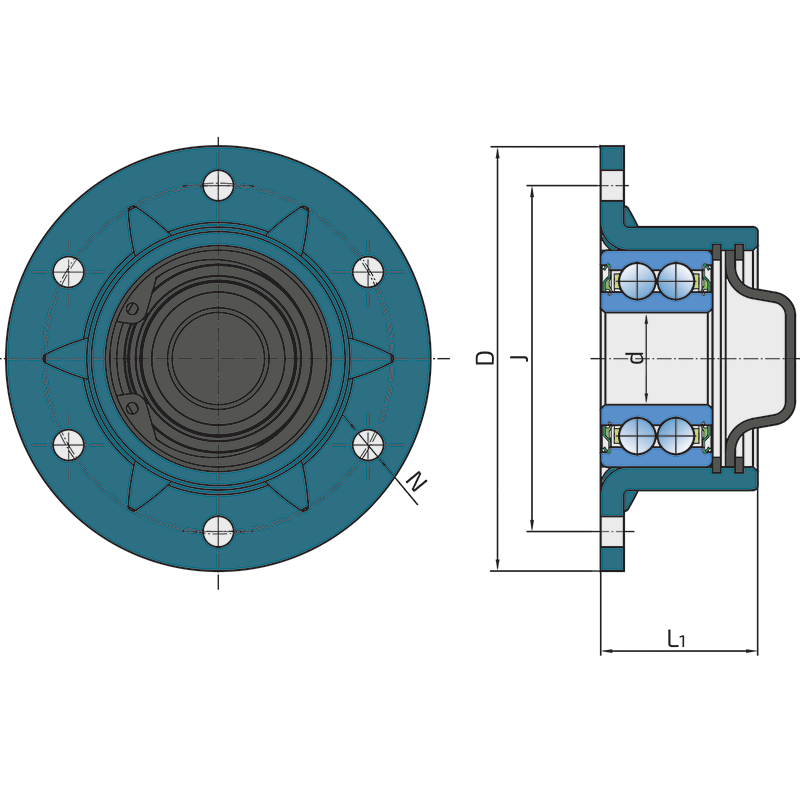

Technical datasheet:

d	Bore diameter	17
D	Outside diameter	92
J	Pitch circle diameter	75
L1	Total flange length	34
N	Hole diameter	6.7H12
kg	Mass	0.56
Cdyn	Dynamic load rating	19.6
Co	Static load rating	12.6
Pu	Fatigue load limit	0.529

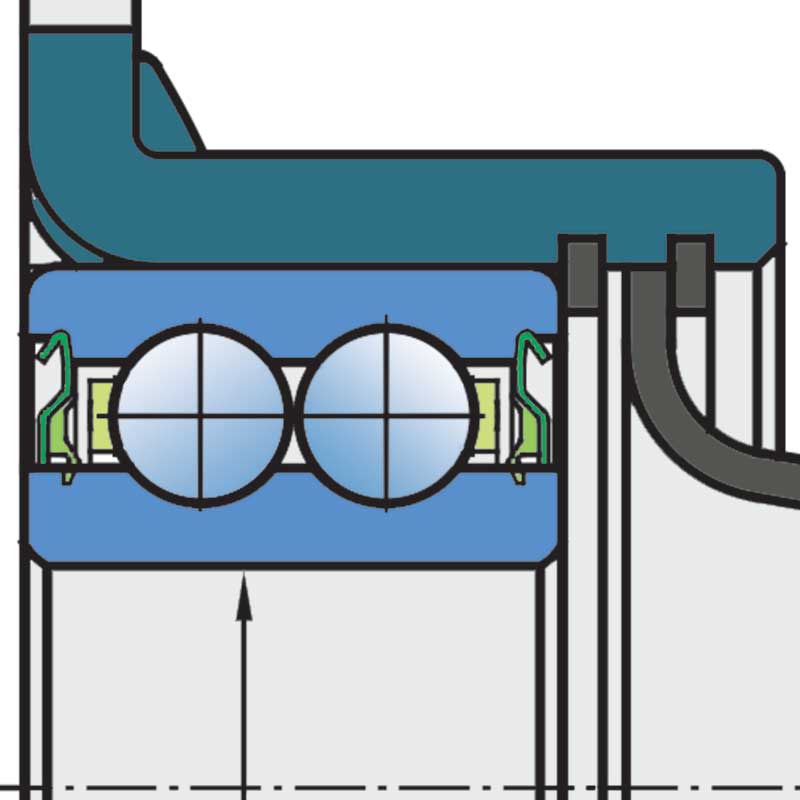

S SEAL / S SEAL+PLASTIC CAP

S seal on the base side and S seal with Plastic cap on the front side which is exposed to the environment. Plastic cap protects the nut and reduces the penetration of contaminants.
