PRB-45-00 FKL

Technical datasheet:

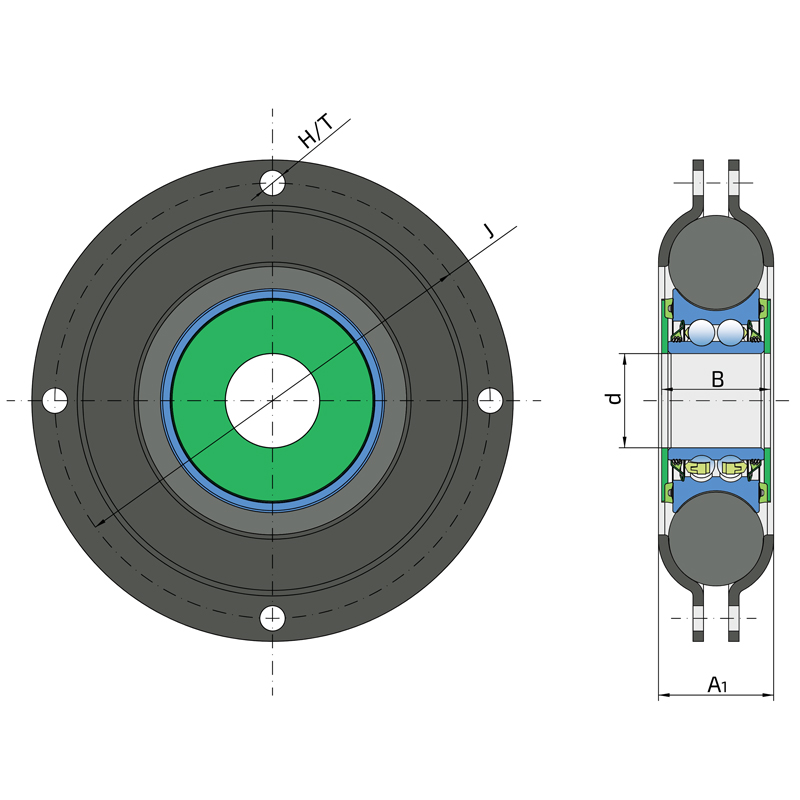

d	Bore diameter	45
B	Width inner ring	52
A	Overall width	55
J	Pitch circle diameter	208
H/T	Hole/Thread	4x12.1
kg	Mass	4.663
Cdyn	Dynamic load rating	51
Co	Static load rating	39
Pu	Fatigue load limit	1.638

FRONTAL DOUBLE LIP SEAL + T SEAL / T SEAL + FRONTAL DOUBLE LIP SEAL

Sealing FRONTAL DOUBLE LIP SEAL + T SEAL / T SEAL + FRONTAL DOUBLE LIP SEAL Triple lip seal and frontal double lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
