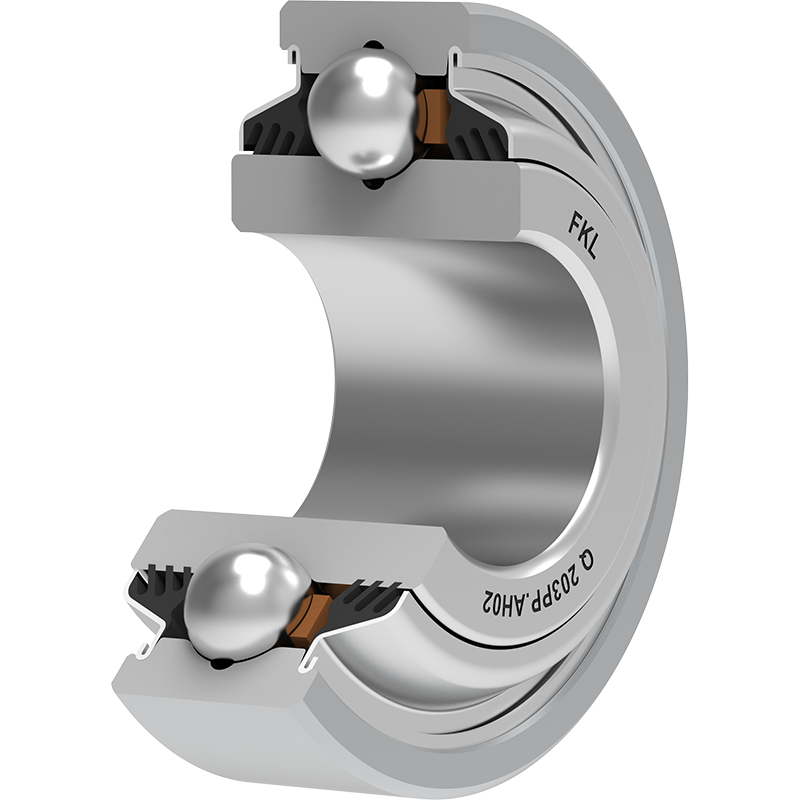

Q 203PP.AH02 FKL

Technical datasheet:

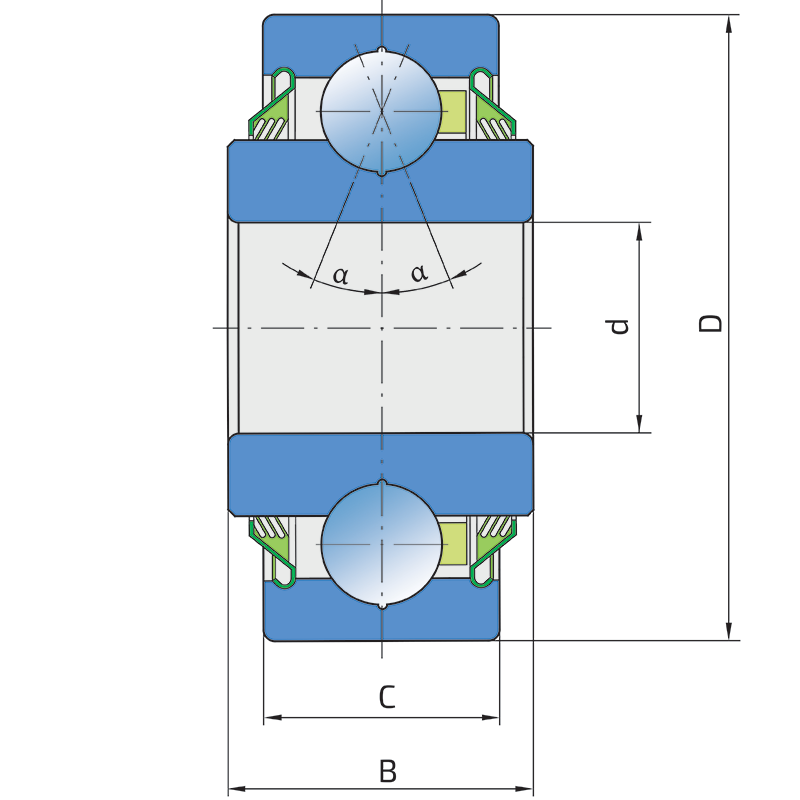

Cdyn	Dynamic load rating	15.6
Co	Static load rating	10
D	Outside diameter	40
d	Bore diameter	16.256
C	D-shape hole cut out dimension	12
kg	Mass	0.08
B	Width inner ring	18.29
α	Contact angle	25

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
