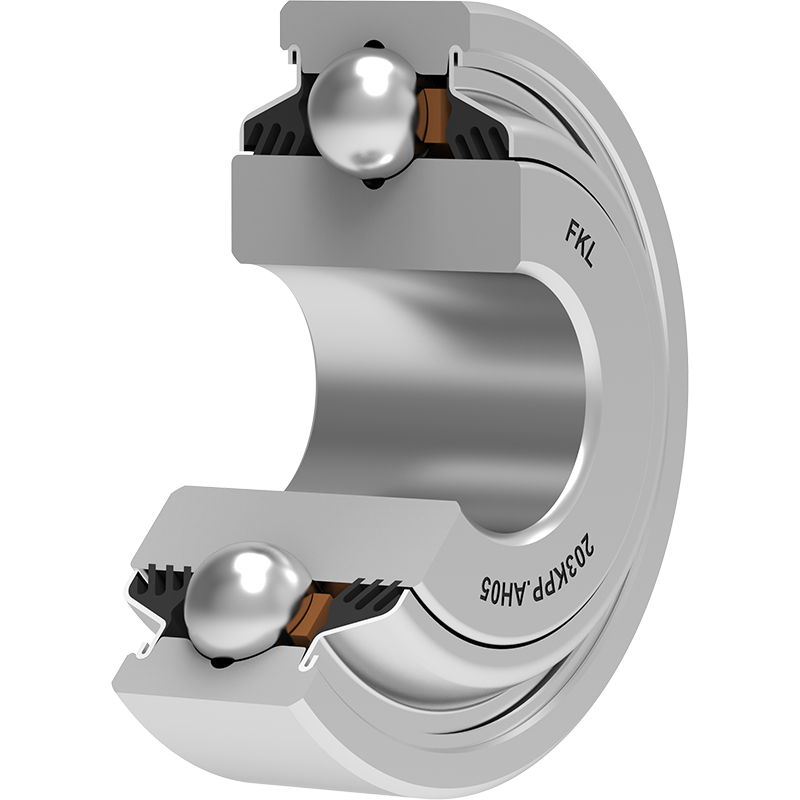

Q 203PP.AH05 FKL

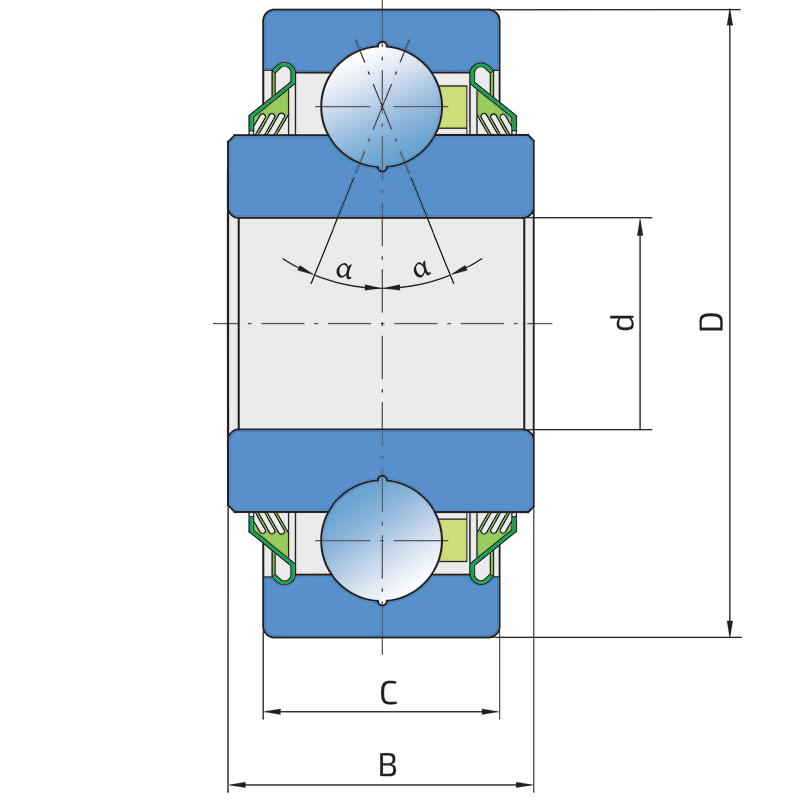

Technical datasheet:

Cdyn	Dynamic load rating	15.6
Co	Static load rating	10
D	Outside diameter	40
d	Bore diameter	13.081
C	D-shape hole cut out dimension	12
kg	Mass	0.091
B	Width inner ring	18.29
α	Contact angle	25

Interchange:

OEM	Manufacturer	Comments
3199369	LEMKEN
BB203KRR5	PEER
BB203KRR5	TIMKEN
CA095	AMAZONE
Q203KRR-CC.AH01	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
