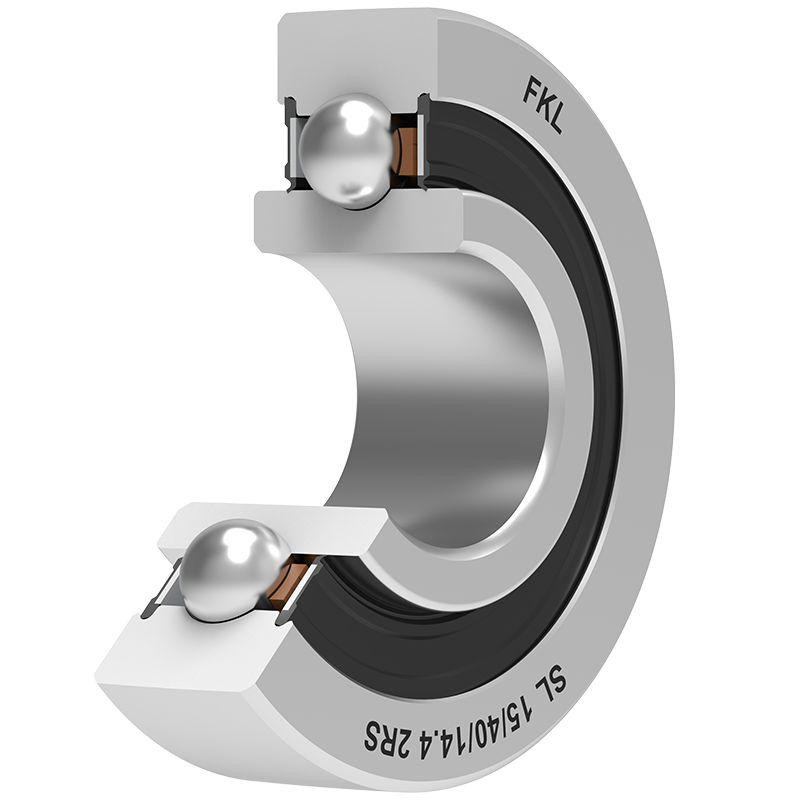

SL 15/40/14.4 2RS FKL

Technical datasheet:

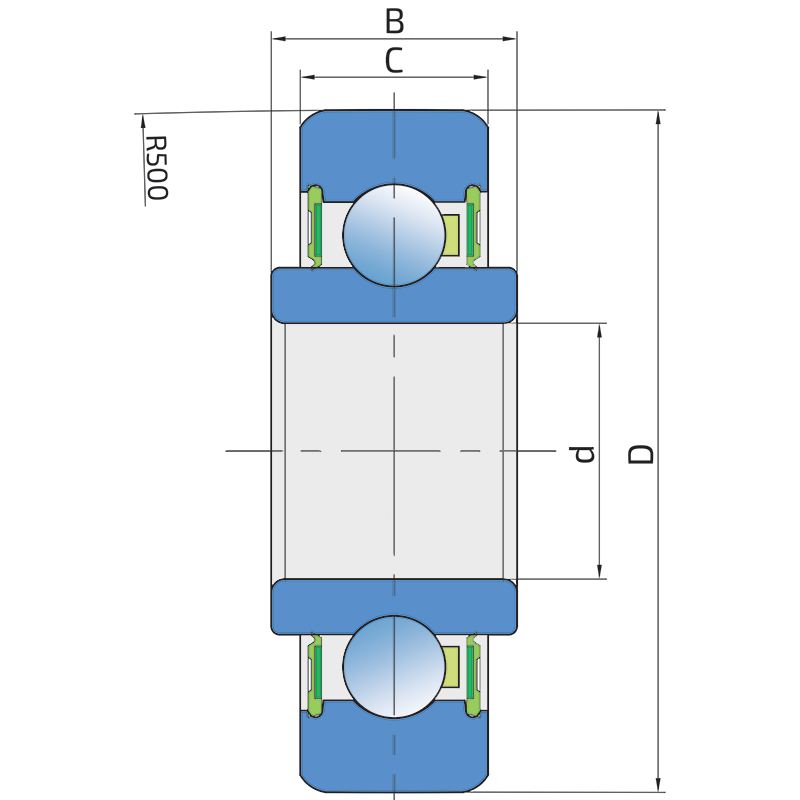

d	Bore diameter	15
D	Outside diameter	40
B	Width inner ring	14.4
C	Width outer ring	11
kg	Mass	0.08
Cdyn	Dynamic load rating	7.8
Co	Static load rating	3.75
Pu	Fatigue load limit	0.158

Interchange:

OEM	Manufacturer	Comments
8245-511-005-272	UNIA
LR202RRU	INA

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
