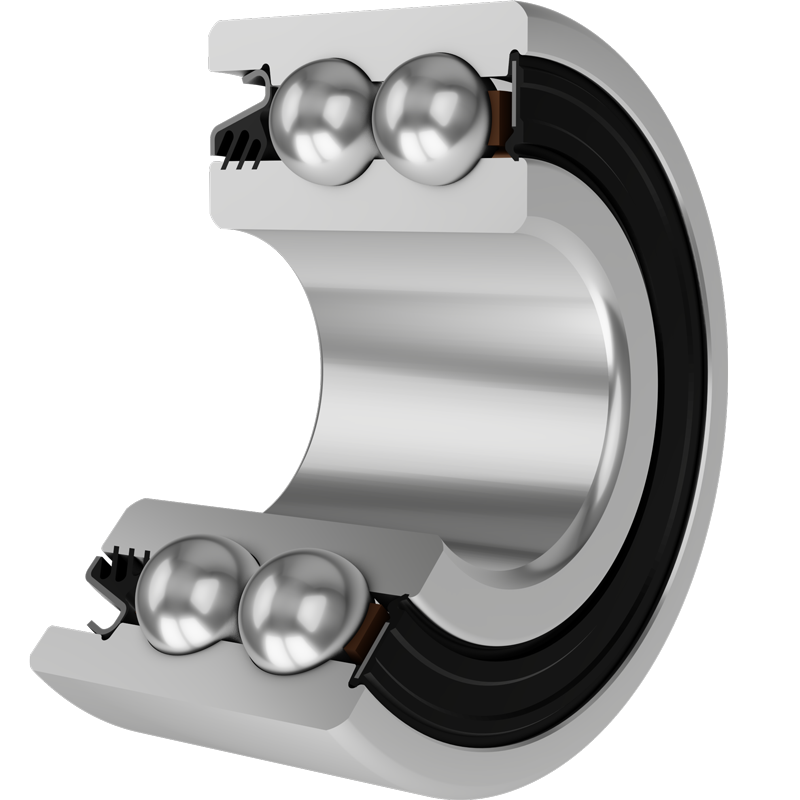

SL 3204 TRS FKL

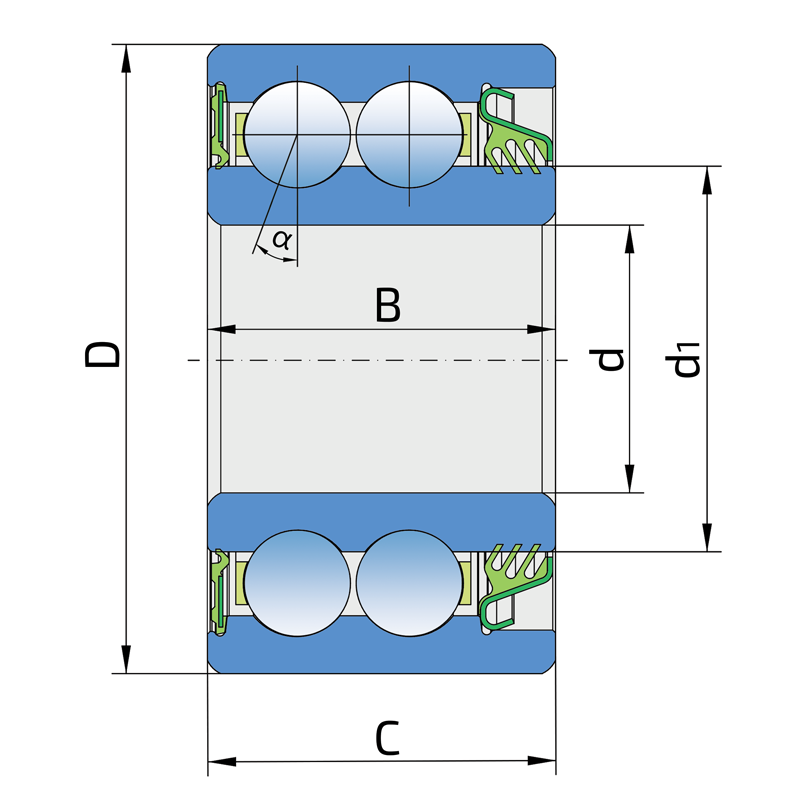

Technical datasheet:

d	Bore diameter	20
d1	Inner ring outside diameter	28.8
D	Outside diameter	47
C	Width outer ring	26
B	Width inner ring	26
α	Contact angle	25
kg	Mass	0.196
Cdyn	Dynamic load rating	18.8
Co	Static load rating	12.6
Pu	Fatigue load limit	0.529

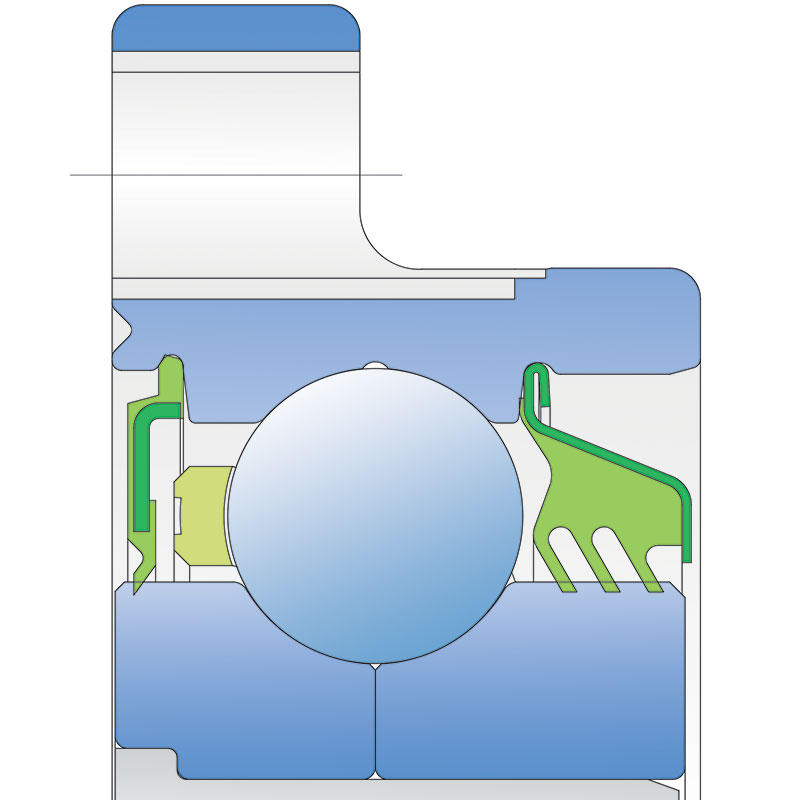

RS SEAL / T SEAL

RS seal on the base side and 3-lip seal on the front side which is exposed to contaminants. RS seal on the base side prevents grease from leaking out of the bearing, while the 3-lip seal also protects the bearing from the penetration of contaminants.
