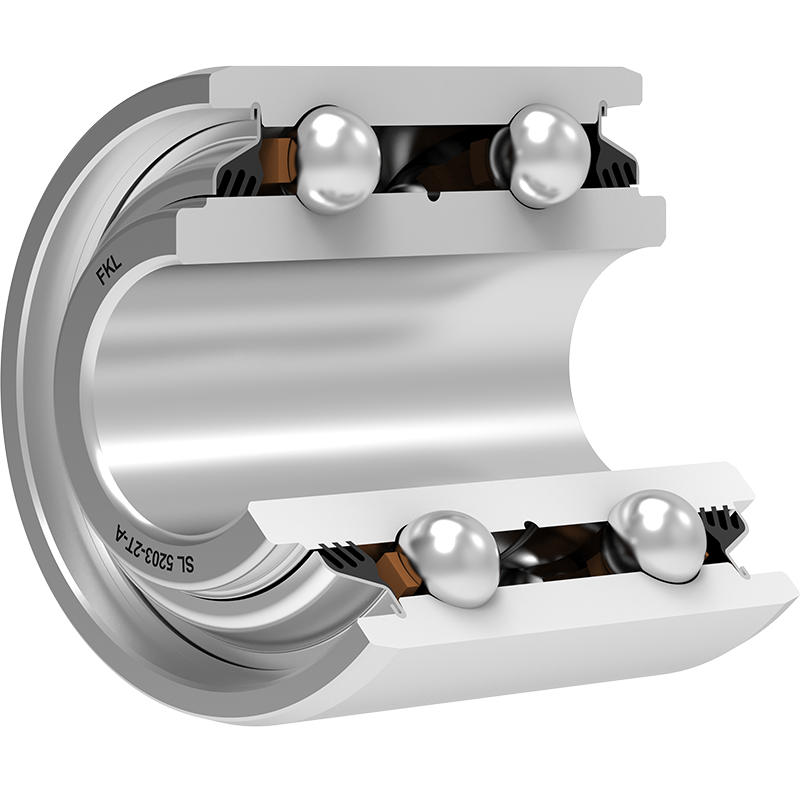

SL 5203-2T-A FKL

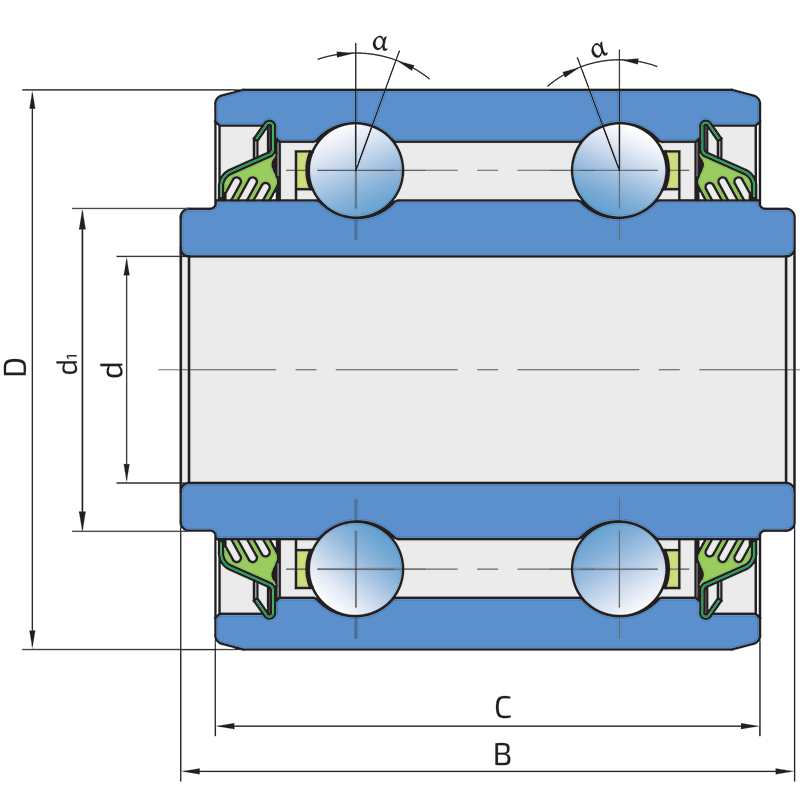

Technical datasheet:

Cdyn	Dynamic load rating	14.2
Co	Static load rating	8.8
D	Outside diameter	40
d	Bore diameter	16.256
d1	Inner ring outside diameter	23
C	D-shape hole cut out dimension	38.93
kg	Mass	0.218
B	Width inner ring	43.88
α	Contact angle	20

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
