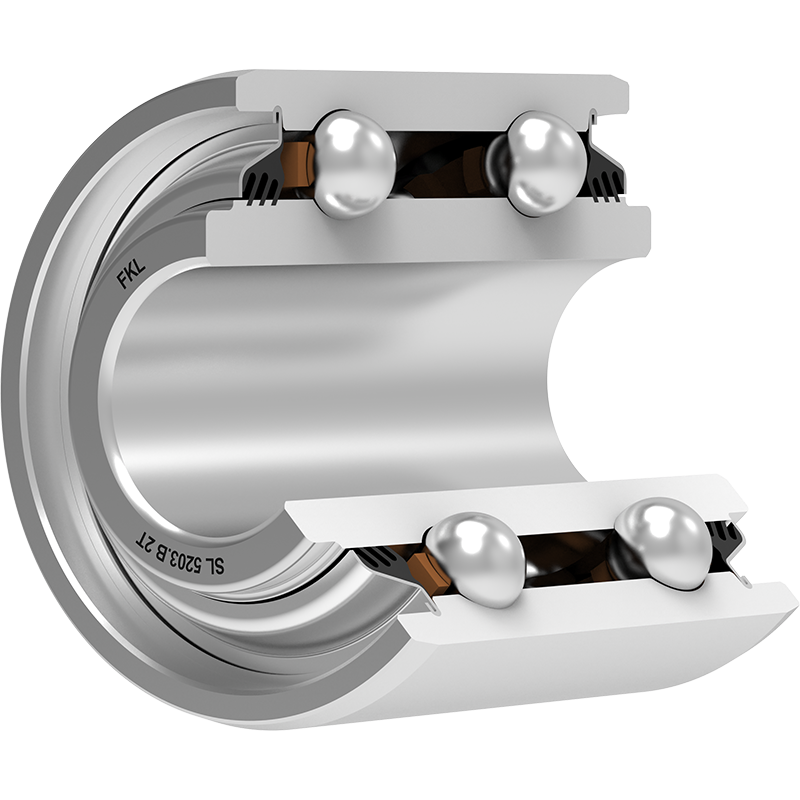

SL 5203.B-2T FKL

Technical datasheet:

d	Bore diameter	16.256
d1	Inner ring outside diameter	23.5
D	Outside diameter	40
B	Width inner ring	44.12
C	Width outer ring	39.12
α	Contact angle	30
kg	Mass	0.218
Cdyn	Dynamic load rating	14.2
Co	Static load rating	8.8
Pu	Fatigue load limit	0.37

Interchange:

OEM	Manufacturer	Comments
10161048	CASE
2200-95	MORRIS
306007A1	CASE
310926	HORSCH
324461A1	CASE
40-156	KRAUSE
465911	VADERSTAD
5203 KYY2	TIMKEN
5203KPP2	PEER
5203VVAN	BCA
7140A	MONOSEM
81101640	KUHN
822-170C	GREAT PLAINS
900125	MONOSEM
AC676096	KVERNELAND
AN212132	JOHN DEERE
CA130	AMAZONE
CA150	AMAZONE
DAC164044-2RS	KOYO
F04100150R	GASPARDO
FA6001444	GPZ
GA6171	KINZE

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
