SL 5203/17.B-2T FKL

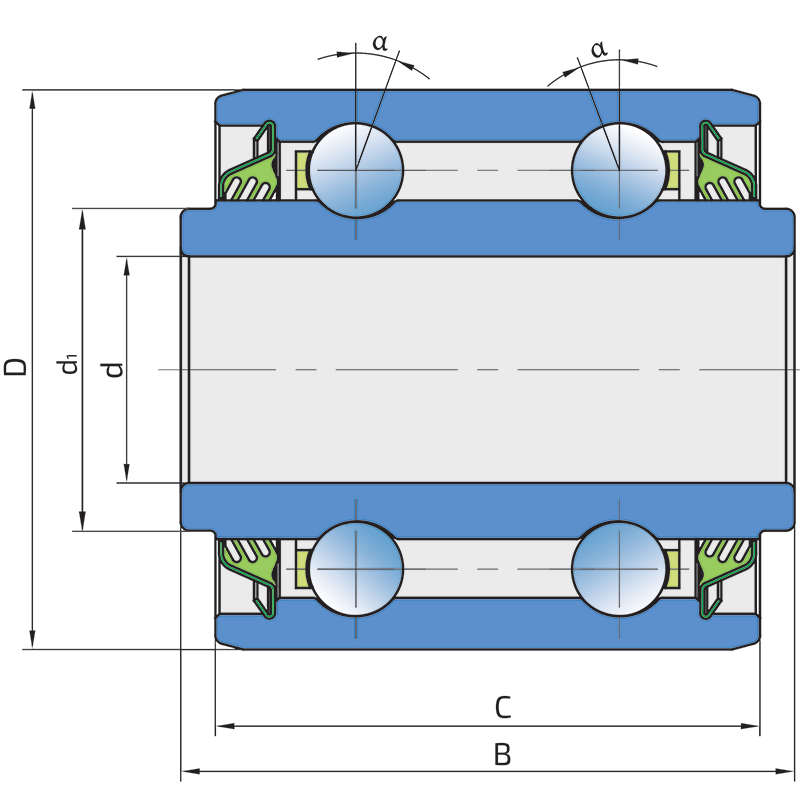

Technical datasheet:

d	Bore diameter	16.8
d1	Inner ring outside diameter	23
D	Outside diameter	40
C	D-shape hole cut out dimension	39.12
B	Width inner ring	44.12
α	Contact angle	30
kg	Mass	0.218
Cdyn	Dynamic load rating	14.21
Co	Static load rating	8.8
Pu	Fatigue load limit	0.37

Interchange:

OEM	Manufacturer	Comments
5203KPP52-R-A121	PEER

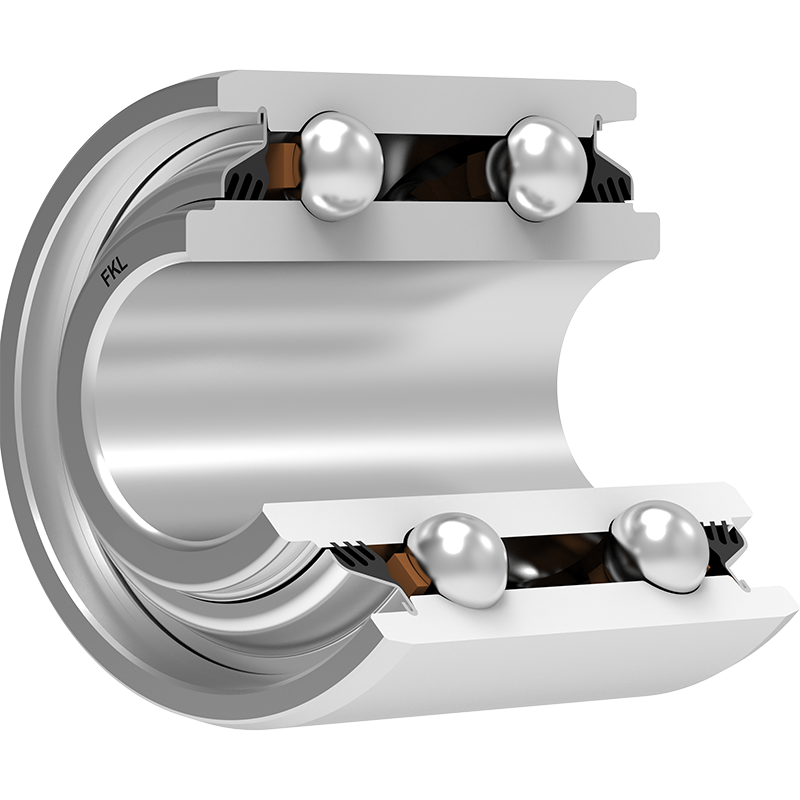

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
