SL 5204-ST FKL

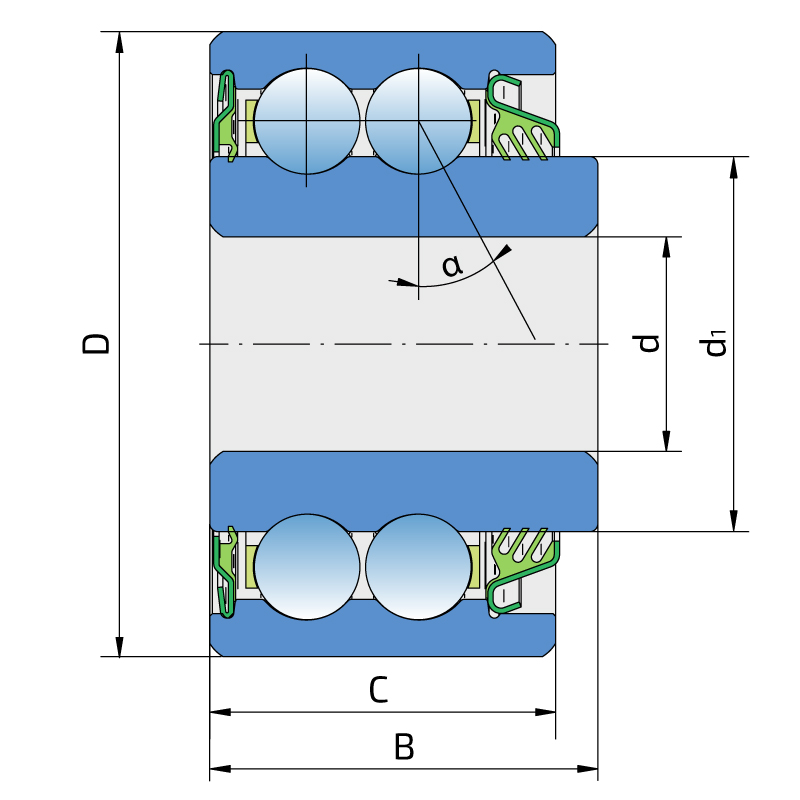

Technical datasheet:

d	Bore diameter	16.129
d1	Inner ring outside diameter	28.2
D	Outside diameter	47
B	Width inner ring	29.175
C	Width outer ring	26
α	Contact angle	25
kg	Mass	0.227
Cdyn	Dynamic load rating	18.8
Co	Static load rating	12.6
Pu	Fatigue load limit	0.529

Interchange:

OEM	Manufacturer	Comments
5204KRP51	PEER	John Deere Case IH Precision Planting

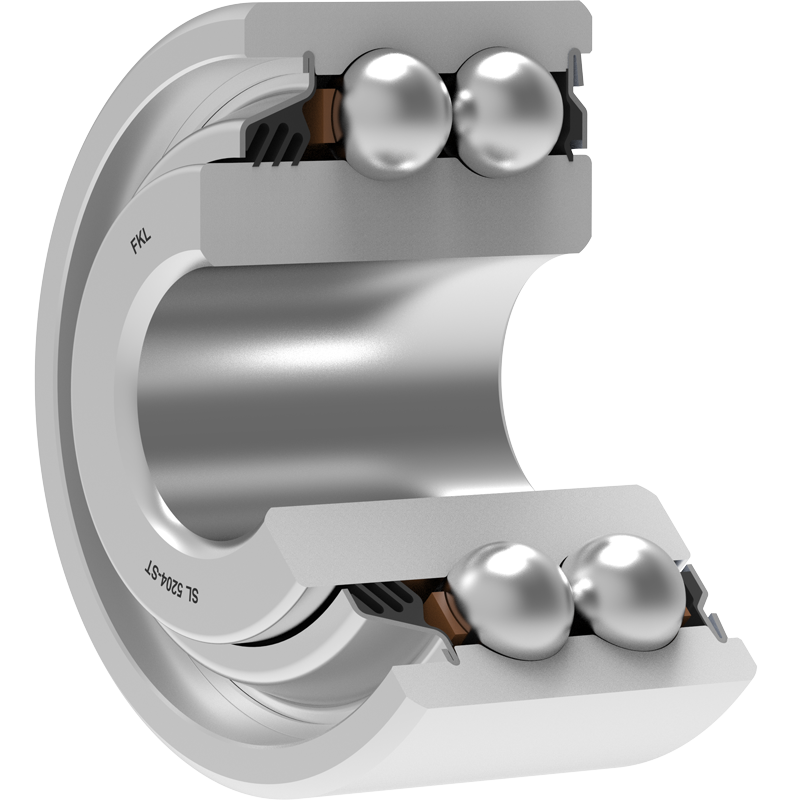

S SEAL / T SEAL

S seal on the base side and 3-lip seal on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration.
