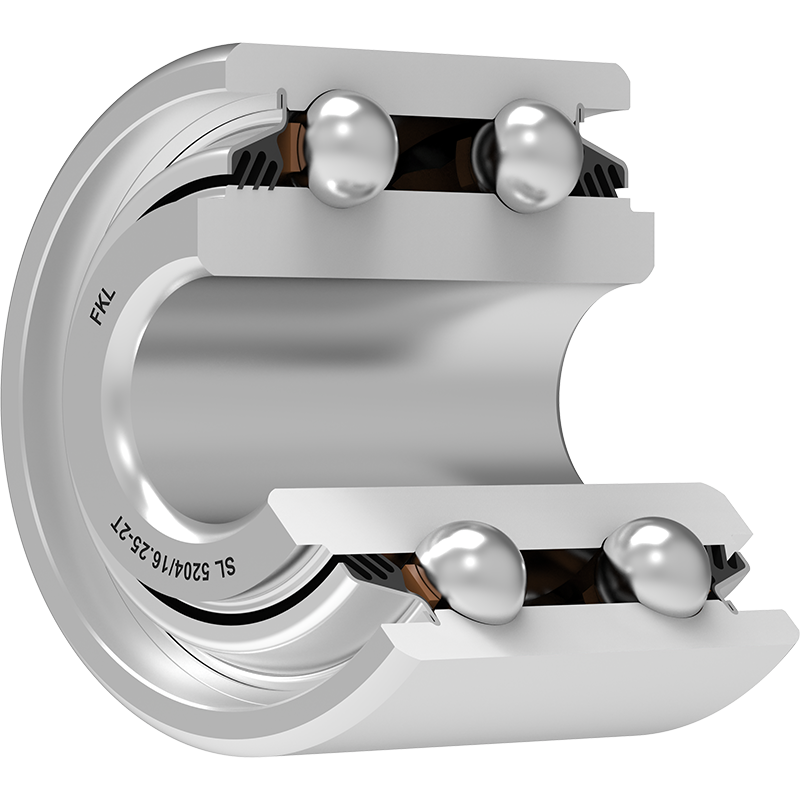

SL 5204/16.25-2T FKL

Technical datasheet:

Cdyn	Dynamic load rating	18.8
Co	Static load rating	12.6
D	Outside diameter	47
d	Bore diameter	16.25
d1	Inner ring outside diameter	27
C	D-shape hole cut out dimension	39
kg	Mass	0.326
B	Width inner ring	44
α	Contact angle	25

Interchange:

OEM	Manufacturer	Comments
5204-KPP55-R-A248	PEER
F04100154	GASPARDO

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
