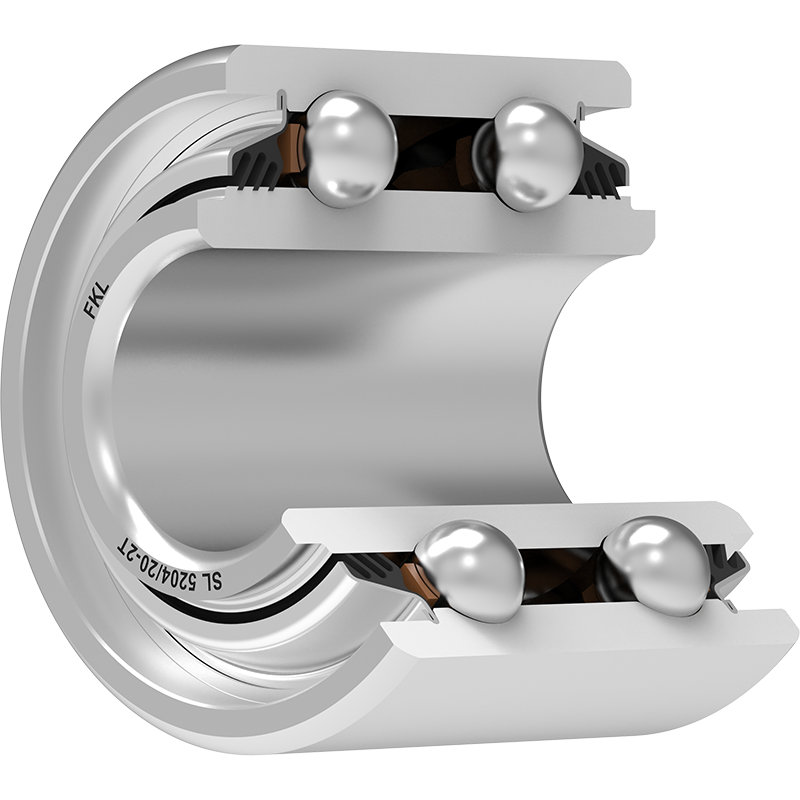

SL 5204/20-2T FKL

Technical datasheet:

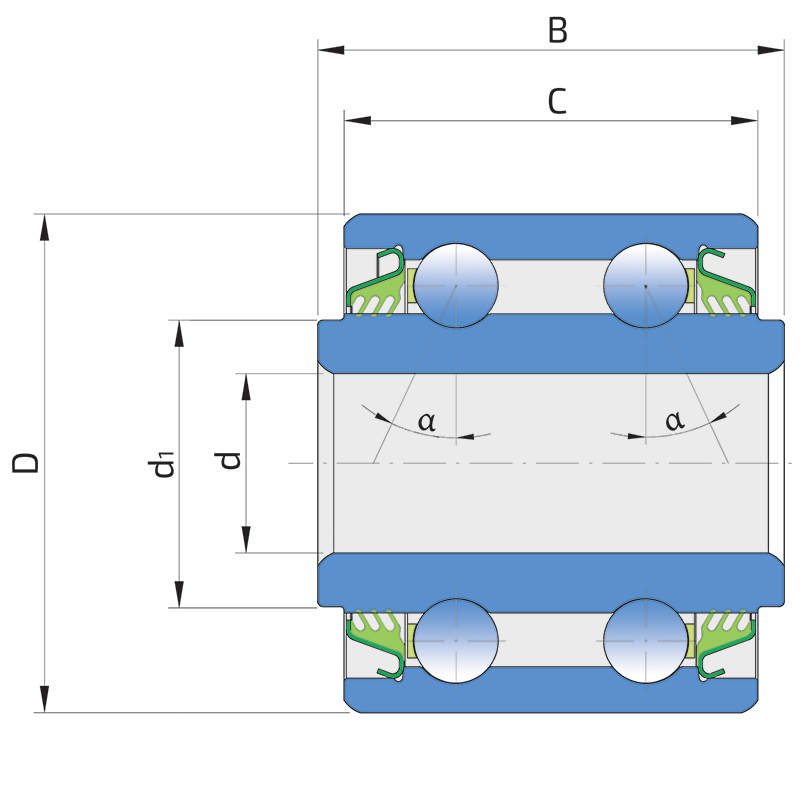

d	Bore diameter	20
d1	Inner ring outside diameter	27
D	Outside diameter	47
B	Width inner ring	44
C	D-shape hole cut out dimension	39
α	Contact angle	25
kg	Mass	0.29
Cdyn	Dynamic load rating	18.8
Co	Static load rating	12.6
Pu	Fatigue load limit	0.529

Interchange:

OEM	Manufacturer	Comments
5204 KYY8	RBF
5204KPP53	PEER
F04010232R	GASPARDO

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
