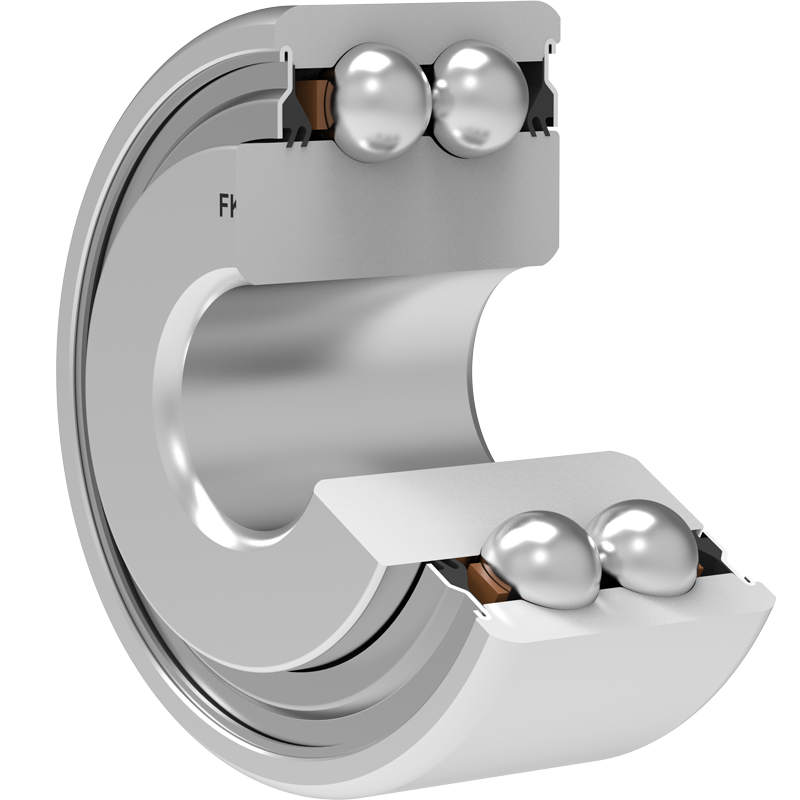

SL 5205 2D FKL

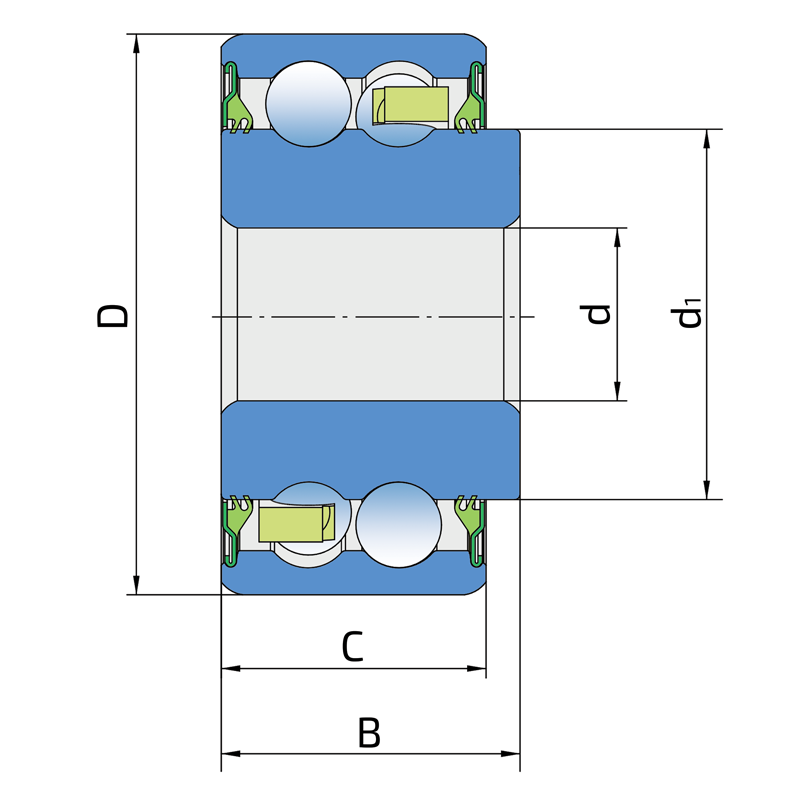

Technical datasheet:

d	Bore diameter	16.027
d1	Outer diameter inner ring	34.35
D	Outside diameter	52
B	Width inner ring	27.711
C	Width outer ring	24.562
α	Contact angle	25
kg	Mass	0.288
Cdyn	Dynamic load rating	21.6
Co	Static load rating	14.3
Pu	Fatigue load limit	0.601

Interchange:

OEM	Manufacturer	Comments
5205YY54	PEER	John Deere Case IH Precision Planting Great Plains

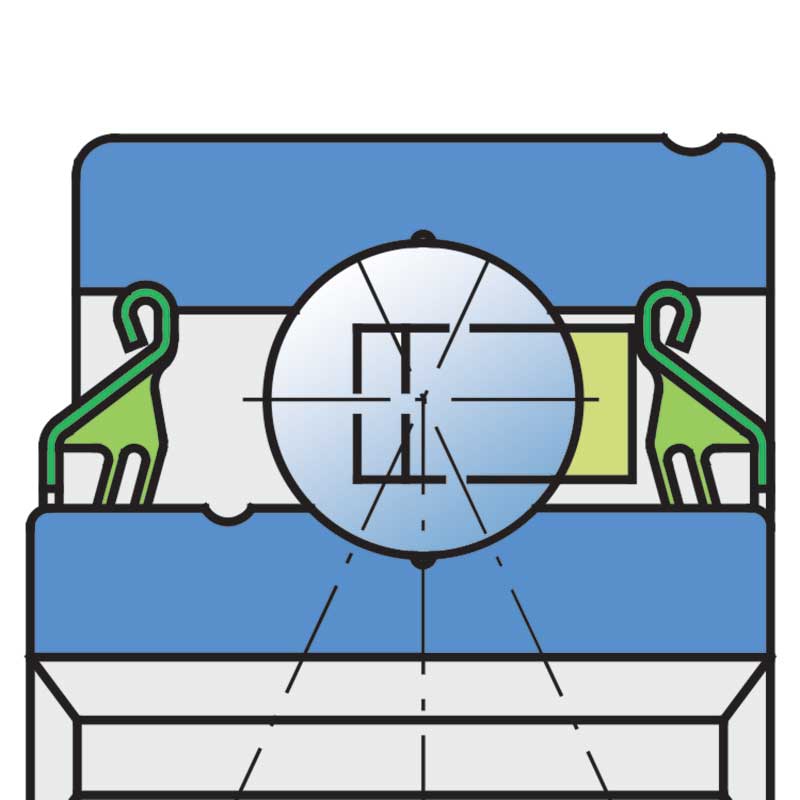

D SEAL / D SEAL (2D)

The double lip seal provides twice as good a seal as the S seal, while the maximum permitted rotational speed is adequately lower, due to the greater friction of the rubber lips against the steel inner ring. However, this rotational speed may be higher than with a 3-lip seal, up to 1500rpm. The sheet metal part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The main area of application of bearings with such sealing are agricultural and construction machines at installation place where the rotational speed is up to 1500 rpm.
