Product number:

SL 53-014-2T

Brand:

Product name:

bearing

Inquiry Subscribe

SL 53-014-2T FKL

Technical datasheet:

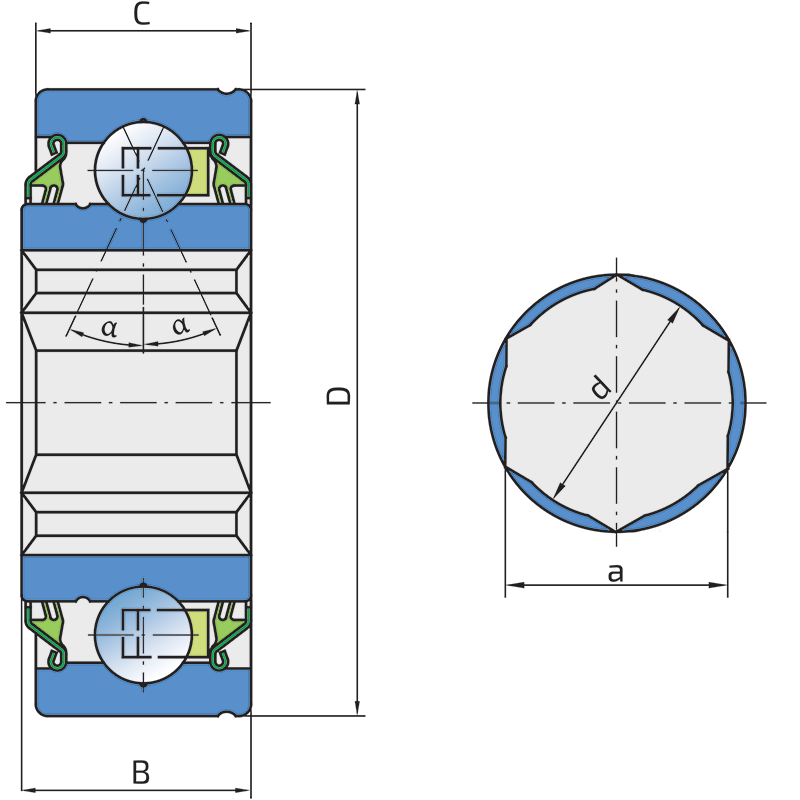

Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
D	Outside diameter	53.086
d	Bore diameter	22.8
C	D-shape hole cut out dimension	18.288
kg	Mass	0.174
B	Width inner ring	19.4
α	Contact angle	25

Interchange:

OEM	Manufacturer	Comments
188-006V	GREAT PLAINS

D SEAL / D SEAL (2D)

The double lip seal provides twice as good a seal as the S seal, while the maximum permitted rotational speed is adequately lower, due to the greater friction of the rubber lips against the steel inner ring. However, this rotational speed may be higher than with a 3-lip seal, up to 1500rpm. The sheet metal part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The main area of application of bearings with such sealing are agricultural and construction machines at installation place where the rotational speed is up to 1500 rpm.
