Product number:

SL 5316 2T

Brand:

Product name:

bearing

Sizes:

16X53,08X19,4/18,288

Replacements:

205VVH 205DDS-5/8 AA205DD JOHN DEERE 40-172 KRAUSE 188-001V Great Plains 205 PP13 - PEER

Inquiry Subscribe

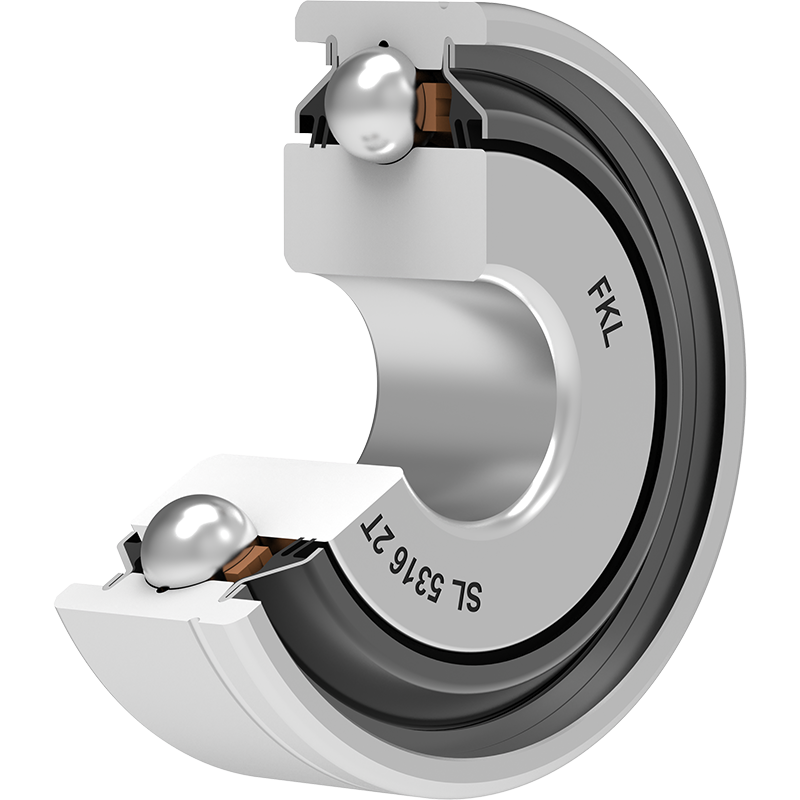

SL 5316 2T FKL

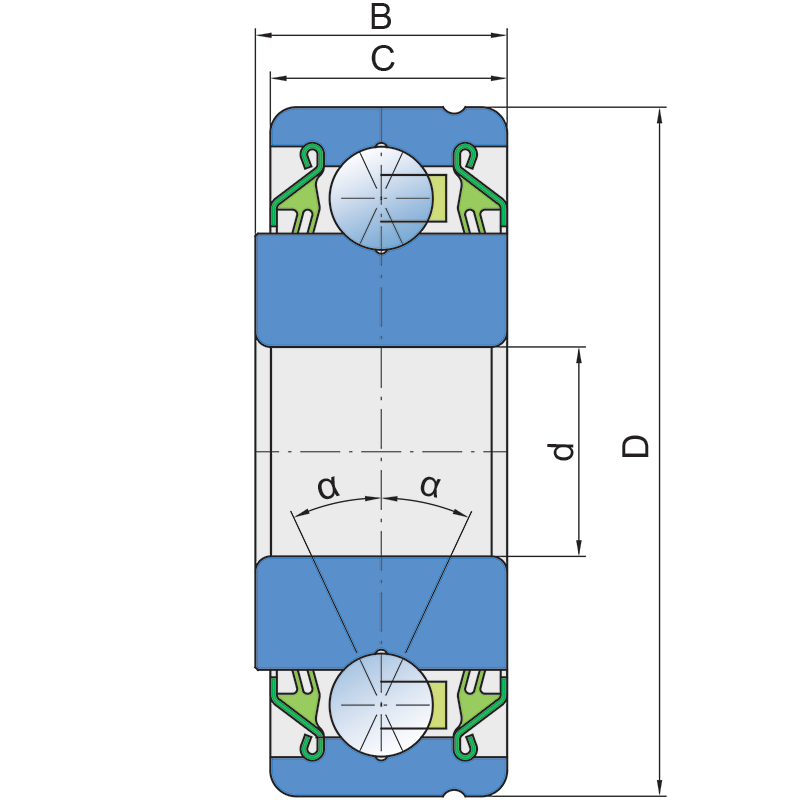

Technical datasheet:

Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
D	Outside diameter	53.086
d	Bore diameter	16
C	D-shape hole cut out dimension	18.288
kg	Mass	0.28
B	Width inner ring	19.4
α	Contact angle	25

Interchange:

OEM	Manufacturer	Comments
188-001V	GREAT PLAINS
205DDS-5/8	FAFNIR
205GP	China
205PP13	PEER
205VVH	BCA
40-172	KUHN
AA205DD	DEUTZ FAHR
AA205DD	FAFNIR

D SEAL / D SEAL (2D)

The double lip seal provides twice as good a seal as the S seal, while the maximum permitted rotational speed is adequately lower, due to the greater friction of the rubber lips against the steel inner ring. However, this rotational speed may be higher than with a 3-lip seal, up to 1500rpm. The sheet metal part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The main area of application of bearings with such sealing are agricultural and construction machines at installation place where the rotational speed is up to 1500 rpm.
