Product number:

SL 2 5203-2T

Brand:

Product name:

bearing

Sizes:

16,25X40X72

Replacements:

F04100149 GASPARDO SL2 5203B-2T 04100149

Inquiry Subscribe

SL2 5203.B-2T FKL

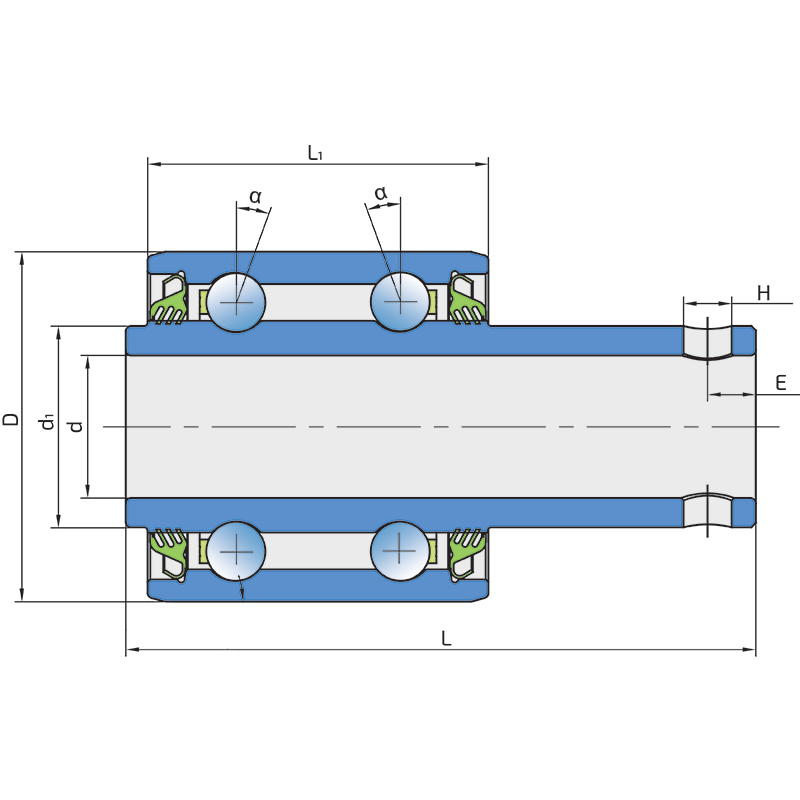

Technical datasheet:

d	Bore diameter	16.3
d1	Inner ring outside diameter	23
D	Outside diameter	40
L	Total length	72
C	Width outer ring	39.12
H	Hole diameter	6
E	Hole center line distance to the side face of the inner ring	5.5
α	Contact angle	30
kg	Mass	0.267
Cdyn	Dynamic load rating	14.2
Co	Static load rating	8.8
Pu	Fatigue load limit	0.37

Interchange:

OEM	Manufacturer	Comments
F04100149	GASPARDO

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
