Product number:

SLE 47-16S-2RS

Brand:

Product name:

bearing

Sizes:

16,4/16,4X47X12/25

Replacements:

G14830390 GASPARDO PN00039 14830390 Gaspardo 6005 2RS SQ25

Inquiry Subscribe

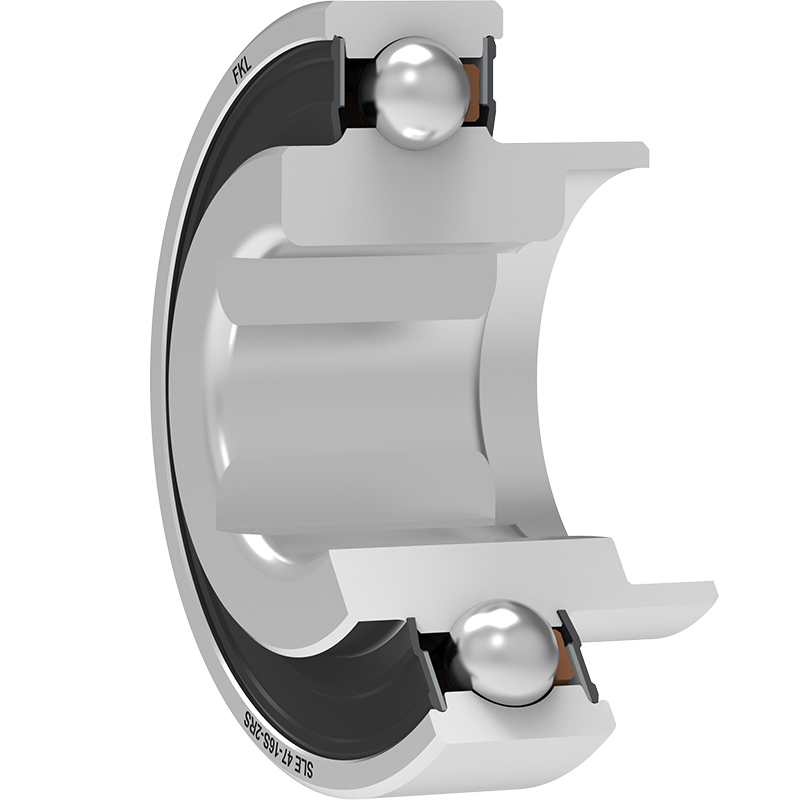

SLE 47-16S-2RS FKL

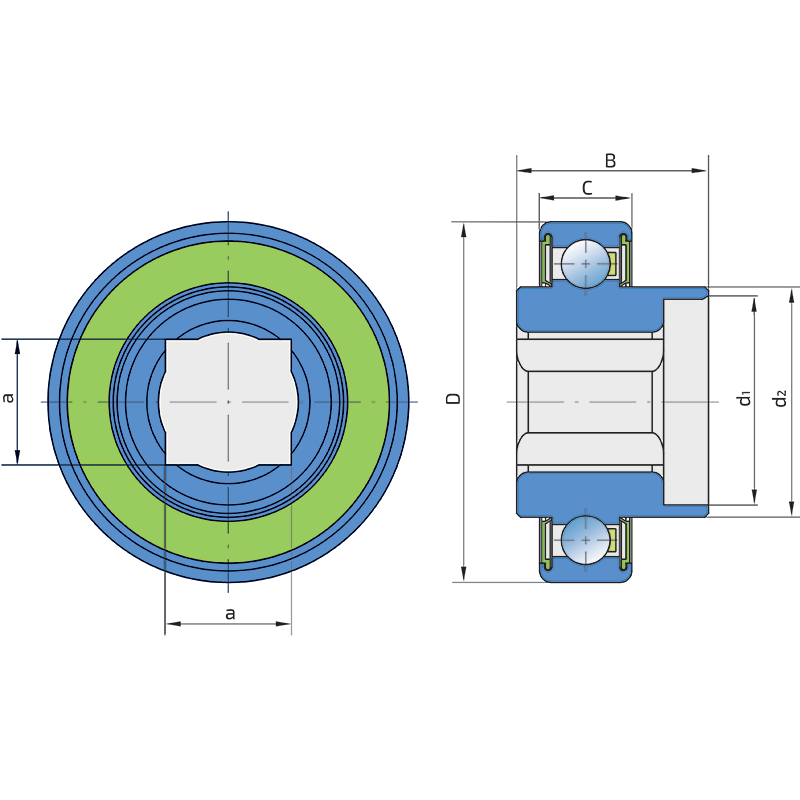

Technical datasheet:

a	Shaft size	16.4
d1	The inside diameter of the collar of the inner ring	26.8
d2	Outer diameter inner ring	30
D	Outside diameter	47
B	Width inner ring	25
C	D-shape hole cut out dimension	12
kg	Mass	0.11
Cdyn	Dynamic load rating	10.5
Co	Static load rating	6.1
Pu	Fatigue load limit	0.256

Interchange:

OEM	Manufacturer	Comments
6005-2RS SQ25	not identified
G14830390	GASPARDO
PN00039	RBF

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
