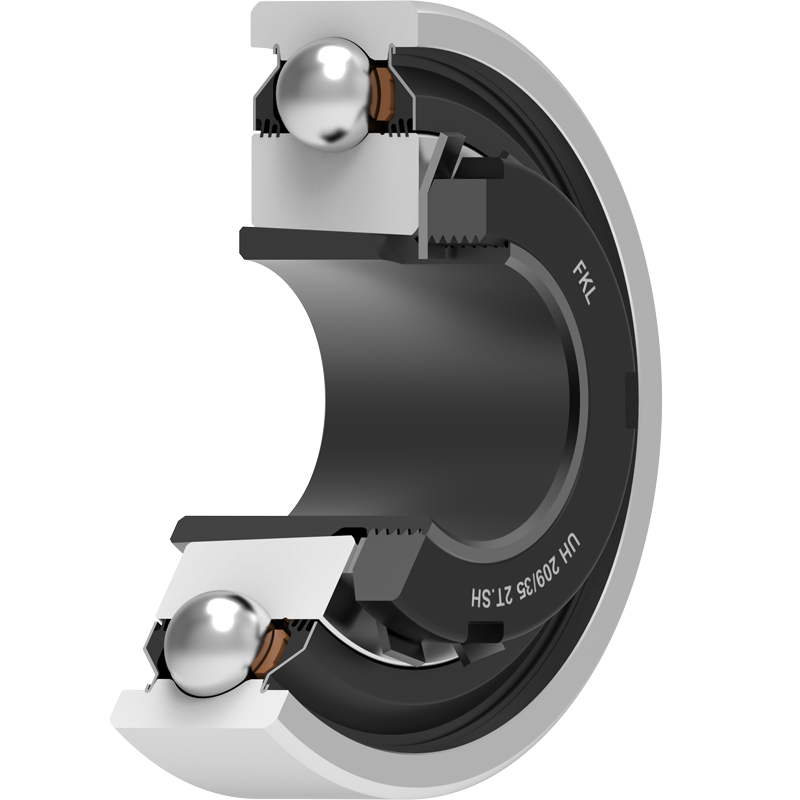

UH 209/35 2T.SH FKL

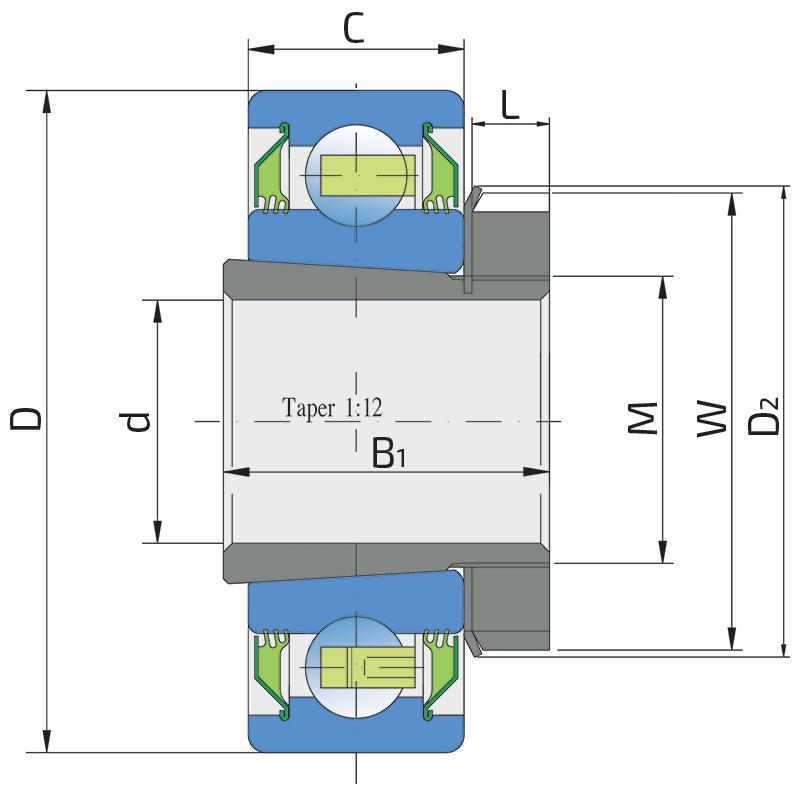

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	85
W	KM nut outside diameter	58
D2	MB Washer outside diameter	62
B1	Width adapter sleeve	36
C	Width outer ring	23
L	KM nut width	9
M	Thread adapter sleeve	40x1.5
kg	Mass	0.7
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.91

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
