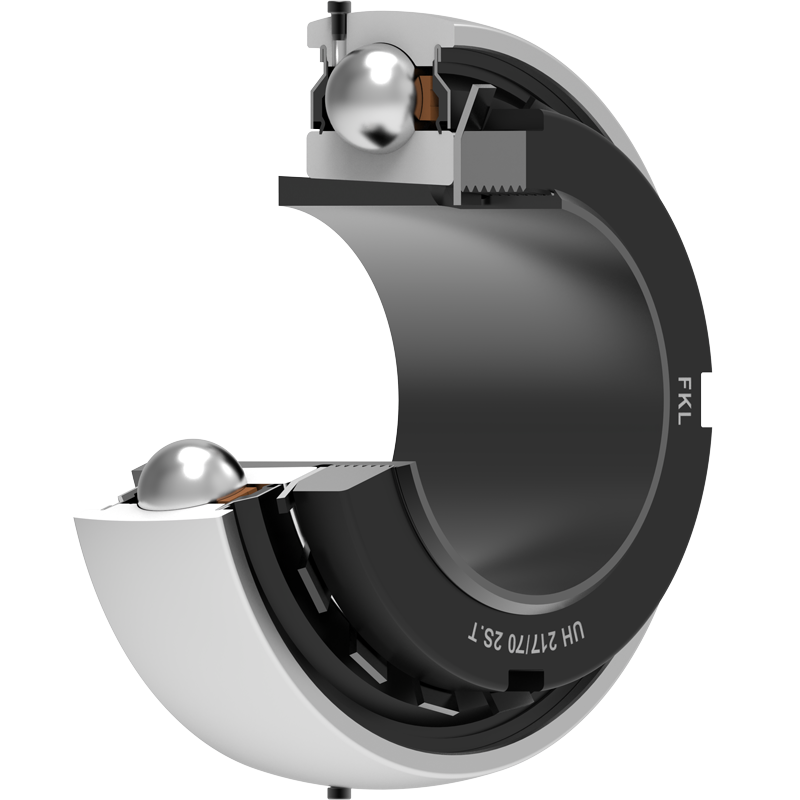

UH 217/70 2S.T FKL

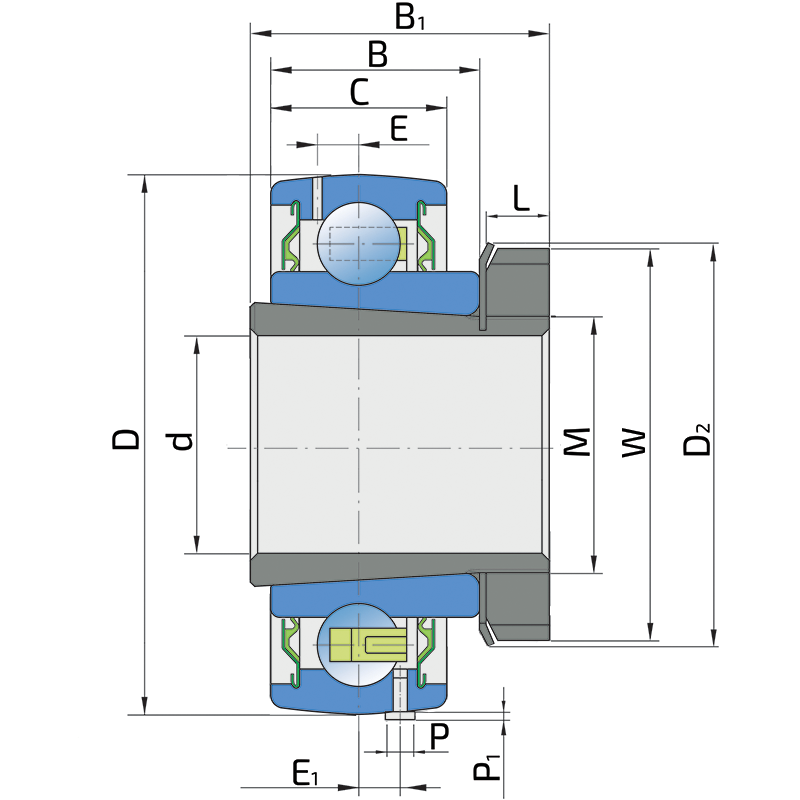

Technical datasheet:

d	Bore diameter	70
D	Outside diameter	150
W	KM nut outside diameter	105
D2	MB Washer outside diameter	112
B	Width inner ring	45
B1	Width adapter sleeve	70
C	Width outer ring	39
L	KM nut width	15
E	Distance from raceway centre to the hole for lubrication	12
E1	Distance from raceway center to the stopping pin	12
M	Thread adapter sleeve	80x2
P	Stopping pin diameter	5
P1	Stopping pin higth	2.8
kg	Mass	3.87
Cdyn	Dynamic load rating	85
Co	Static load rating	65
Pu	Fatigue load limit	2.73

Interchange:

OEM	Manufacturer	Comments
680314	HARP

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
