Product number:

US 209 2S.H.T.C21

Brand:

Product name:

bearing

Inquiry Subscribe

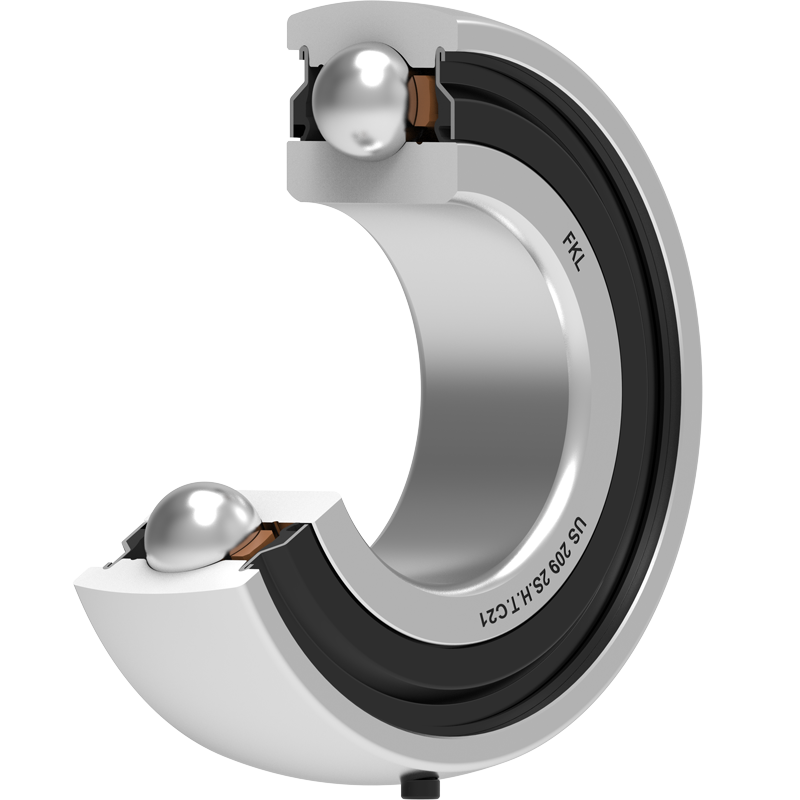

US 209 2S.H.T.C21 FKL

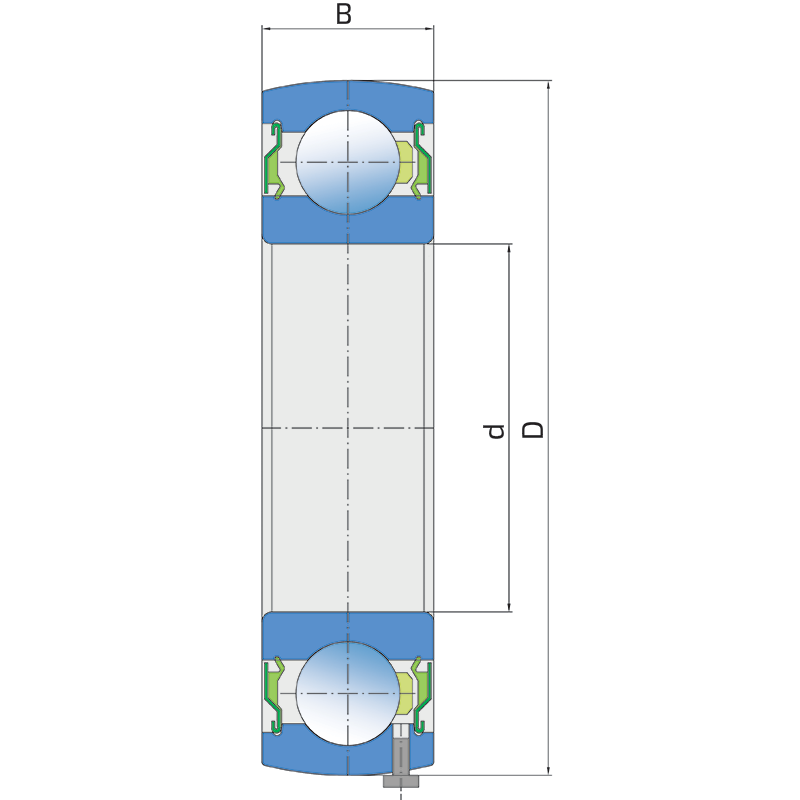

Technical datasheet:

d	Bore diameter	45
D	Outside diameter	85
B	Width inner ring	21
kg	Mass	0.415
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.91

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
