Product number:

VP-M20x1.5/40/72-R (L)

Brand:

Product name:

bearing

Inquiry Subscribe

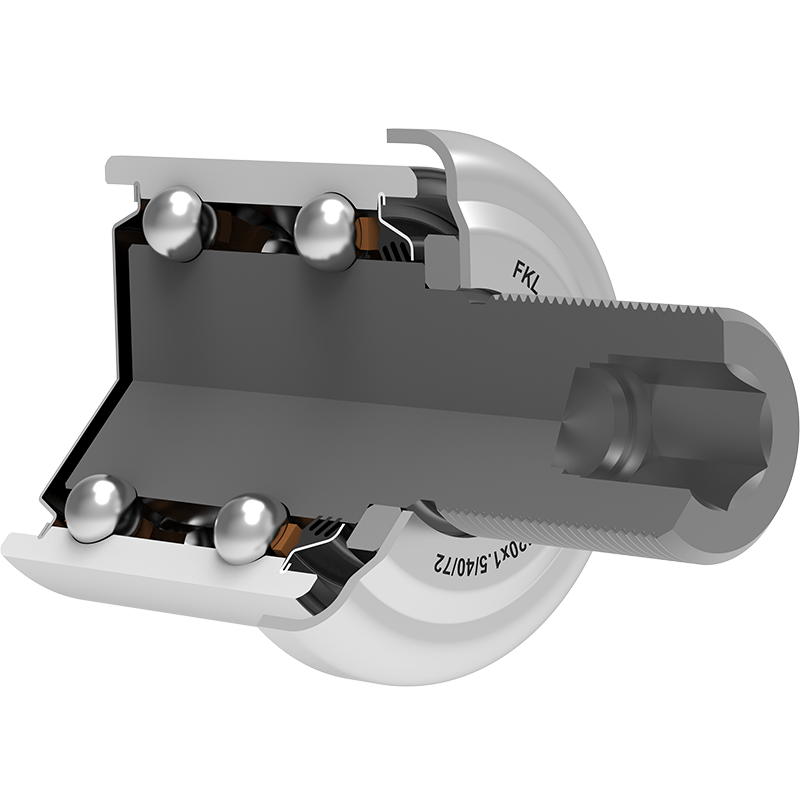

VP-M20x1.5/40/72-R(L) FKL

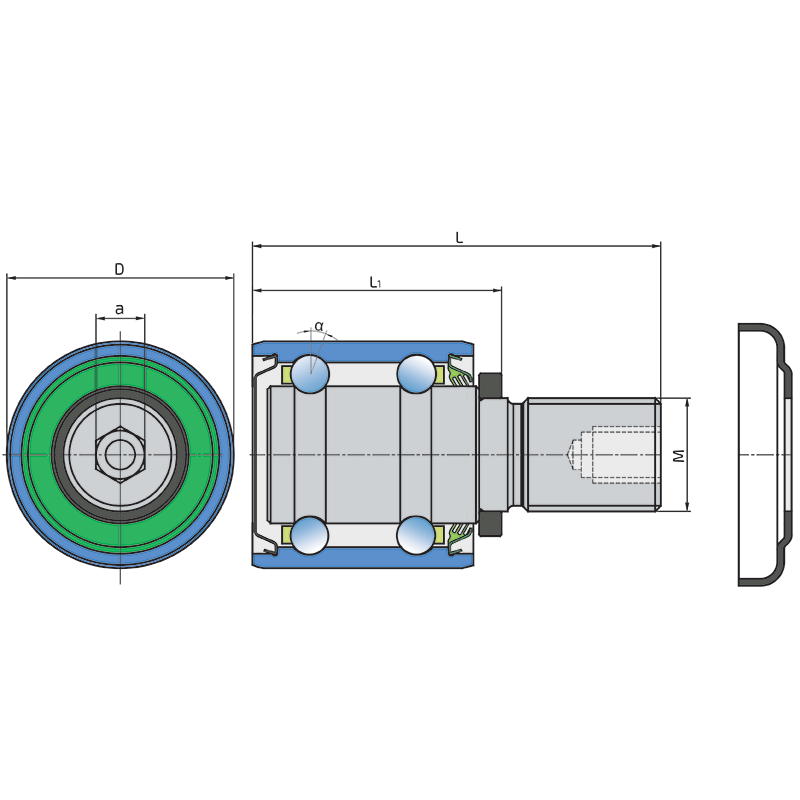

Technical datasheet:

a	Hexagonal bore	10
d	Bore diameter	24.2
D	Outside diameter	40
L	Total length	72
L1	Installation length	44
M	Outher Thread	M20x1.5
α	Contact angle	20
kg	Mass	0.44
Cdyn	Dynamic load rating	14.2
Co	Static load rating	8.8
Pu	Fatigue load limit	0.37

Interchange:

OEM	Manufacturer	Comments
VP-M20x1.5/40/72-R(L)	TECHNIKA-SERVICE

SHEET METAL SHIELD / T SEAL

Sealing SHEET METAL SHIELD / T SEAL Sheet metal shield on one side and triple seal on the other. The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.
