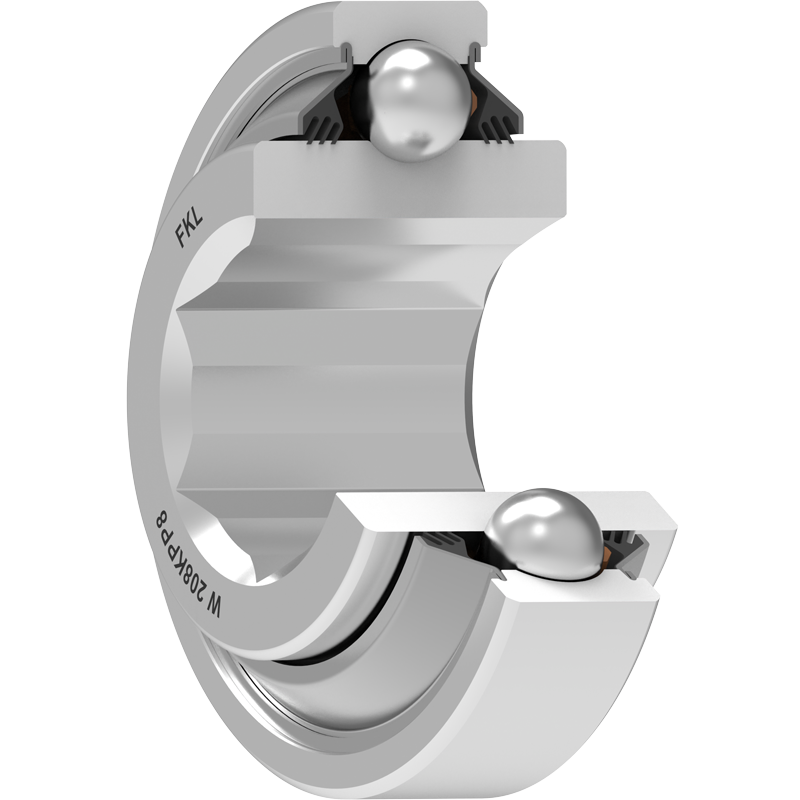

W 208KPP8 FKL

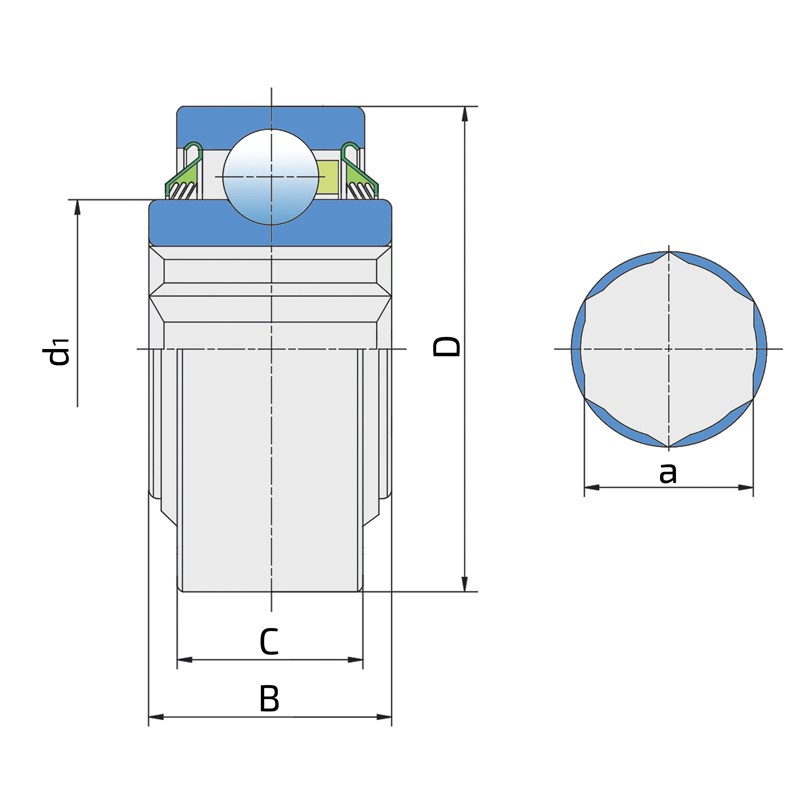

Technical datasheet:

D	Outside diameter	80
B	Width inner ring	36.5
C	Width outer ring	18
d1	Outer diameter inner ring	52
a	Shaft size	31.78
kg	Mass	0.67
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
208KRR8	XLZ
HPS102GP	BCA
SBX08A54LLSC3	NTN
W208KPP8	INA
W208PP16	INA
W208PP21	TORRINGTON
W208PP21	TIMKEN
W208PP21	FAFNIR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
