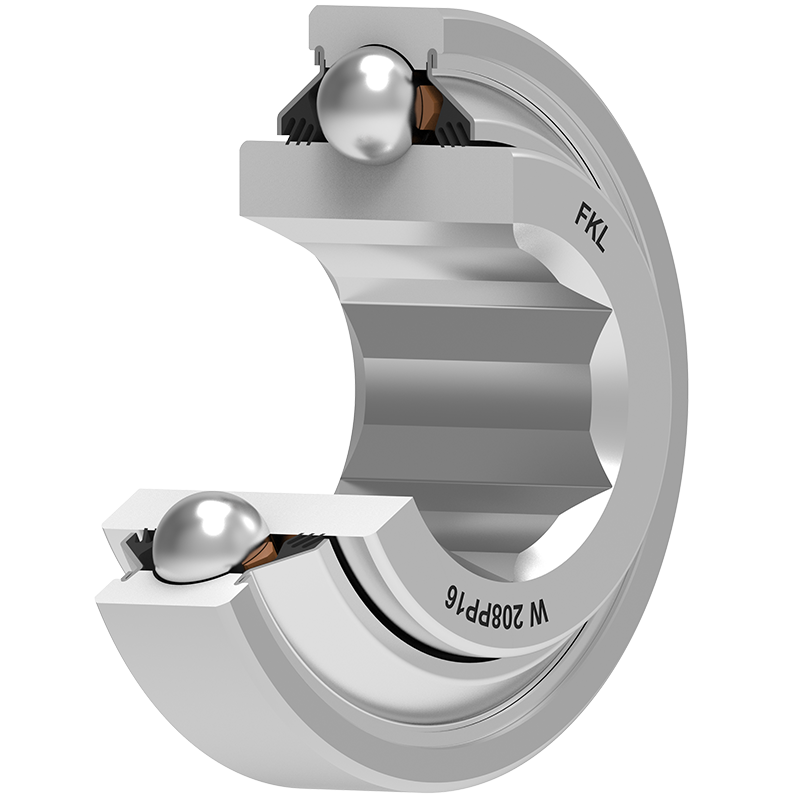

W 208PP16 FKL

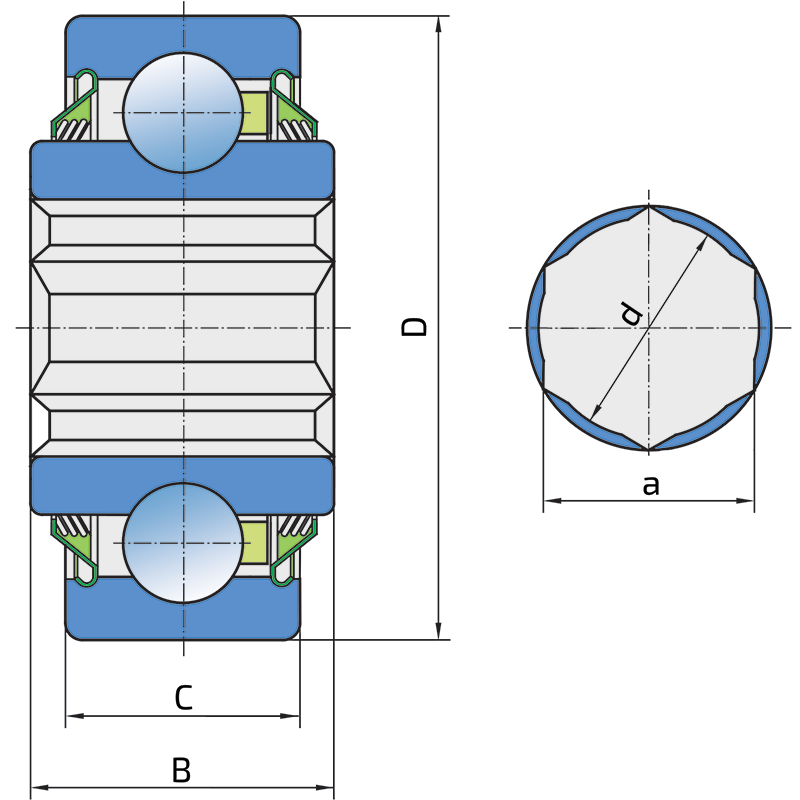

Technical datasheet:

a	Size of the hexagon	31.78
d	Bore diameter	32.5
D	Outside diameter	80
B	Width inner ring	36.5
C	D-shape hole cut out dimension	18
kg	Mass	0.68
Cdyn	Dynamic load rating	30.7
Co	Static load rating	19
Pu	Fatigue load limit	0.8

Interchange:

OEM	Manufacturer	Comments
HPC104TPA	BCA
W 208PP3AH23	TIMKEN
W208PP16	INA
W208PP21	FAFNIR
W208PP21	PEER

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
