W 208PP4 FKL

Technical datasheet:

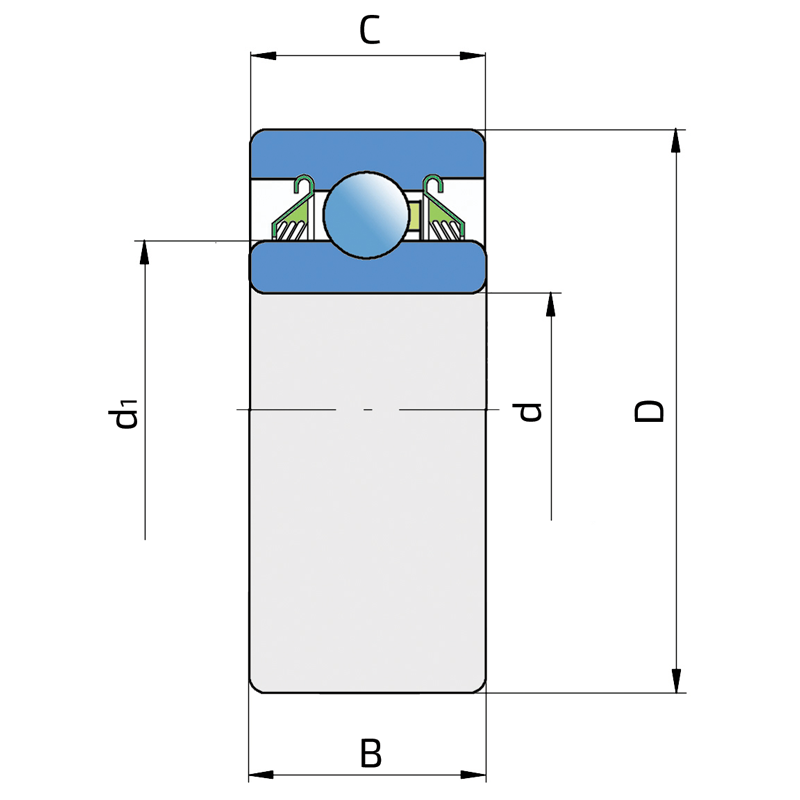

d	Bore diameter	30.17
D	Outside diameter	80
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	52
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
kg	Mass	0.76

Interchange:

OEM	Manufacturer	Comments
W208PP4	INA

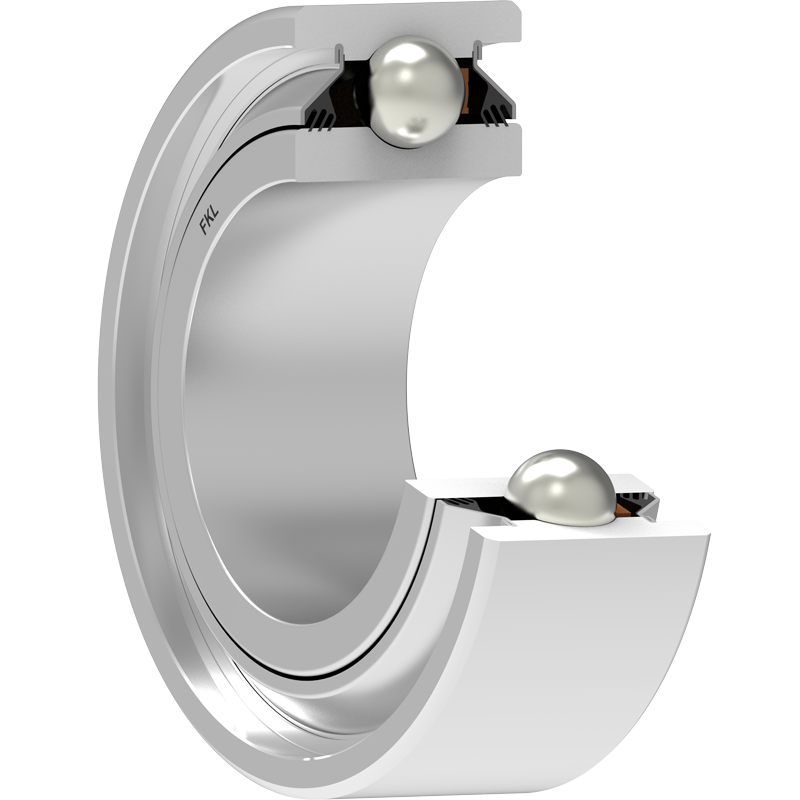

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
