W 208PP8 FKL

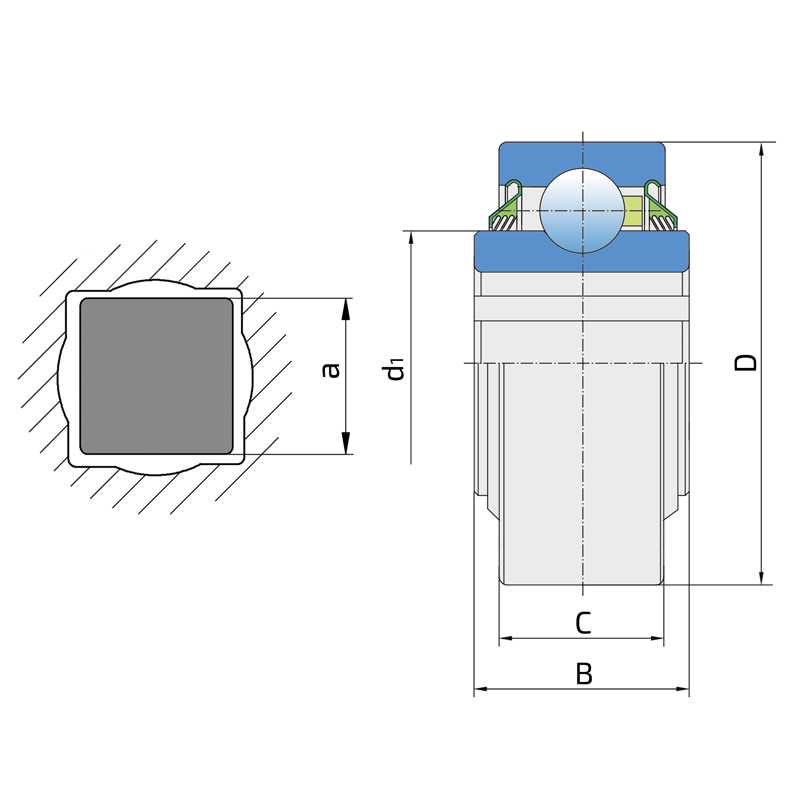

Technical datasheet:

D	Outside diameter	80
B	Width inner ring	36.5
C	Width outer ring	30.1
d1	Outer diameter inner ring	52
a	Shaft size	30
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
kg	Mass	0.75

Interchange:

OEM	Manufacturer	Comments
6AS08-1.1/8C3	NTN
6AS09-11/8	NTN
W208PP8	INA
W208PP8	FAFNIR
W208PP8	PFI
W208PP8	PEER

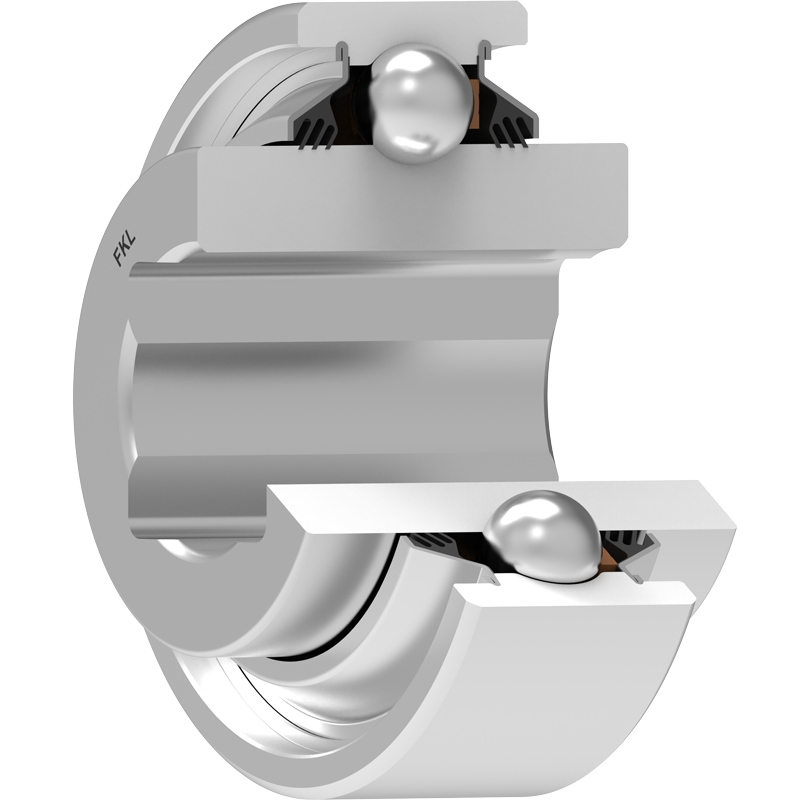

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
