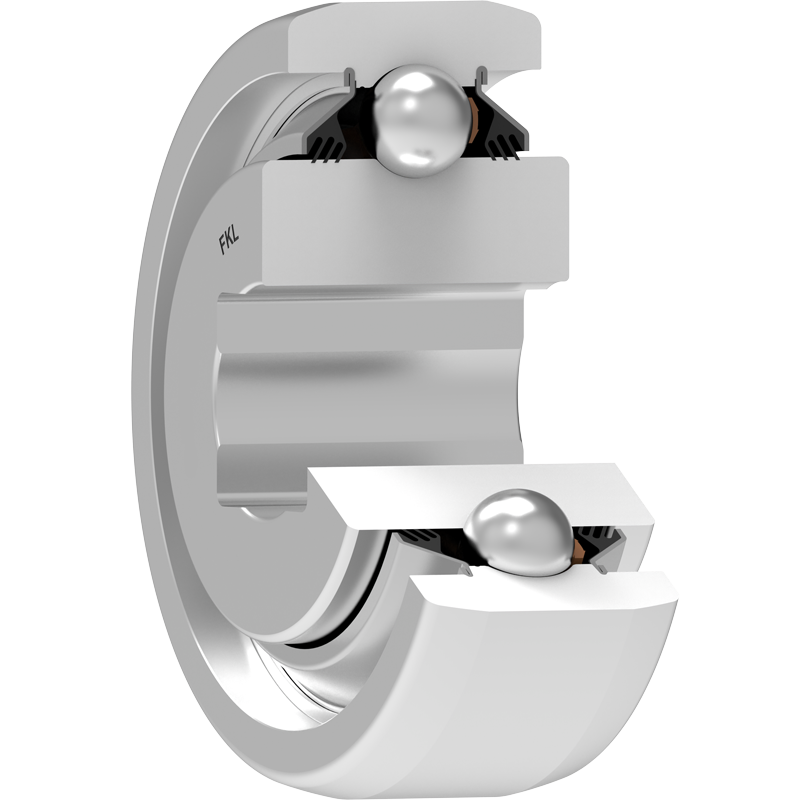

W 208PPB11 FKL

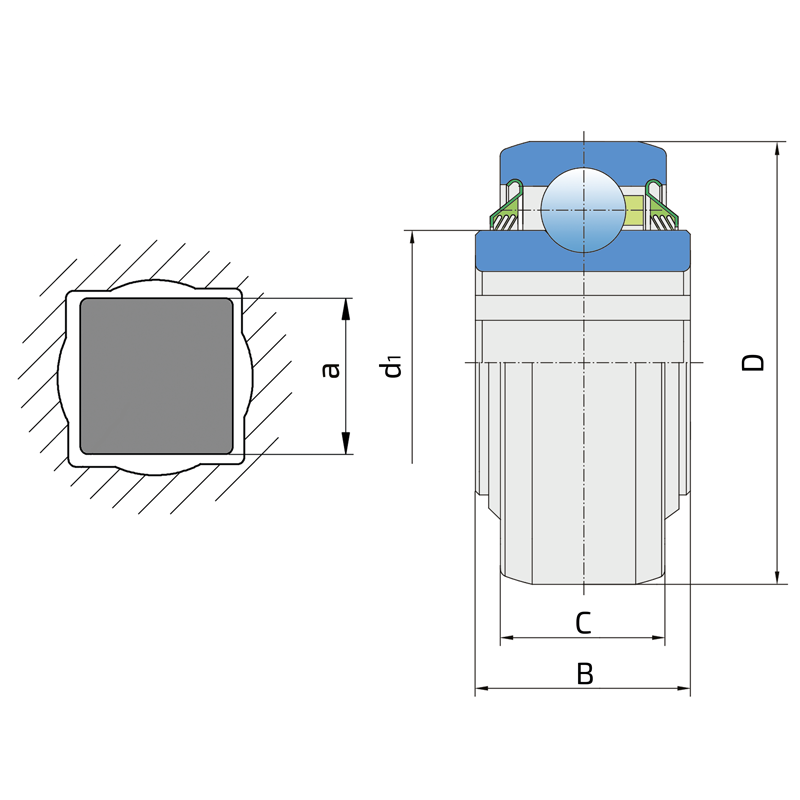

Technical datasheet:

D	Outside diameter	85.75
B	Width inner ring	36.5
C	Width outer ring	30.1
d1	Outer diameter inner ring	52
a	Shaft size	23
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
kg	Mass	1
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
4AS08-7/8	NTN
W208PPB11	INA
W208PPB11	FAFNIR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
