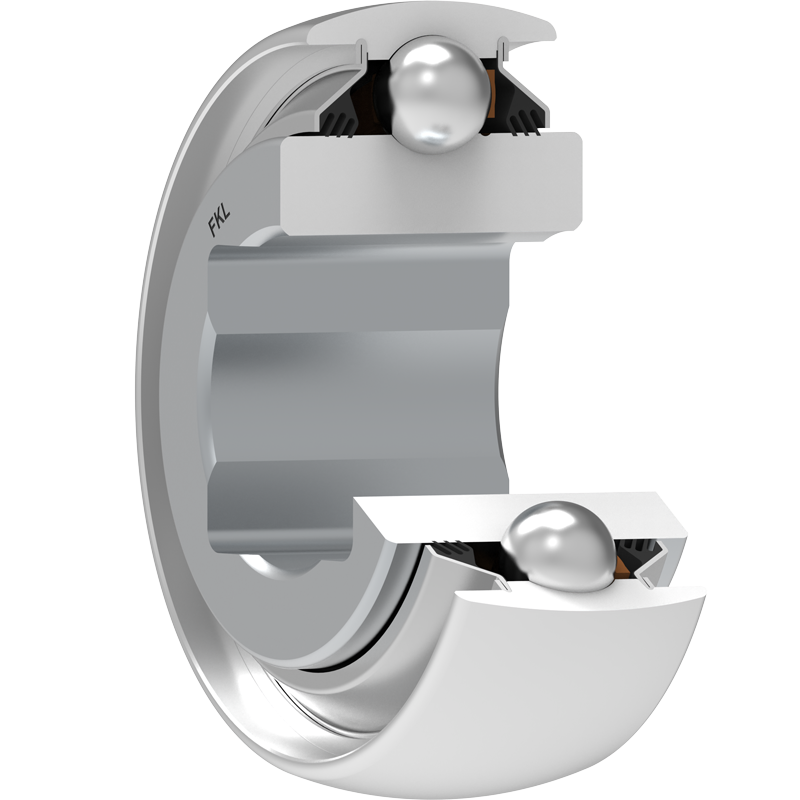

W 208PPB13 FKL

Technical datasheet:

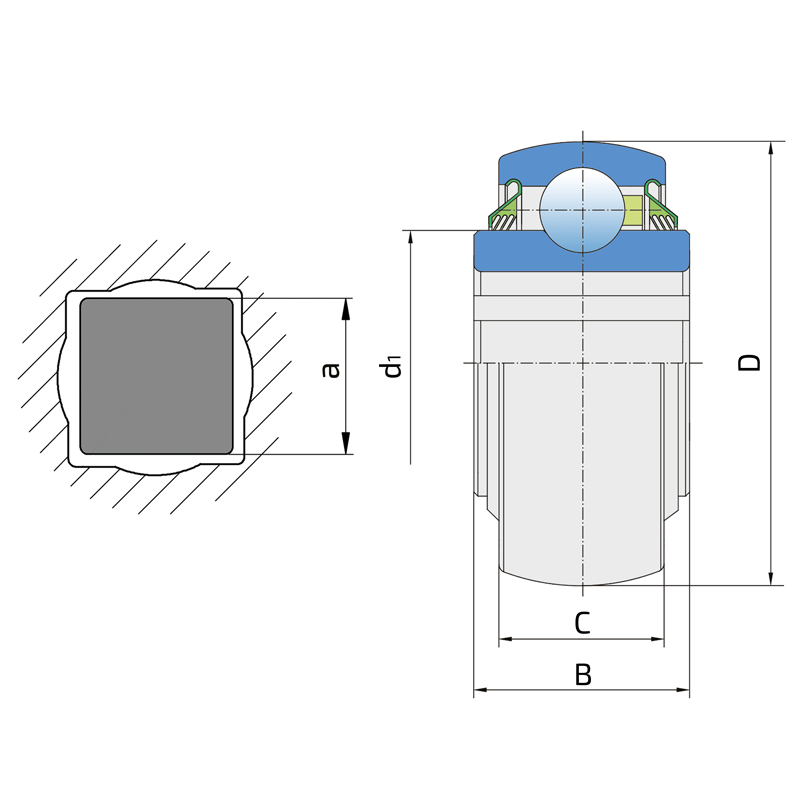

D	Outside diameter	80
B	Width inner ring	36.5
C	Width outer ring	18
d1	Outer diameter inner ring	52
a	Shaft size	22.2
kg	Mass	0.74
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
1AS08-7/8	NTN
DS208TT13	BCA
W208PPB13	INA
w208PPB13	FAFNIR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
