W 208PPB23 FKL

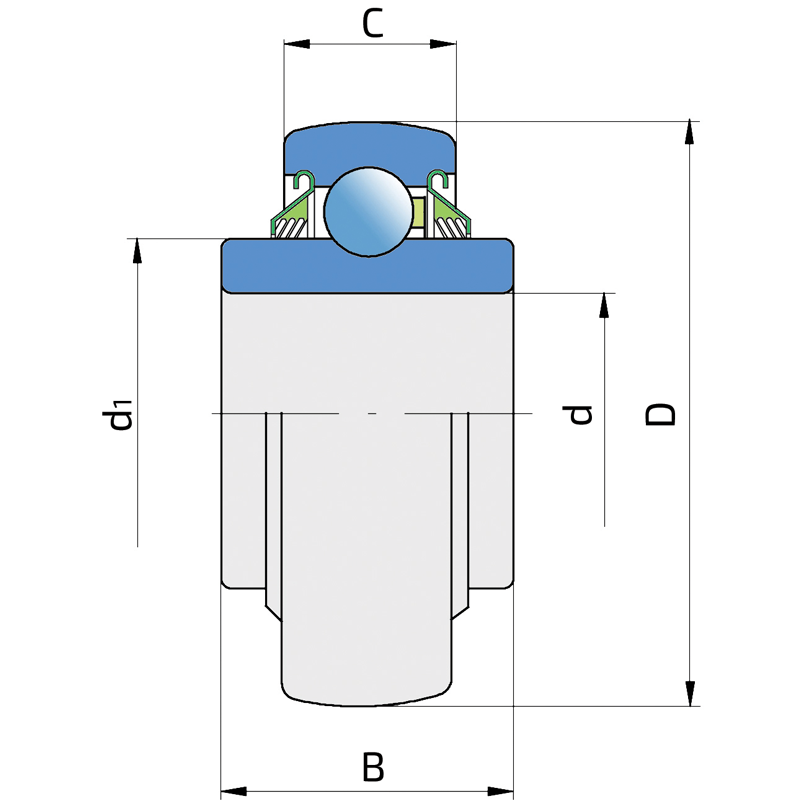

Technical datasheet:

d	Bore diameter	38.11
D	Outside diameter	80
B	Width inner ring	42.96
C	Width outer ring	30.1
d1	Outer diameter inner ring	52
kg	Mass	0.68
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
DS208TT2A	BCA
W208PPB23	INA
W208PPB23	FAFNIR
W208PPB23	TORRINGTON

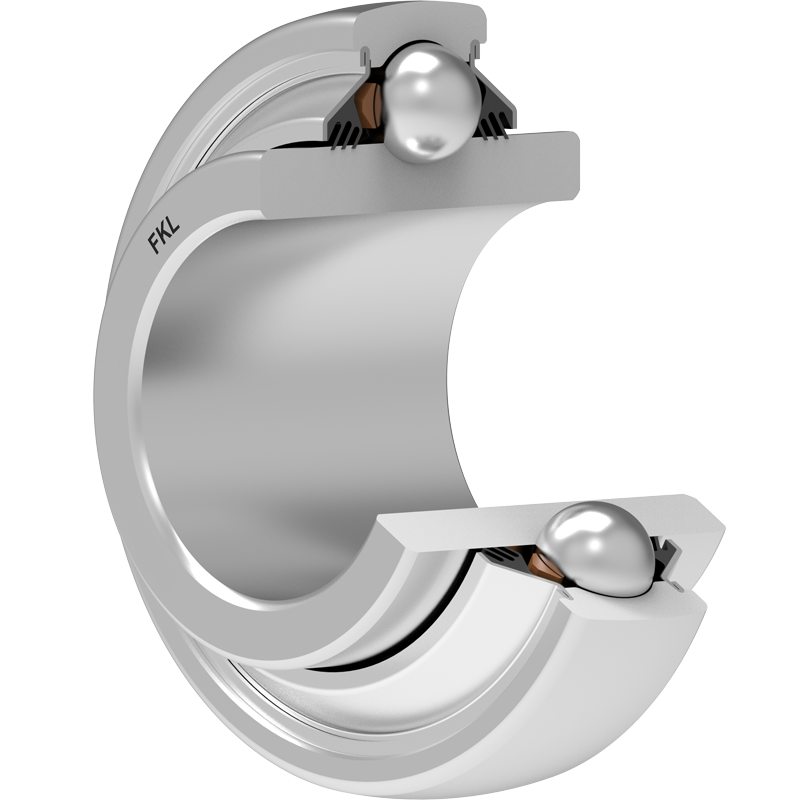

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
