W 208PPB4 FKL

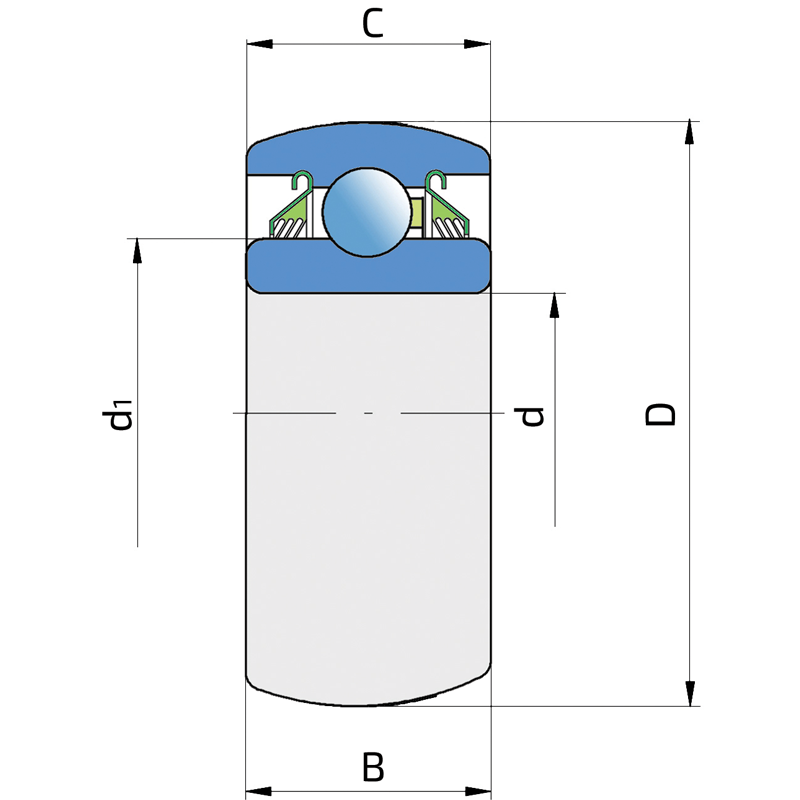

Technical datasheet:

d	Bore diameter	30.17
D	Outside diameter	80
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	52
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
kg	Mass	0.73
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
DS208TT4	BCA
W208PPB4	INA
W208PPB4	FAFNIR
W208PPB4	TORRINGTON

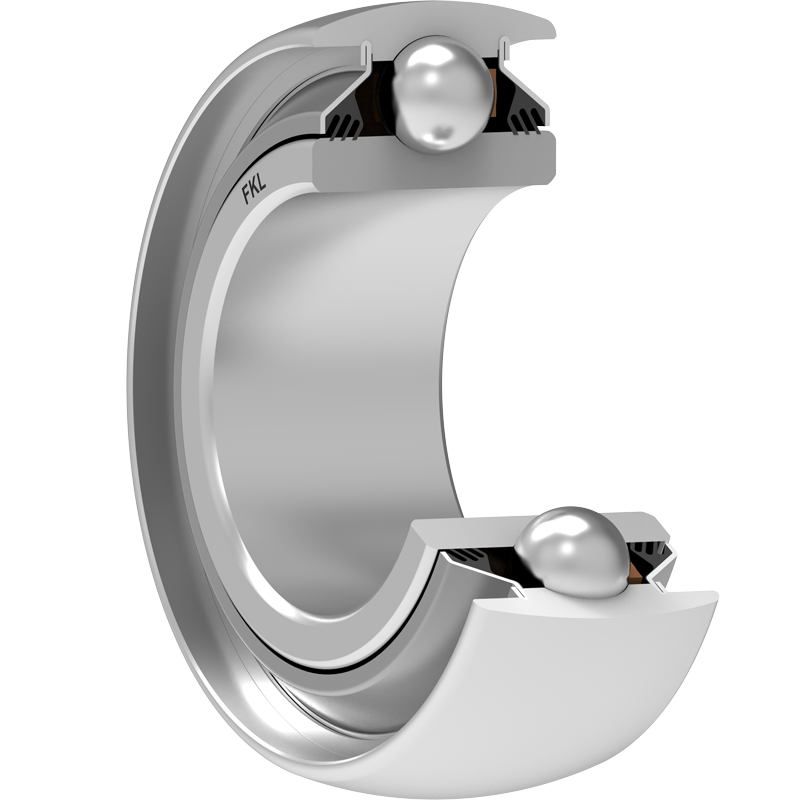

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
