W 208PPB5 FKL

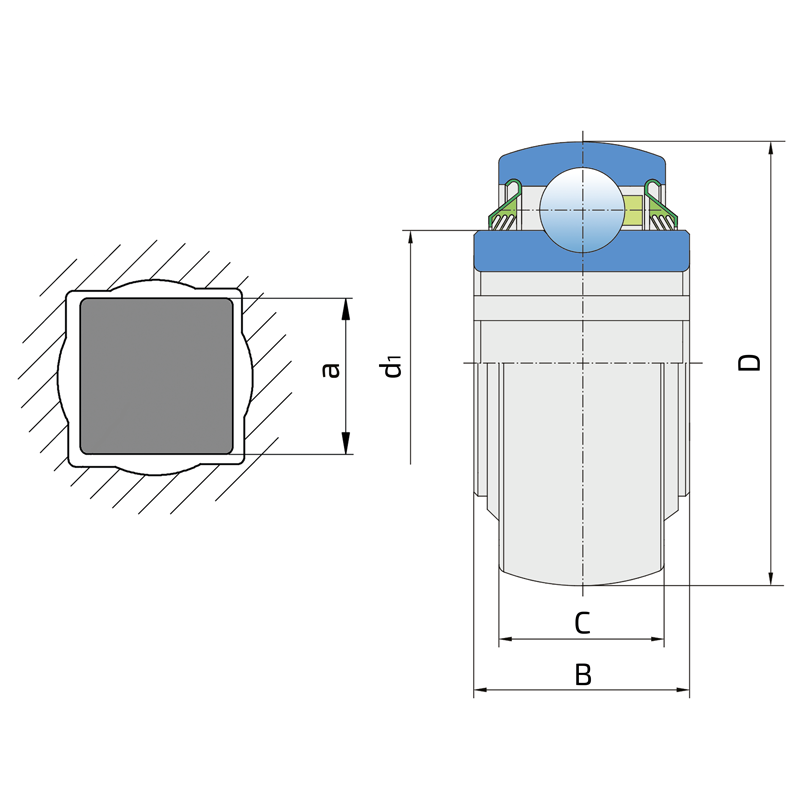

Technical datasheet:

D	Outside diameter	80
B	Width inner ring	36.5
C	Width outer ring	18
d1	Outer diameter inner ring	52
a	Shaft size	30
kg	Mass	0.67
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
18S5-2E08E3	LINK BELT
1AS08-11/8	NTN
DS208TT5	FEDERAL MOGUL
DS208TT5	BCA
G10272	KINZE
W208PPB5	PFI
W208PPB5	INA
W208PPB5	FAFNIR
W208PPB5	TORRINGTON

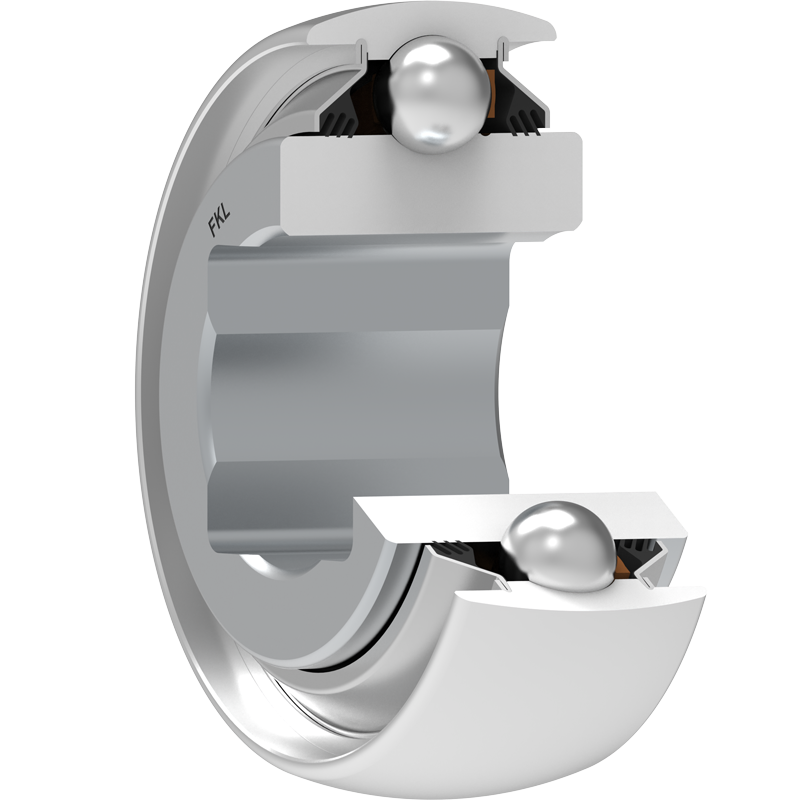

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
