W 208PPB9 FKL

Technical datasheet:

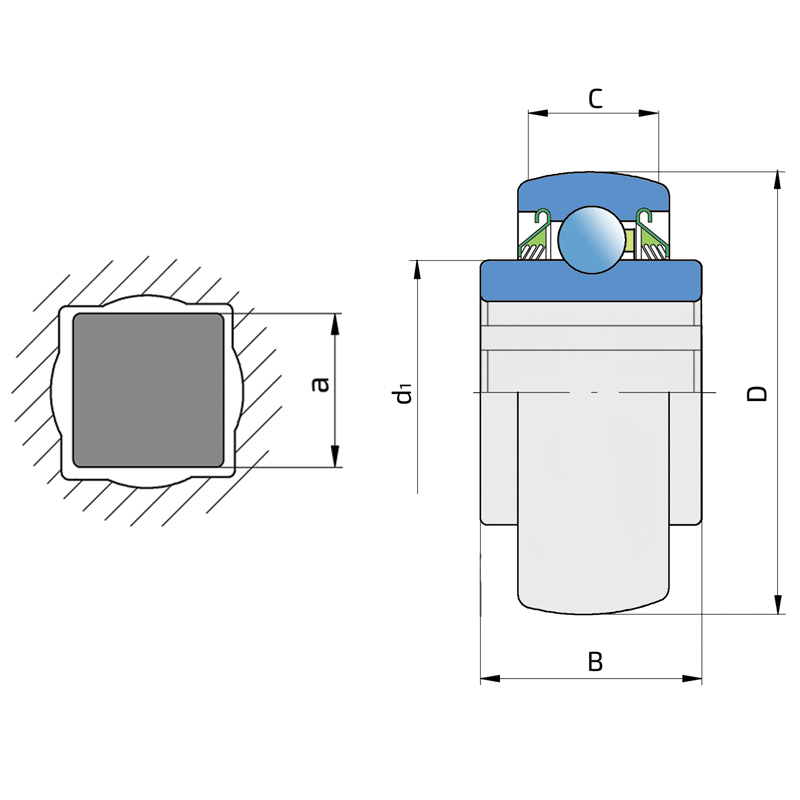

D	Outside diameter	80
B	Width inner ring	36.5
C	Width outer ring	30.18
d1	Outer diameter inner ring	52
a	Shaft size	25.4
kg	Mass	0.86
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
16S2-208E3	LINK BELT
2AS08-11/8	NTN
DS208TT9	FEDERAL MOGUL
DS208TT9	BCA
W208PPB9	FAFNIR
W208PPB9	TORRINGTON
W208PPB9	INA

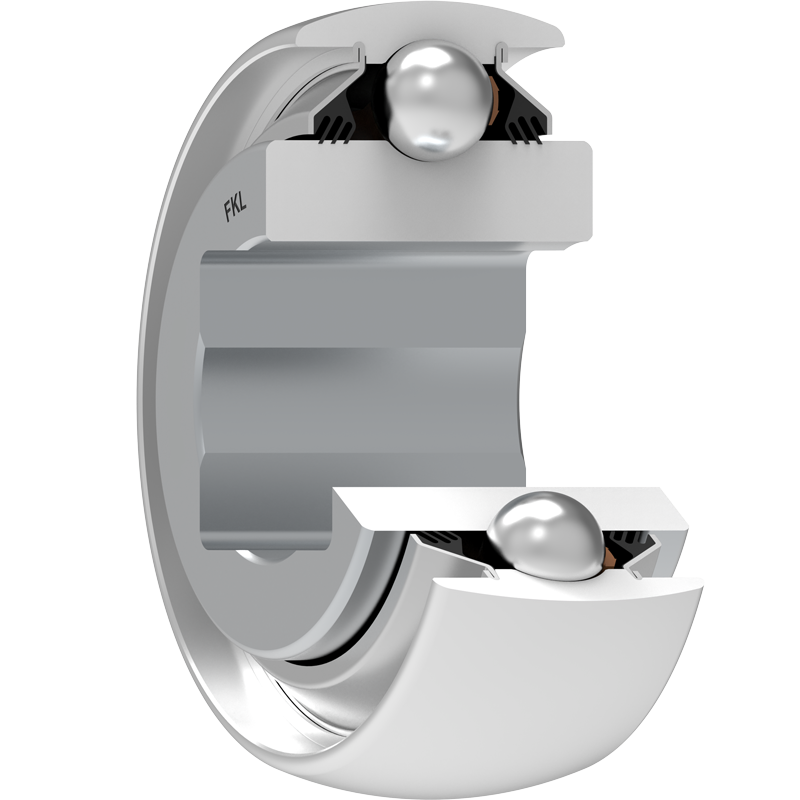

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
